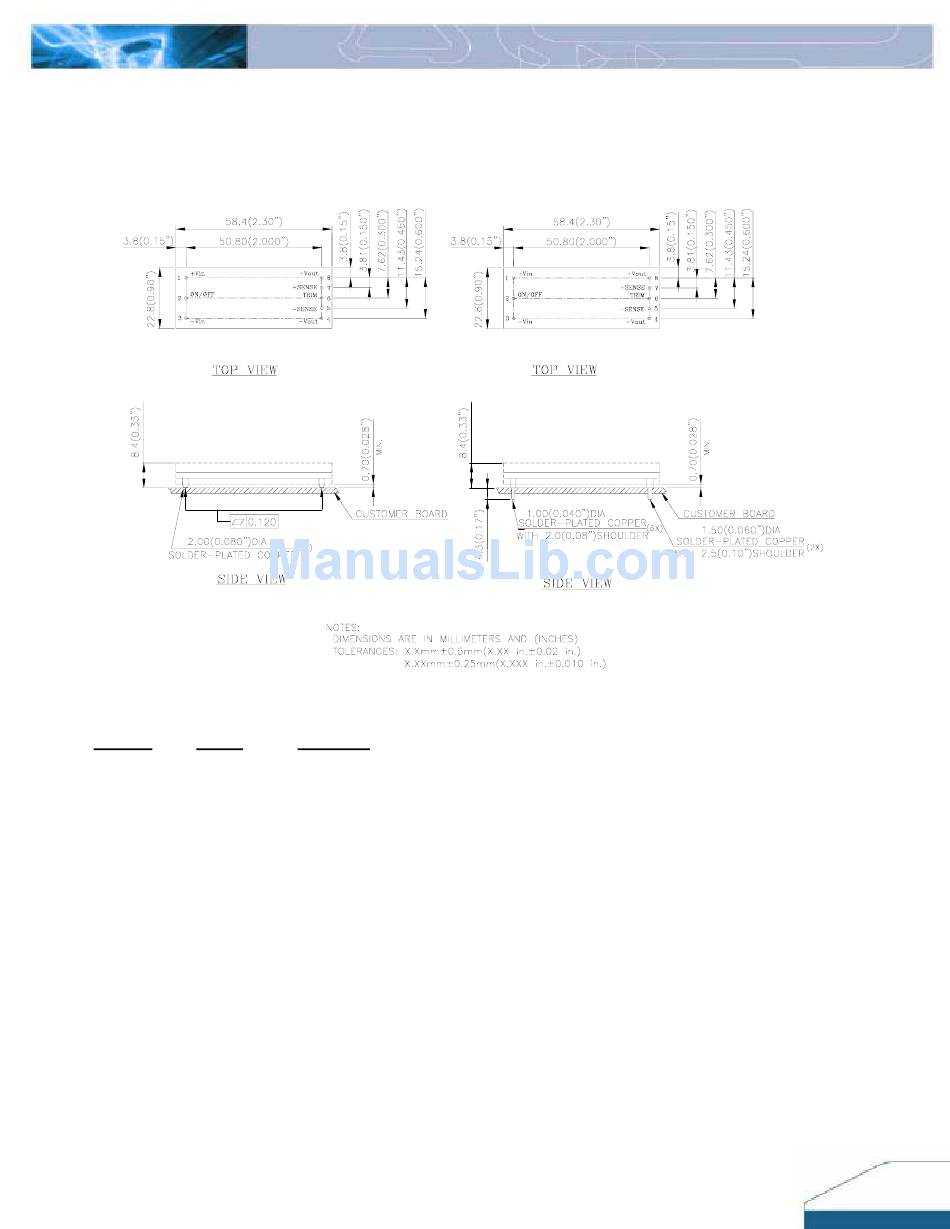

MECHANICAL DRAWING

Surface-mount module
Pin No. Name
1 +Vin
2 ON/OFF
3 -Vin
4 -Vout
5 -SENSE
6 TRIM
7 +SENSE
8 +Vout
DS_E48SR15004_05222008
Function
Positive input voltage
Remote ON/OFF
Negative input voltage
Negative output voltage
Negative remote sense
Output voltage trim
Positive remote sense
Positive output voltage
Through-hole module
