Delta Electronics E36SR Datasheet

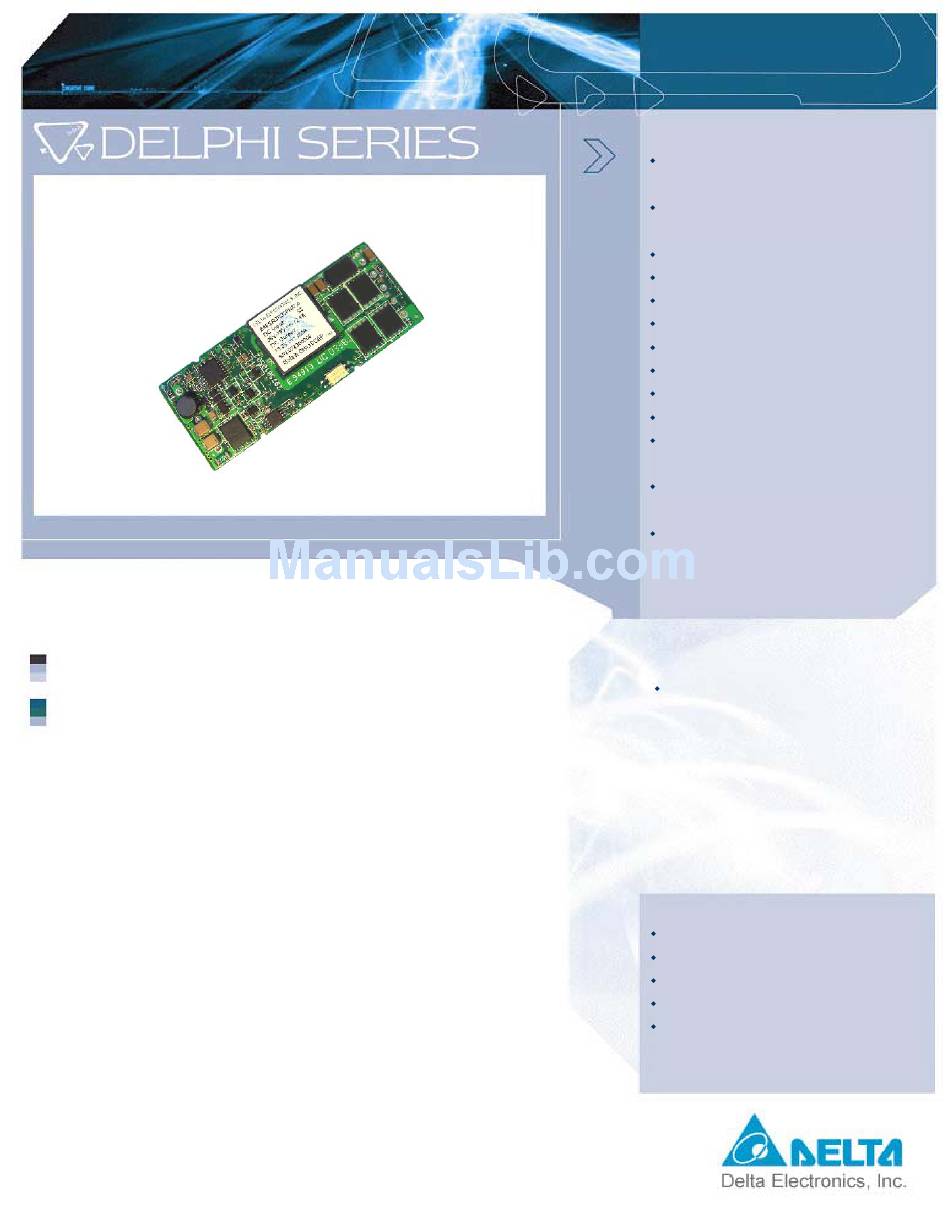

Delphi Series E36SR, 75W Eighth Brick Family
DC/DC Power Modules:
The Delphi Series E36SR Eighth Brick, 18~75V input, single output,
isolated DC/DC converter is the latest offering from a world leader in
power systems technology and manufacturing — Delta Electronics,
Inc. This product family operates from an extremely wide 18~75V
input range and provides 3.3V/20A or 5V/15A of power in an industry
standard eighth brick footprint and pinout. With creative design
technology and optimization of component placement, these
converters possess outstanding electrical and thermal performances,
as well as extremely high reliability under highly stressful operating
conditions. All models are fully protected from abnormal input/output
voltage, current, and temperature conditions. The Delphi Series
converters meet all safety requirements with basic insulation.
DATABRIEF
DB_E36SR_11292007
18~75V in, 3.3Vo & 5Vo
FEATURES
High efficiency:
89% @ 5V/ 15A and 89.5%@ 3.3V/20A
Size: 58.4mm x 22.8mm x 9.2mm
(2.30"x0.90"x0.36")
Industry standard pin out
18~75V extremely wide 4:1 input range
Fixed frequency operation
Input UVLO, Output OTP, OCP, OVP
2250V isolation
Basic insulation
No minimum load required
SMD and through-hole versions
ISO 9001, TL 9000, ISO 14001, QS 9000,
OHSAS 18001 certified manufacturing facility
UL/cUL 60950-1 (US & Canada)
Recognized, and TUV (EN60950-1) Certified
CE mark meets 73/23/EEC and 93/68/EEC
directives.
OPTIONS
Short pin lengths available
APPLICATIONS
Telecom / DataCom
Wireless Networks
Optical Network Equipment
Server and Data Storage
Industrial / Test Equipment
