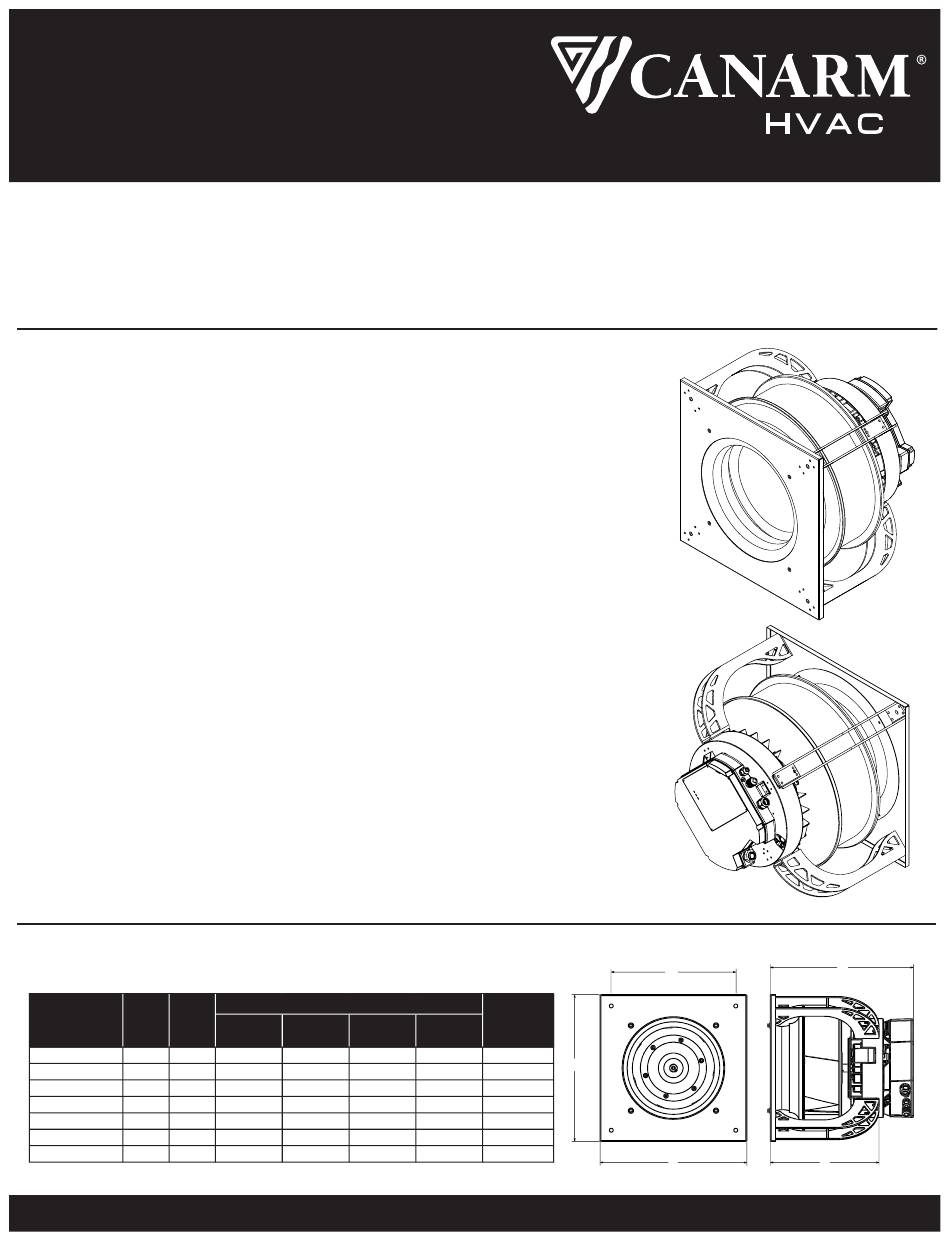

Canarm APL-DP-EC Series Operation Instructions And Parts Manual

APL-DP-EC SERIES
CANARM DIRECT DRIVE ARRAY
PLENUM FAN – INFINITUM AIRCORE
OPERATION INSTRUCTIONS AND PARTS MANUAL
READ AND SAVE THESE INSTRUCTIONS
The purpose of this manual is to aid in the proper installation and operation of the Canarm array Plenum Fan (APL). These instructions are intended
to supplement good general practices and are not intended to overwrite local codes and ordinances.
IT IS THE RESPONSIBILITY OF THE PURCHASER TO ASSURE THAT THE INSTALLATION AND MAINTENANCE OF THIS EQUIPMENT IS
HANDLED BY QUALIFIED PERSONNEL.
Inspect all shipments carefully for damage. THE RECEIVER MUST NOTE ANY DAMAGE ON THE CARRIER'S BILL OF LADING AND FILE A
CLAIM IMMEDIATELY WITH THE FREIGHT COMPANY.
GENERAL SAFETY
1. The APL EC series unit(s) comes with an onboard VFD.
2. All electrical work must be done in accordance with all applicable electrical codes by a
qualified electrician.
3. Prior to wiring the unit, ensure power supply is locked out in the OFF position, and voltage `
matches the motor's requirement.
4. Do not install or operate this fan in an environment where combustible materials, gases,
fumes. It is intended for well ventilated indoor industrial use only.
5. The motor should be easily accessed for cleaning and maintenance, do not obstruct its air
cooling inlets and outlets.
6. Caution: the unit contains rotating parts and electrical components. Use appropriate
caution when installing and servicing it.
7. Before starting the unit, ensure all parts are secure & the wheel rotates freely.
8. Check and tighten where necessary all nuts, bolts & set screws prior to unit start up (as
some may have loosened during shipment).
9. NOTE: Check and tighten all hardware after 2 days of initial operation.
10. Make sure there is no foreign debris in the fan compartment or lodged in the wheel itself.
11. It is the customers' responsibility to ensure the installation location is prepared and
adequate under local building codes to bear the weight of the mounted fan.
12. Inspect electrical components prior to completing electrical connections. Make sure
everything is tight and free of damage that may have occurred in shipping.
13. Always wear appropriate safety equipment when installing or servicing the unit.
14. Please follow all applicable national, state/provincial and local codes, all of them will
supersede this manual.
15. Failure to follow the safety instructions in this manual may cause serious injury or
death due to electrical shock or high speed rotating parts.
DIMENSION & COMPONENT
&7230 . 8
./0(-12/134 !"#!$%& !'#($)&
./0(512/134 !*& !(#($)&
./0(612/134 !-& !%#($)&
./0(,12/134 '!& !"#"$)&
./0-*12/134 '(#!$%& !,#($%&
./0--12/134 ',& !)#!$%&
./0-+12/134 '-#!$%& !-#*$)&
M-APL-DP-EC 03_12_24
4'94:.";3<'8.<32'7"'&7$7='<!>3?
!"#!"!$%&' !"#!"!$%&' !"#!"!$%&'
()* (+* (,*
!*#($)& + +
!)#($)& !)& +
!-#($)& !-& !-#!$)&
'.#"$)& '.#!$%& '.#($)&
'!#($%& '!#($)& '!#!$'&
'(#!$%& ''#*$)& '(&
'%#*$)& '%#!$'& '%#"$)&
&7%"$!";
!"#!"!$%&'
-*+
+ !!#!$%&
A
+ !'#!($!,&
+ !%#!($!,&
'.#!$%& !,#!($!,&
'!#($)& !-#!$!,&
''#*$)& '!#!($!,&
'%#!$'& ')#-$!,&
C C C
D
A
B
Page 1 of 4
