LYCAN Pro 5000
Power Box
RPB4850OA-48LFPA1SS
VERSION A0
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LYCAN Pro 5000 Power Box and is the answer not in the manual?

Questions and answers

Related Manuals for Renogy LYCAN Pro 5000 Power Box

Summary of Contents for Renogy LYCAN Pro 5000 Power Box

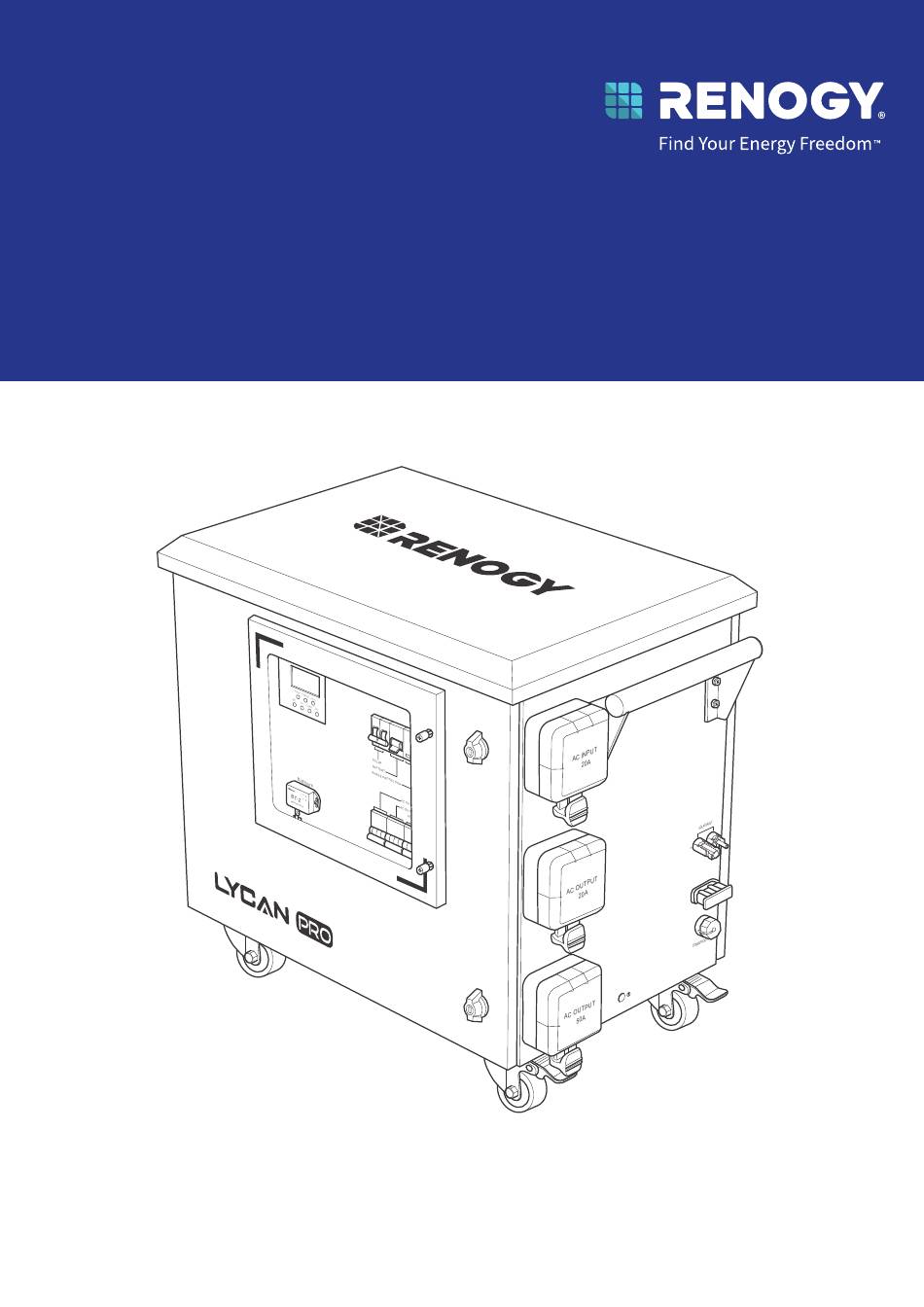

  • Page 1 LYCAN Pro 5000 Power Box RPB4850OA-48LFPA1SS VERSION A0 USER MANUAL...

  • Page 2: Before Getting Started

    The illustrations in the user manual are for demonstration purposes only. Details may appear slightly different depending on product revision and market region. z Renogy reserves the right to change the information in the user manual without notice. For the latest user manual, visit renogy.com.

  • Page 3: Table Of Contents

    1.4. Multiple protection functions ........................2 1.5. General Safety Information ........................3 1.6. SKU ................................3 Get to Know LYCAN Pro 5000 Power Box ..................4 2.1. What’s In the Box? ............................4 2.2. Recommended Tools ..........................4 2.3. Product Overview ............................5 2.4.
  • Page 4 14.4. Serviceable Parts ............................. 52 15. Maintenance ............................54 15.1. Inspection ..............................54 15.2. Cleaning ..............................54 15.3. Storage ............................... 54 16. Emergency Responses ........................55 16.1. Fire ................................55 16.2. Flooding ..............................55 16.3. Smell ................................55 16.4. Noise ................................55 Renogy Support ............................56...

  • Page 5: General Information

    Equipped with a Bluetooth module, the LYCAN Pro Provides access to real-time monitoring on the Renogy DC Home app. It can also be easily expanded to up to 19.2kWh with Renogy 48V 50Ah Smart Lithium Iron Phosphate Batteries, covering any applications from short term blackout protection to long term off-grid living.

  • Page 6: Multiple Protection Functions

    Bluetooth Embedded Comes with a Bluetooth module for real-time operation status monitoring via the Renogy DC Home app. z Designed For Outdoor Withstands harsh outdoor environments with rain cap, rubber seals, and rugged enclosure. z Excellent Serviceability Makes repair and maintenance simple with replaceable components.

  • Page 7: General Safety Information

    Ensure that snow does not accumulate around LYCAN Pro. z DO NOT lean on, stack anything on top of, or hang anything from LYCAN Pro or from cables leading to LYCAN Pro. 1.6. SKU LYCAN Pro 5000 Power Box RPB4850OA-48LFPA1SS — 3 —...

  • Page 8: Get To Know Lycan Pro 5000 Power Box

    Get to Know LYCAN Pro 5000 Power Box 2.1. What’s In the Box? LYCAN Pro 5000 Power Box RPB4850OA-48LFPA1SS VERSION A0 LYCAN Pro 5000 Power Box × 1 QUICK GUIDE Quick Guide × 1 Keys × 2 Handle Bar × 1 RJ45 Plug Waterproof Housing×...

  • Page 9: Product Overview

    2.3. Product Overview Part Part Solar Inverter Charger Display Bluetooth Module (Including Indicators and Buttons) Solar Input Circuit Breaker AC Output Circuit Breaker (20A) Battery Circuit Breaker AC Output Circuit Breaker (50A) Surge Protection Device AC Input Circuit Breaker (20A) Front Door Locks AC Outlet (50A) AC Inlet (20A)
  • Page 10 Part Part Gray Anderson 120 Connector Solar Connector (Including Dust Cover) RJ45 Jack Handle Bar (Pre-Installed) (Including Waterproof Housing) Back Door Locks Vent Cover Handle Bar (Installation Required) Swivel Casters Grounding Hole — 6 —...

  • Page 11: System Setup

    AC INPUT AC OUTPUT SOLAR INPUT 1 EXPANSION AC OUTPUT COMMUNICATION 48V 50AH BATTERY AC Output AC Output Renogy 48V 50Ah (20A Maximum) (3500W Maximum Before Smart Lithium Iron Battery Expansion; Phosphate Battery 5000W Maximum After Battery Expansion) — 7 —...

  • Page 12: Installation

    INFORMATION please ensure that your changer is lithium lron phosphate compatible before use. For more information, please visit www.renogy.com c 87.7111 le, crush,puncture, or incinerate the battery. it the external contacts.

  • Page 13: Installation

    DO NOT use LYCAN Pro if the batteries inside appear damaged. Please close the back door, rotate the wing knobs clockwise by 90° , and lock the Back Door Lock after inspecting the batteries inside LYCAN Pro. 3.2. Installation 1. Find the Handle Bar and the Handle Bar Screws under LYCAN Pro.
  • Page 14 LYCAN Pro is heavy and can cause injury if not handled properly. Please ensure that the Handle Bar is installed firmly on LYCAN Pro before lifting. 5. Release the Pedal Brakes on Swivel Casters. Move LYCAN Pro to a proper installation location. If transporting the Swivel Casters over wet surfaces, ensure water is not deeper than 2 inches (50.8mm).

  • Page 15: Environment Requirements

    Please secure the grounding cable connections to the proper specification. Please use a 4AWG or larger grounding cable. 3.3. Environment Requirements LYCAN Pro shall be installed at ground level on a flat surface. Ensure that the installation environment is clean, cool, ventilated, and away from oil, dirt, and direct sunlight. Allow at least 1 foot (0.3 m) of space behind the Vent Cover for efficient heat dissipation.

  • Page 16: Turning On

    Turning On LYCAN Pro is off when it leaves the factory. Turn LYCAN Pro on before charging it or using it to power appliances. 1. Open the Front Door Locks with the included Keys and rotate the wing knobs counterclockwise by 90° to open the front door. 2.
  • Page 17 1 second to turn on the batteries. INFORMATION please ensure that your changer is lithium lron phosphate compatible before use. For more information, please visit www.renogy.com c 87.7111 le, crush,puncture, or incinerate the battery. it the external contacts.

  • Page 18: Charging

    Charging LYCAN Pro supports both AC charging and solar charging, which can be combined for a faster charging speed. 5.1. AC Charging 1. Connect LYCAN Pro to a wall outlet or a generator (not included) with the included Power Cable. 20A AC Outlet The wall outlet or the outlet on the generator MUST be rated at 20A.

  • Page 19: Solar Charging

    4. The Solar Inverter Charger Display shows that the battery is being charged by AC, and the Solar Inverter Charger CHARGE INPUTBATT OUTPUTBATT Indicator flashes green. BYPASS 100% AC/INV CHARGE FAULT DOWN Please close the Viewing Window and tighten the captive screws after LYCAN Pro starts charging. 5.2.
  • Page 20 3. Push the switch up to close the corresponding Solar Input Circuit Breaker. SOLAR BATTERY SURGE PROTECTION 4. The Solar Inverter Charger Display shows that the battery is being charged by solar, and the Solar Inverter Charger CHARGE INPUT OUTPUT Indicator flashes green.

  • Page 21: Powering Appliances

    Powering Appliances LYCAN Pro can power appliances at temporary sites, in permanent off-grid homes, and during emergencies with Power Strips, AC Load Centers, and Transfer Switches respectively. Please refer to the corresponding instructions based on actual applications. Please fully charge LYCAN Pro prior to first use. 6.1.
  • Page 22 3. Push the switch up to close the corresponding AC Output 20A AC Output Circuit Breaker Circuit Breaker. AC OUTPUT 20A AC OUTPUT 50A AC INPUT 50A AC Output Circuit Breaker AC OUTPUT 20A AC OUTPUT 50A AC INPUT 4. The Solar Inverter Charger AC/INV Indicator lights up yellow Powered by Bypass AC when the appliances are powered by bypass AC.

  • Page 23: Off-Grid Living

    6.2. Off-Grid Living If long-range communication and programming are required, connect the inverter charger to Renogy ONE (sold separately) through Bluetooth, and the Renogy ONE to the DC Home app through Wi-Fi. Recommended Accessories AC Load Center and NEMA 5-50P to Bare Wire...
  • Page 24 3. Size AC Circuit Breakers (not included) based on the current ratings and types of the appliances. Install the AC circuit Breakers in the AC Load Center. Connect the appliances to the AC Load Center. The black live wires go to AC Circuit Breakers, the white neutral wires go to the neutral busbar (N), and the green ground wires go to the grounding busbar (PE).
  • Page 25 6. Loosen the captive screws to open the Viewing Window. 7. Push the switch up to close the 50A AC Output Circuit Breaker. AC OUTPUT 20A AC OUTPUT 50A AC INPUT 8. The Solar Inverter Charger AC/INV Indicator lights up yellow Powered by Bypass AC when the appliances are powered by bypass AC.

  • Page 26: Emergency Backup

    6.3. Emergency Backup Recommended Accessories Reliance Controls 506A Pro/ NEMA 5-50P to CS6364C Tran 2 Manual Transfer Switch Adapter Cable METER 1 METER 2 LINE LINE For a safe and reliable installation, it is recommended that the installation be carried out by a trained and licensed electrician.
  • Page 27 4. Find the red and black Branch Circuit C Wiring Diagram wires from the Transfer Switch that are marked C, D, E, and F. Connect the red wires to the METER 1 METER 2 selected AC branch circuit breakers. Insert LINE LINE the black wires marked...
  • Page 28 METER 1 METER 2 7. Replace the cover to the Transfer Switch. Run the bare wires inside the Transfer Switch through the power inlet mounting hole. Connect the bare wires to the power inlet (included in the LINE LINE Transfer Switch). The green ground wire goes to the G terminal, the white neutral wire goes to the W terminal, the black and red live wires go to the X and Y terminals.
  • Page 29 11. Twist the receptacle end of the Adapter Cable clockwise to lock it into place. METER 1 METER 2 LINE LINE 12. Loosen the captive screws to open the Viewing Window. 13. Push the switch up to close the 50A AC Output Circuit Breaker. AC OUTPUT 20A AC OUTPUT 50A AC INPUT...
  • Page 30 15. During an emergency, determine the circuits to be powered by LYCAN Pro, and move the corresponding circuit selector switches on the Transfer Switch to the GEN position. METER 1 METER 2 LINE LINE 16. The Solar Inverter Charger Display shows that the appliances are powered by LYCAN Pro, and the Solar Inverter Charger AC/ INPUT INV Indicator flashes yellow.

  • Page 31: Bluetooth Pairing

    90° to open the back door. 2. Locate the communication hub. INFORMATION For more information, please visit www.renogy.com c please ensure that your changer is lithium lron phosphate compatible before use. le, crush,puncture, or incinerate the battery.
  • Page 32 4. Open the DC Home app, Tap "+" to search for new devices. Wait for a few minutes until a new device is found. Tap "Confirm" to My Renogy HUB Mode add the newly found device to the device list.
  • Page 33 8. Swipe down to refresh the device list. My Renogy My Renogy Sunny 46°F~66°F °C °F Sunny 46°F~66°F °C °F Can be used for Can be used for Device Device Battery Inverter Battery Inverter RBT50LFP48S RINVTPCL12011 RBT50LFP48S RINVTPCL12011 BT-TH-F2629887 BT-TH-F2629887...

  • Page 34: Checking Solar Inverter Charger Operation Status

    Checking Solar Inverter Charger Operation Status 8.1. Operations 1. Loosen the captive screws to open the Viewing Window. 2. The Solar Inverter Charger Display and Indicators indicate the operation status of the solar inverter charger. 3. Press the Solar Inverter Charger UP and DOWN Buttons to turn the page and view detailed operation information.
  • Page 35 Symbol Description Indicates that the solar inverter charger is connected to the solar arrays Indicates the battery level of LYCAN Pro 0%-24% 25%-49% 50%-74% 75%-100% Indicates that LYCAN Pro is being charged Indicates that the charger circuit of the solar inverter charger is active Indicates that the inverter circuit of the solar inverter charger is active Indicates that the solar inverter charger is supplying AC voltage Indicates the load level of LYCAN Pro...
  • Page 36 Symbol Description Indicates that the loads are powered by bypass AC Indicates that the buzzer of the solar inverter charger is disabled Indicates that the solar inverter charger is in warning mode Indicates that the solar inverter charger is in fault mode Indicates that the solar inverter charger is in parameter setting mode Indicates the error code when the solar inverter charger is not in parameter setting mode...

  • Page 37: Display Menu

    8.3. Display Menu Page Left Information Middle Information Right Information Battery Voltage AC Output Voltage Solar Charger Temperature Solar Output Power Solar Input Voltage Solar Output Current Battery Charge Current Battery Discharge Current Battery Charge Power Battery Discharge Power AC Input Frequency AC Output Frequency AC Input Voltage AC Output Current...

  • Page 38: Indicator Description

    3. The screen may be in sleep mode. Press any key to activate it. 4. If the screen of the solar inverter charger is damaged, please visit renogy.com/contact-us for technical support. 1. Ensure that the Battery Circuit Breaker, AC Output Circuit Breaker (20A), and AC Output Circuit Breaker (50A) are in the upward closed position.
  • Page 39 120V. 3. Ensure that there are no loose, reversed, or damaged connections in the external circuit. 4. Confirm that program 6 is set to SNU, CUB, or CSO. For technical support, contact our technical service through renogy.com/contact-us. — 35 —...

  • Page 40: Checking Battery Operation Status

    2. The indicators on the top of the batteries indicate the operation status of the batteries. INFORMATION please ensure that your changer is lithium lron phosphate compatible before use. For more information, please visit www.renogy.com c 87.7111 le, crush,puncture, or incinerate the battery. it the external contacts.

  • Page 41: Parameter Settings

    10. Parameter Settings The solar inverter charger is preset to operate with the batteries. While no additional programming is required, some parameters can be modified for specific applications. 10.1. Operations 1. Loosen the captive screws to open the Viewing Window. 2.
  • Page 42 5. Press the UP and DOWN Buttons to set the parameter. 6. Press the ENT Button to confirm the setting. 7. Press the SET Button to exit the parameter setting mode. — 38 —...

  • Page 43: Setting Menu

    10.2. Setting Menu Modifying the parameters outside the specified range can lead to irreversible damage to LYCAN Pro and voids the warranty. Parameter Parameter Name Default Setting Instructions Code Exit the parameter setting mode. Exit UTI: Utility Priority Power Supply. When the utility power source is unavailable, the LYCAN Pro system automatically switches to battery...
  • Page 44 Parameter Parameter Name Default Setting Instructions Code SNU: Solar Array and Utility Mixed Charging. The system prioritizes charging from the solar array. When the solar array cannot provide sufficient power, the utility source starts charging. Note: Solar array and utility can only perform mixed charging when there is a load connected.
  • Page 45 Parameter Parameter Name Default Setting Instructions Code Equalization Charging Modification Not Allowed Enablement DIS: Disable energy-saving mode. ENA: Enable energy-saving mode. When the load power is very low, Power Saving Mode the power supply will automatically shut off after a certain delay. To restore power supply, simply turn off and then turn on the solar inverter charger.
  • Page 46 Parameter Parameter Name Default Setting Instructions Code DIS: Disable automatic switching to utility power supply during overload. Overload Bypass ENA: Enable automatic switching to utility power supply during overload. Maximum AC Charging The setting range for this parameter Current is 0A to 40A. Split Phase Modification Not Allowed RS485 Address...

  • Page 47: Turning Off

    11. Turning Off If LYCAN Pro is not going to be used for a long time, and neither solar nor AC power are available to keep LYCAN Pro topped off, turn LYCAN Pro off to prevent it from overdischarging. 1. Disconnect all the cables from LYCAN Pro.
  • Page 48 5. Open the Back Door Locks with the included Keys and rotate the wing knobs counterclockwise by 90° to open the back door. 6. Press and hold the power button on the top of the upper battery for 3-5 seconds to turn off the batteries. 7.

  • Page 49: Capacity Expansion

    Ring Terminal Adapter Cable Battery Cables Ethernet Cables ONLY connect Renogy 48V 50Ah Smart Lithium Iron Phosphate Batteries to LYCAN Pro for capacity expansion. Connecting other brands or models of batteries to LYCAN Pro can damage LYCAN Pro and/or the Batteries.
  • Page 50 2. Connect the UP communication ports of the latter Batteries to the LINK communication ports of the former one with the Ethernet Cables (not included). LINK Please use CAT5 or above Ethernet Cables. 3. Remove the Dust Cover of the Anderson Connector. 4.
  • Page 51 Please use CAT5 or above Ethernet Cables. 6. Connect the UP communication port of the first Battery to the RJ45 Jack of LYCAN Pro with the Ethernet Cable. 7. Screw the RJ45 Plug Waterproof Housing into the Waterproof Housing of the RJ45 Jack. Please repeat the Bluetooth Pairing procedures to pair the newly connected Batteries with the DC Home app.

  • Page 52: Temperature Conditioning

    13. Temperature Conditioning 13.1. Cooling Fan The fans are located at the bottom of LYCAN Pro. They start operating when the temperature of the air vent rises above 131°F (55°C) and stop operating when the temperature of the air vent drops below 113°F (45°C).

  • Page 53: Dimensions & Specifications

    14. Dimensions & Specifications 14.1. Dimensions 20.61in 32.86in [523.6mm] [834.7mm] 19.74in 28.74in [501.5mm] [730.0mm] 2.06in [52.3mm] 1.97in [50.0mm] 28.55in [725.3mm] 4.17in [106.0mm] Dimension tolerance: ±0.2 in (0.5 mm) 14.2. Technical Specifications General Dimensions 32.9 x 20.0 x 28.5 in / 835 x 508 x 724 mm Weight 264.6 lbs.
  • Page 54 Bluetooth Range 82 ft. / 25 m Self Consumption 25W (Power Saving Mode) Enclosure Security Keyed Cam Lock Installation Environment Indoor / Outdoor Protection Rating IP55 Cooling Method Battery Battery Type Lithium Iron Phosphate Nominal Battery Voltage 48VDC Rated Battery Capacity 100Ah Rated Battery Energy 4.8kWh...

  • Page 55: Circuit Diagram

    14.3. Circuit Diagram Positive Busbar Grounding Busbar Negative Busbar Surge Protection Device Anderson Connector RJ45 Jack Battery Circuit Breaker Solar Input Circuit Breaker BT-2 Bluetooth Module Solar Connector Communication Hub Thermostat 48V 50Ah Smart 48V 5000W Lithium Iron Solar Inverter Phosphate Battery Charger AC Output Circuit Breaker (20A)

  • Page 56: Serviceable Parts

    14.4. Serviceable Parts Part Number Description RIV4850HCS-1SS 48V 5000W Solar Inverter Charger RBT50LFP48S 48V 50Ah Smart Lithium Iron Phosphate Battery RCM-BT2 BT-2 Bluetooth Module RCM-HUB Communication Hub 2.16.0032 125A 1P Battery Circuit Breaker 2.16.0036 32A 1P Solar Input Circuit Breaker 2.16.0037 20A 2P AC Input/Output Circuit Breaker 2.16.0038...
  • Page 57 Part Number Description 2.16.0077 10AWG 270mm 30A AC Outlet to Grounding Busbar Cable (Yellow Green) 2.16.0078 10AWG 300mm 20A AC Input Circuit Breaker to 20A AC Inlet Cable (Red) 10AWG 300mm 20A AC Input Circuit Breaker to 20A AC Inlet Cable 2.16.0079 (Black) 2.16.0080...

  • Page 58: Maintenance

    15. Maintenance 15.1. Inspection For optimum performance, it is recommended to perform these tasks regularly. z Examine the external appearance of LYCAN Pro. The enclosure and connector contacts of LYCAN Pro shall be clean, dry, and free of corrosion. z Check the external cables and connections. Replace any damaged cables and tighten any loose connections.

  • Page 59: Emergency Responses

    16. Emergency Responses In the event of any threat to health or safety, always begin with the steps below before addressing other suggestions. z Immediately contact the fire department or other relevant emergency response team. z Notify all people who might be affected and ensure that they can evacuate the area. Only perform the suggested actions below if it is safe to do so.

  • Page 60: Renogy Support

    Questionnaire Investigation To explore more possibilities of solar systems, visit Renogy Learning Center at: renogy.com/learning-center For technical questions about your product in the U.S., contact the Renogy technical support team through: renogy.com/contact-us 1(909)2877111 For technical support outside the U.S., visit the local website below: Canada ca.renogy.com...

  • Page 61: Fcc Radiation Exposure Statement

    FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 62 Save 105 gallons of water from being consumed Renogy Power PLUS Renogy Power Plus allows you to stay in the loop with upcoming solar energy innovations, share your experiences with your solar energy journey, and connect with like-minded people who are changing the world in the Renogy Power Plus community.
