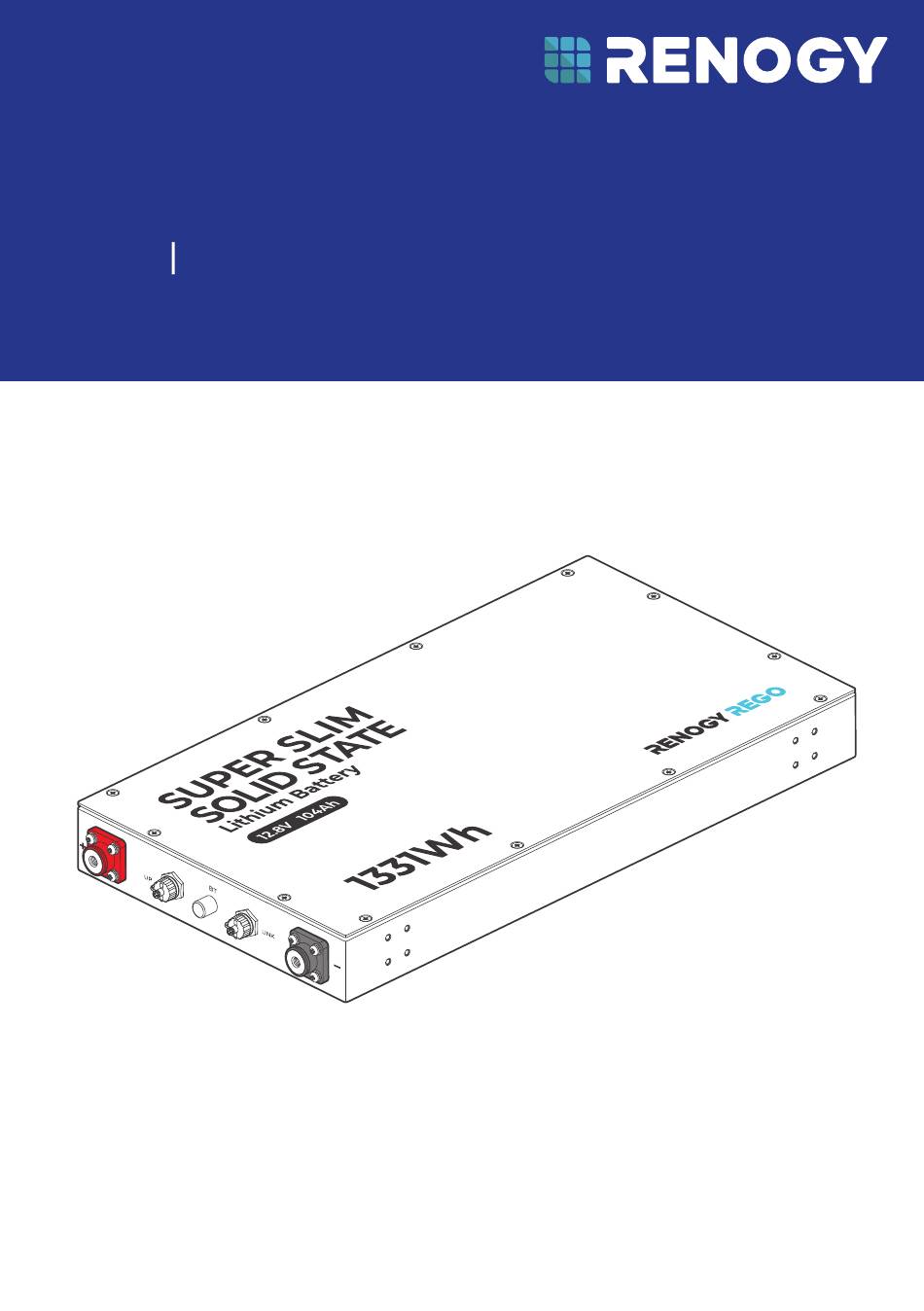

- Page 1 RENOGY REGO Series Super Slim Solid State Lithium Battery 12.8V 104Ah VERSION A2 RBT12104LFP-SSL-BT-G1 January 9, 2025 USER MANUAL...
-
Page 2: Before Getting Started
Renogy is not responsible or liable for any failure, damage, or injury resulting from repair attempts by unqualified personnel, improper installation, or inappropriate operation. -
Page 3: Table Of Contents
Step 7. CAN Communication Wiring (Optional) ................8 Inter-Battery Communication ........................8 Communication with Renogy Power Supply and Monitoring Devices ..........9 How to Connect Batteries in Series or Parallel ................13 Calculate Battery Voltage and Current in Series and Parallel Connections ........13 Balance Batteries Prior to Connection .................... - Page 4 Battery Management System ....................... 21 Troubleshooting..........................23 Specifications ..........................24 General .................................24 Operation Parameters ..........................24 Maintenance & Storage ........................25 Inspection ..............................25 Cleaning ...............................25 Checking Voltage ............................25 Storage .................................25 Important Safety Instructions......................26 General .................................26 Battery Safety .............................26 Renogy Support ..........................27 Battery Recycling ...........................28...
-
Page 5: Symbols Used
NOTE: Indicates an important step or tip for optimal performance. Introduction The RENOGY REGO Series 12.8V 104Ah Super Slim Solid State Lithium Battery adopts a proprietary battery housing material in a smaller size for your RV application. Weighing only half of the lead-acid counterparts, the battery can be safely discharged to 100% Depth of Discharge (DOD), delivering twice the energy. -
Page 6: Sku
RENOGY REGO Series 12.8V 104Ah RBT12104LFP-SSL-BT-G1 Super Slim Solid State Lithium Battery What’s In the Box? RENOGY REGO Series Super Slim Solid State Lithium Battery 12.8V 104Ah VERSION A2 RBT12104LFP-SSL-BT-G1 January 9, 2025 RENOGY REGO Series 12.8V 104Ah Super Slim Solid State Lithium Battery × 1 USER MANUAL User Manual ×... -
Page 7: Get To Know Super Slim Solid State Lithium Battery
Get to Know Super Slim Solid State Lithium Battery Mounting Holes (for Battery Holder) CAN Communication Port (UP) Positive Terminal (M8) Fixing Holes (for Battery Fix Bracket) Bluetooth Antenna CAN Communication Port (LINK) Negative Terminal (M8) Dimensions 2.40 in 22.31 in (566.6 mm) (61 mm) 21.94 in (557.4 mm) 11.42 in... -
Page 8: Secure The Battery
(An accessory kit includes 4 battery fix brackets, 8 countersunk head screws, and 8 self-tapping screws.) Accessories marked with “*” are available on renogy.com. Step 1: Install the battery fix brackets through the fixing holes on the battery with the included countersunk head screws. -
Page 9: How To Size Battery Adapter Cables
How to Size Battery Adapter Cables? Use appropriately sized Battery Adapter Cables (sold separately) based on expected loads. Refer to the table below for copper cable ampacities with different gauge sizes for up to 13 feet (4 m) cables. Cables longer than 13 feet (4 m) may require thicker gauge wires to prevent excessive voltage drop in undersized wiring. -
Page 10: Step 3. Plan A Mounting Site
Step 3. Plan a Mounting Site For optimal battery performance, it is recommended to install the battery in a clean, cool, and dry location, free from any accumulation of water, oil, or dirt. Accumulation of such materials on the battery can lead to current leakage, self-discharge, and even short-circuiting. Vent Vent 1.97-3.94 in... -
Page 11: Step 5. Install The Insulation Sleeves
“How to Connect Batteries in Series or Parallel" in this manual. █ For Batteries in Parallel or Series For instructions on how to connect the solid batteries in series or parallel, contact Renogy technical support service at https:/ /www.renogy.com/contact-us. — 7 —... -
Page 12: Step 7. Can Communication Wiring (Optional)
Controller Step 7. CAN Communication Wiring (Optional) REGO Series 12.8V 104Ah Super Slim Solid State Lithium Battery supports intra-battery communication and communication with Renogy monitoring and power supply devices supporting CAN. For either communication scenario, you need to pay attention to the following installation instructions of the CAN Communication Ports on the battery. -
Page 13: Communication With Renogy Power Supply And Monitoring Devices
CAN communication Communication with Renogy Power Supply and Monitoring Devices The RENOGY REGO Series 12.8V 104Ah Super Slim Solid State Lithium Battery can communicate with other Renogy power supply devices supporting CAN communication and monitoring devices through CAN (common area network) bus, also known as RV-C, enabling safe operation, smart control, remote monitoring, and programmable settings. - Page 14 The drop taps are usually located above the entry door, in the bathroom, or under the bed in the RV. Step 4: Connect the Drop Plugs on the drop cables and other Renogy devices supporting CAN communication to the drop sockets on the drop tap.
- Page 15 For example: z Battery to Renogy Combiner Box: 7-Pin CAN Communication Cable z Battery to Renogy ONE Core: 7-Pin CAN Communication Terminal Plug to RJ45 Port Adapter Cable and RJ45 Ethernet Cable (CAT5 or above) z Battery to REGO DC-DC Battery Charger: 7-Pin CAN Communication Terminal Plug to RJ45 Port Adapter Cable and LP16 Plug (7-Pin) to RJ45 Communication Cable This section is based on a 7-Pin CAN Communication Cable.
- Page 16 Recommended Accessories *7-Pin CAN Communication Cable(s) *7-Pin CAN Communication Terminal Plug(s) Accessories marked with “*” are available on renogy.com. The communication cable should be less than 19.6 feet (6 m). Choose proper terminal plugs based on the specific CAN ports.
-
Page 17: How To Connect Batteries In Series Or Parallel
How to Connect Batteries in Series or Parallel Calculate Battery Voltage and Current in Series and Parallel Connections The cables between each connected battery should be of equal length to ensure that all batteries can work equally together. You can connect up to 4 batteries in parallel or 4 batteries in series. Parallel Connection Series Connection System Voltage... -
Page 18: Series Connection Vs. Parallel Connection
Step 2: Use a voltmeter to measure the voltage of each battery. It is best to keep the voltage difference of each battery less than 0.1V. Step 3: Connect all the batteries in parallel and allow them to rest together for 12 to 24 hours before use. -
Page 19: Battery Cell Balancing
You can monitor the performance of the battery through either or both of the following methods: DC Home app (free of charge) Renogy ONE Core (sold separately). Ensure the Bluetooth of your phone is turned on. -
Page 20: Short-Range Monitoring Via Dc Home App
Step 1: Connect the battery to Renogy ONE Core through the Bluetooth of your phone. Step 2: Pair the Renogy ONE Core with the DC Home app through Wi-Fi or by scanning the QR code in Renogy ONE Core. On Renogy ONE Core, go to “System > Settings > Pair with App”... -
Page 21: Wired Long-Range Monitoring (Backbone Network)
Drop Cable to the RJ45 port of Renogy ONE Core. For wiring instructions on Renogy ONE Core, see Renogy ONE Core User Manual. Step 2: Monitor and program the complete system on Renogy ONE Core or the DC Home app. Internet My Renogy Devices... -
Page 22: Wired Long-Range Monitoring (Daisy Chain Network)
The communication cable should be less than 19.6 feet (6 m). Step 1: Remove the Terminator Plug from the Renogy device at either end of the daisy chain. Step 2: Connect the Renogy ONE Core to the free CAN Communication Port on the Renogy device with the Communication Adapter Cable (sold separately) and RJ45 Ethernet Cable. -
Page 23: Charging/Discharging Parameter Settings
Charging/Discharging Parameter Settings It is recommended that a single 12.8V 104Ah battery should be charged at 50A with a maximum allowable charging current at 100A. For single-battery scenarios, we recommend using 12V charge controllers rated at least 50A. For added safety and flexibility, a 12V 100A charge controller or battery charger is an ideal choice. -
Page 24: Discharging Logic
Lithium batteries are compatible with various charging methods, including MPPT charge controller, AC charger, and DC-DC charger. The crucial parameter setting for these chargers is to set the charge voltage, boost voltage, or bulk voltage at 14.4V (±0.2V). Do not overcharge or overdischarge the battery. Do not discharge the battery at high temperatures above 140°F (60°C). -
Page 25: Battery Management System
Battery Management System This smart battery management system has more than 60 fault alarms and protections to fully protect your battery safety. Below we list some common faults and protections for reference. Battery Operating Status Condition (For Reference Only) Trigger Battery Cell Voltage ≥... - Page 26 Battery Operating Status Condition (For Reference Only) Trigger Discharge Current ≥ 215A (60s) Primary Charge Current ≥ 0.5A Protection Recover Recover automatically after 60s Trigger Discharge Current ≥ 260A (30s) Secondary Charge Current ≥ 0.5A Protection Recover Discharge Overcurrent Recover automatically after 60s Trigger Discharge Current ≥...
-
Page 27: Troubleshooting
Disconnect the battery from the charging triggered due to too high battery during source or loads as soon as possible. current passing through the charging or battery. discharging. For further assistance, contact Renogy technical support service at https:/ /www.renogy. com/contact-us. — 23 —... -
Page 28: Specifications
Specifications General Battery Cell Type Lithium Iron Phosphate Rated Capacity (0.5C, 25°C) 104Ah Nominal Voltage 12.8V Voltage Range 10V to 14.8V Cycle Life (0.5C, 25°C) 6000 Cycles (80% DOD) Dimension 22.8 x 11.4 x 2.4 in / 579 x 290 x 61 mm Weight 28.22 lbs / 12.8 kg Connection Method... -
Page 29: Maintenance & Storage
Maintenance & Storage Inspection Please perform regular inspections following the steps below: z Examine the external appearance of the battery. The housing and terminals of the battery shall be clean, dry, and free of corrosion. z Check battery cables and connections. Replace any damaged cables and tighten any loose connections. -
Page 30: Important Safety Instructions
Important Safety Instructions Renogy accepts no liability for any damage caused by: z Force majeure including fire, typhoon, flood, earthquake, war, and terrorism. z Intentional or accidental misuse, abuse, neglect or improper maintenance, and use under abnormal conditions. z Improper installation, improper operation, and malfunction of a peripheral device. -
Page 31: Renogy Support
Questionnaire Investigation To explore more possibilities of solar systems, visit Renogy Learning Center at: renogy.com/learning-center For technical questions about your product in the U.S., contact the Renogy technical support team through: renogy.com/contact-us 1(909)2877111 For technical support outside the U.S., visit the local website below: Canada ca.renogy.com... -
Page 32: Battery Recycling
You can dispose your used batteries at any of Call2Recycle Earth911 locations that accepts Renogy rechargeable Lithium-ion and Lead-acid batteries (AGM&GEL). www.call2recycle.org/locator search.earth911.com Enjoy our community’s incentive program when you properly dispose of your batteries. You can earn $20 gift cards to purchase any products on our website by participating. It’s a simple way to be environmentally responsible and be rewarded for recycling. - Page 33 IC Warning This device complies with Industry Canada’s licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
- Page 34 Save 105 gallons of water from being consumed Renogy Power PLUS Renogy Power Plus allows you to stay in the loop with upcoming solar energy innovations, share your experiences with your solar energy journey, and connect with like-minded people who are changing the world in the Renogy Power Plus community.
