Woodendot Ibon L Assembly Instructions

Storage table

Download this manual

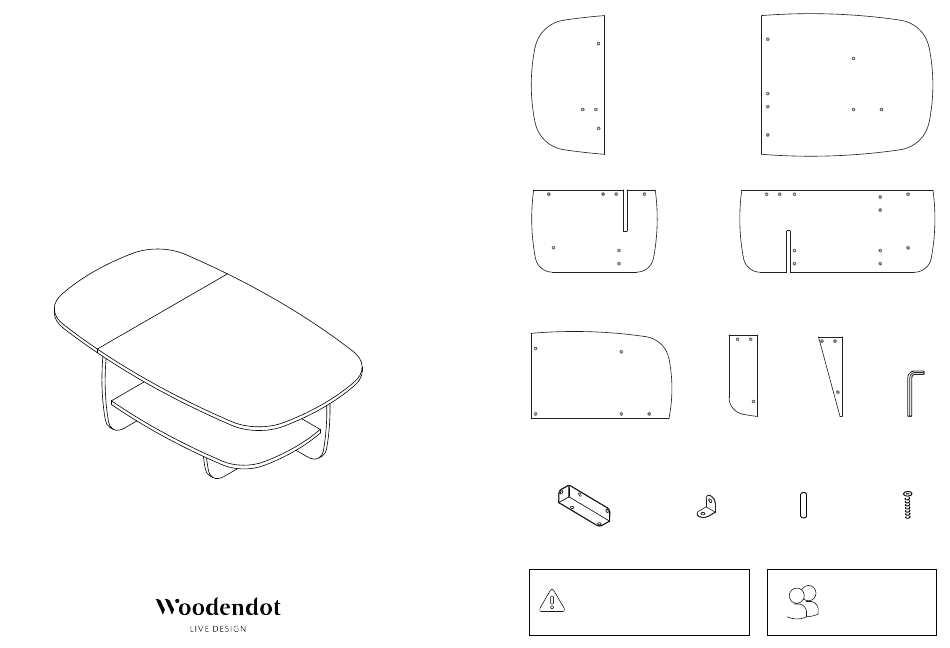

Ibon L storage table

ASSEMBLY INSTRUCTIONS

(A)

(C)

(E)

(I)

Before starting, it is recommended

to place a blanket or similar on the

ﬂoor to prevent damage to the

pieces during assembly.

(B)

(D)

(F)

(G)

43x

(J)

(K)

Two people are

recommended for

certain steps of the

installation.

(H)

(L)

Need help?

Do you have a question about the Ibon L and is the answer not in the manual?

Page 1 Ibon L storage table ASSEMBLY INSTRUCTIONS Before starting, it is recommended Two people are to place a blanket or similar on the recommended for ﬂoor to prevent damage to the certain steps of the pieces during assembly. installation.
Page 2 Place the wooden pieces A and B on the ﬂoor with the hole side facing upwards. With Place pieces C+D on top of pieces A+B, which were joined in step 2. Position them 1º 4º the help of a hammer, carefully insert the 3 wooden dowels (K) into the holes on the so that piece C aligns with the joining line between piece A and B, as you can see in edge of piece B, leaving half of the dowel (K) outside.
Page 3 Afterwards, position part G as shown and screw it to the set with x1 corner bracket With the help of another person, place part E under the metal pieces you have placed 5º 7º (I) and x1 L-shaped piece (J), using x7 screws (L). in the previous step (as shown in the drawing) and screw them to it, using x3 screws (L).
