(A)
4x
(B)
4x
(D)
The drill bit required is Ø 8 mm or 5/16"
We recommend two people
for the installation
Depth of the hole in wall: 50 mm/1.97"
For the hole to be the exact depth, measure 50 mm/1.97"
You will need a manual drill
on the drill bit and place tape around it to mark the
for the wall holes
distance. Stop drilling when it reaches that depth.
(C)
2x
1x

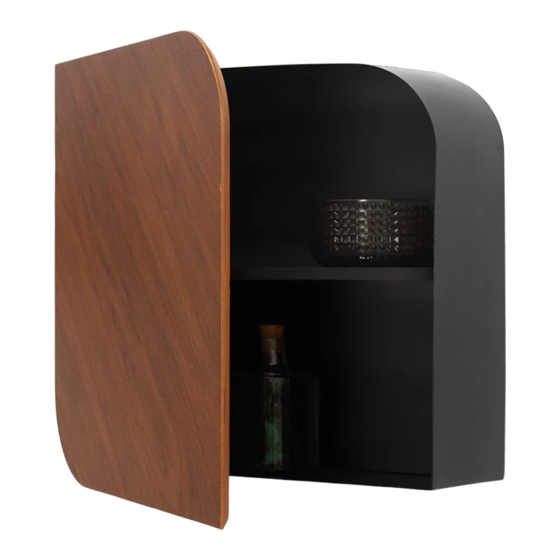

Cielo
Wall Cabinet
ASSEMBLY INSTRUCTIONS
Advertisement
Table of Contents
Related Manuals for Woodendot Cielo
Summary of Contents for Woodendot Cielo
- Page 1 Cielo Wall Cabinet ASSEMBLY INSTRUCTIONS The drill bit required is Ø 8 mm or 5/16” We recommend two people for the installation Depth of the hole in wall: 50 mm/1.97” For the hole to be the exact depth, measure 50 mm/1.97”...
- Page 2 1º 2º You will find the cabinet assembled. In order to install it you must first remove Hold the cabinet to the wall, use the the shelf (D) [it is joined to the rear piece]. level tool to make sure it’s horizontal. Mark the cabinet holes and put the cabinet aside.
