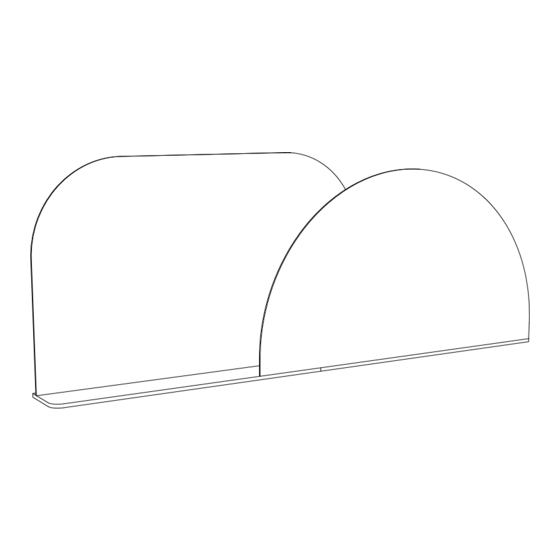

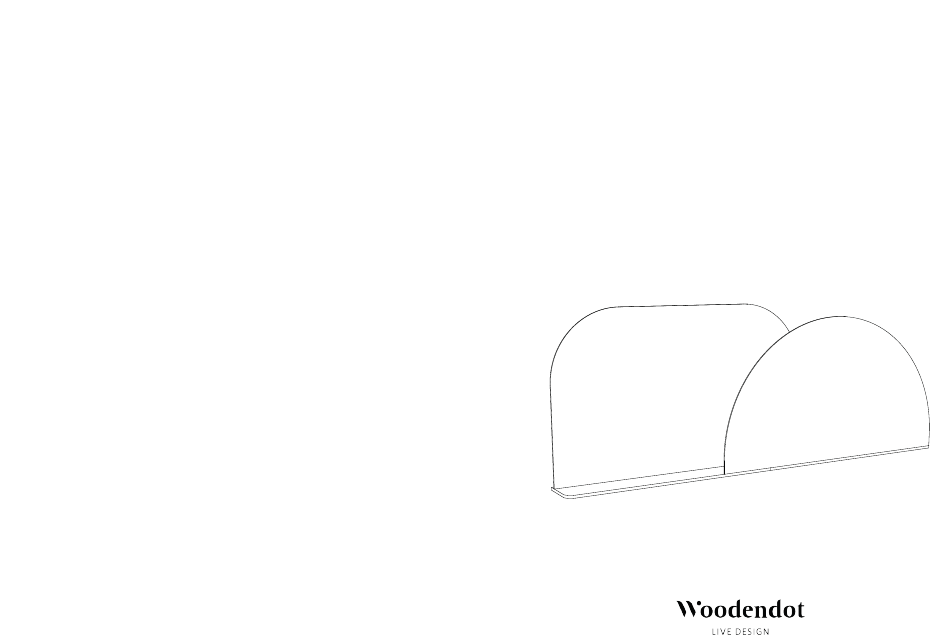

- Page 1 Alba Headboard ASSEMBLY INSTRUCTIONS 140cm / 55in 150cm / 59in 160cm / in 180cm / 71in...
- Page 2 DIFFERENT POSSIBILITIES We recommend The drill bit required is Ø 6mm or 15/64” two people for Depth of the hole in wall: 50 mm/1.96” the installation For the hole to be the exact depth, measu- You will need a re 50mm/1.96” on the drill bit and place manual drill for tape around it to mark the distance.
- Page 3 OPTION 2 Back panel left For Alba Headboard S (140 cm/55 in), M (150 cm/59 in) and L (160 cm/63 in) For Alba Headboard S (140 cm/55 in), M (150 cm/59 in) and L (160 cm/63 in) Attach each panel to its corresponding shelf, using x2 screws for each panel.
- Page 4 For Alba Headboard XL (180 cm/71 in) The angle brackets that support the headboard will be located about 5 cm below the mattress. From there, mark the screw holes (9 holes) of the angle brackets with Now we will join the 2 shelves (that we have attached to their respective panels on a pencil 15 cm inward from each end, and mark the midpoint to center where the step 2b) together.
- Page 5 Place the headboard on top of the angle brackets so that it is centered. Mark with Put the headboard on the floor to make the 5 holes marked in the previous step and 7º 8º a pencil where to place the screws for the wall fitting (G) and the U-shaped bracket screw the fitting to the wall (x5 wall plugs and x4 screws).
- Page 6 Screw the headboard’s shelves to the angle brackets (x9 screws). 10º...
- Page 7 Alba Headboard ASSEMBLY INSTRUCTIONS 140cm / 55in 150cm / 59in 160cm / in 180cm / 71in...
- Page 8 DIFFERENT POSSIBILITIES 14x / 15x* 11x / 13x* 1x / 2x* 1x / 2x* *Depending on the selected size: S / M, L, XL We recommend The drill bit required is Ø 6mm or 15/64” two people for Depth of the hole in wall: 50 mm/1.96” the installation For the hole to be the exact depth, measu- You will need a...
- Page 9 OPTION 2 Back panel left For Alba Headboard S (140 cm/55 in), M (150 cm/59 in) and L (160 cm/63 in) For Alba Headboard S (140 cm/55 in), M (150 cm/59 in) and L (160 cm/63 in) Attach each panel to its corresponding shelf, using x2 screws for each panel.
- Page 10 (if you place it lower you won’t be able to access the shelf storage below). If you purchased Alba Headboard M, L or XL, you would have received two U-shaped brackets (instead of one). Place the second one in the same way on the...
- Page 11 You would have received one or two U-shaped brackets depending on the size you purchased (x1 for Alba Headboard S or x2 for Alba Headboard M, L and XL). Put the headboard back on top of the angle brackets and hook it to the wall 9º...
- Page 12 Screw the headboard’s shelves to the angle brackets (x9 screws). 10º...
- Page 13 Alba Headboard ASSEMBLY INSTRUCTIONS 140cm / 55in 150cm / 59in 160cm / in 180cm / 71in...
- Page 14 DIFFERENT POSSIBILITIES We recommend The drill bit required is Ø 6mm or 15/64” two people for Depth of the hole in wall: 50 mm/1.96” the installation For the hole to be the exact depth, measu- You will need a re 50mm/1.96” on the drill bit and place manual drill for tape around it to mark the distance.
- Page 15 Back panel left Back panel left For Alba Headboard S (140 cm/55 in), M (150 cm/59 in) and L (160 cm/63 in) For Alba Headboard S (140 cm/55 in), M (150 cm/59 in) and L (160 cm/63 in) Attach each panel to its corresponding shelf, using x2 screws for each panel.
- Page 16 For Alba Headboard XL (180 cm/71 in) The angle brackets that support the headboard will be located about 5 cm below the mattress. From there, mark the screw holes (9 holes) of the angle brackets with Now we will join the 2 shelves (that we have attached to their respective panels on a pencil 15 cm inward from each end, and mark the midpoint to center where the step 2b) together.
- Page 17 Place the headboard on top of the angle brackets so that it is centered. Mark with Put the headboard on the floor to make the 3 holes marked in the previous step and 7º 8º a pencil where to place the screws for the wall fitting (G) and the U-shaped bracket screw the fitting to the wall (x3 wall plugs and x2 screws).
- Page 18 Screw the headboard’s shelves to the angle brackets (x9 screws). 10º...
- Page 19 LED strip (1) and place it inside de connector box we oppened in the previous step. Important: This annex only applies if you have purchased the Alba headboard with light. Make sure the copper tip of the connector touches the two contacts of the light bar and that the + sign of the LED strip corresponds with the side where the red cable is on the box.
