Ambassador MARINE Pacifica 134-0832-CP Installation Instructions

I
NSTALLATION
Thank you for choosing Ambassador Marine.
Your new Ambassador Marine faucet, sprayer, shower or
accessory will give you years of trouble-free performance.
Please read these instructions carefully before installing your
new item. If you have any additional questions about the
installation of this product, please feel free to contact one of
our friendly customer service representatives at 800.270.4262.
1
2
3
4
5
6
I
NSTRUCTIONS

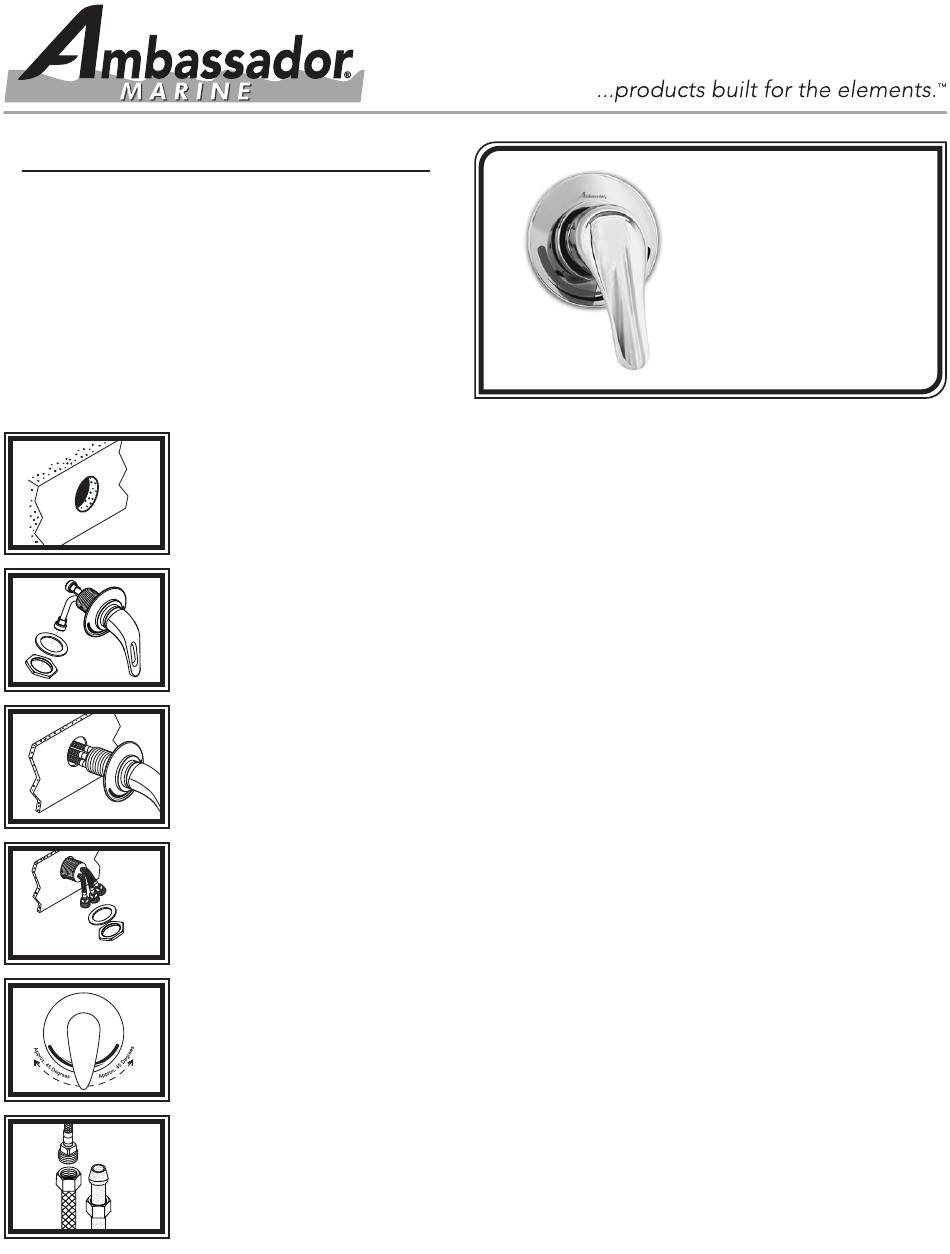

1) Check desired position to make sure there is enough room inside the wall for the valve body,
connector hoses and connections. Drill a 1
2) If the lock nut and metal washer are already on the valve body, unscrew the lock nut and slide
the washer off the back of the valve body. If the three hoses are not preinstalled, screw the
connector hoses into the back of the valve body. Screw the red hose into the right hole (hot
inlet), one of the blue hoses into the left hole (cold inlet) and the second blue hose into the center
hole (outlet) on the back of the valve body, when looking at the valve body from the back. It is
not necessary to use Teflon (plumber's) tape when screwing the hoses into the valve body, as the
o-rings on the tips of the hoses will form a seal.
3) From the front side of the bulkhead, slide the valve assembly with the wall plate, packing
rings and handle still attached, through the hole in the bulkhead.
4) From the back side of the bulkhead, slide the metal washer, then the lock nut up over the
connector hoses and onto the valve body. Loosely tighten the lock nut.
5) From the front side of the wall, ensure that when the handle is in the off position (straight
down) it is centered between the hot and cold side-to-side rotation. Rotate the wall plate so that
the red and blue stipe properly align with the handle. Once centered, firmly tighten the lock nut
against the back side of the wall to secure.
6) Connect hot and cold water supplies to the
supply will connect to the red hose, cold supply will connect to the blue hose in the left hole on
the back of the valve body, when looking at the valve body from the back. Connect water line
from the shower head or bulkhead elbow (not included) to the second blue hose connected to
the center (outlet) port. Connection procedure may vary depending on the specific plumbing
system installed on your boat. Wrap the
(plumber's) tape if your connectors do not include cone-washers.
7) After installation is complete, turn the water supply back on and allow both hot and cold
water to run for at least one full minute. While water is running, check all connections for leaks.
Connections may need re-tightening.
/ " to 1 / "diameter hole in the desired location.
5 3
8 4
1 / " NPS-Male connector hose fittings. Hot
2
/ " NPS-Male connector hose fittings with Teflon
1
2
134-0832-CP
135-0832-CP
Pacifica
Single Handle Shower Mixer
Chrome
(OEM)
(Retail)
