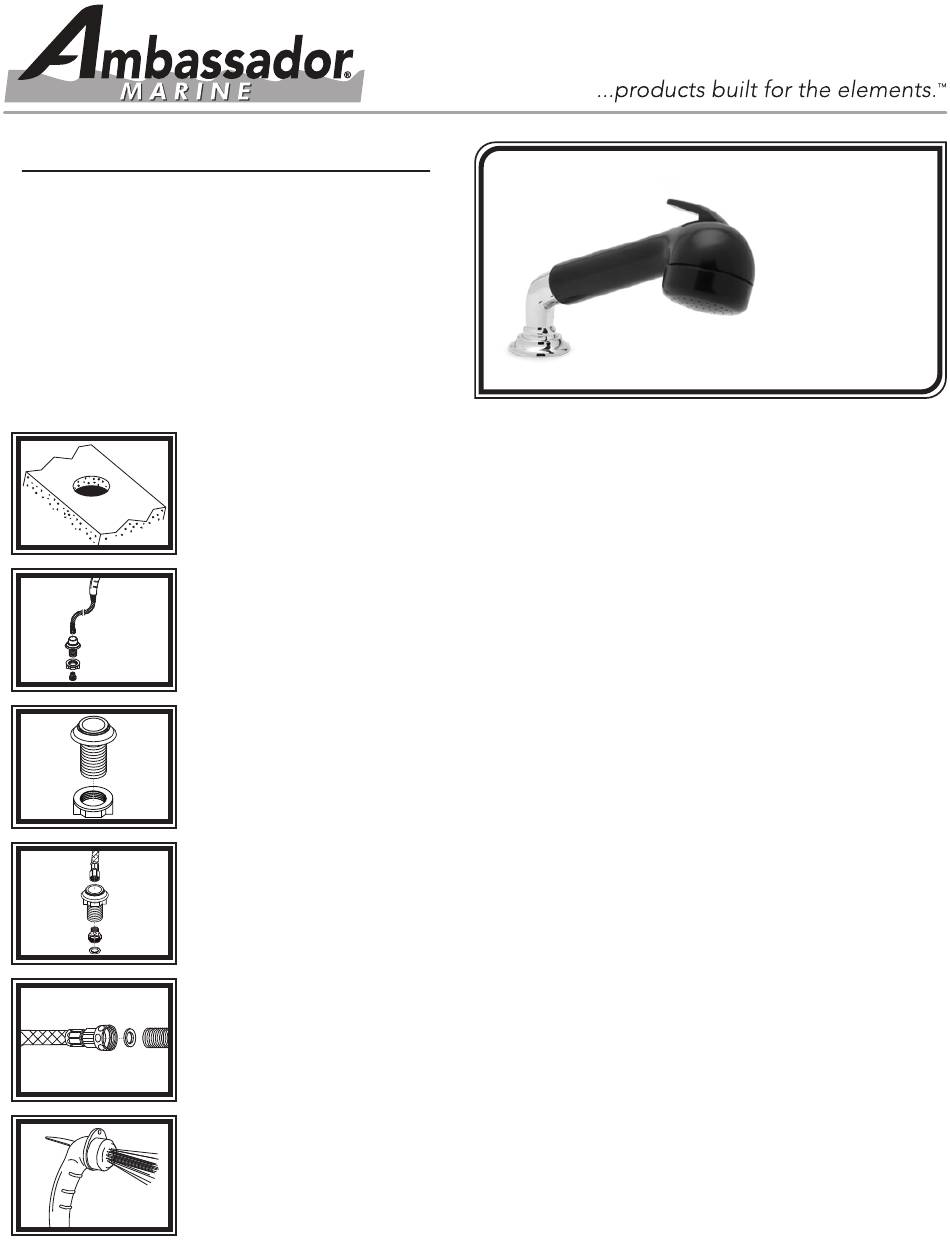

Ambassador MARINE Universal 134-0008-KP Installation Instructions

I
NSTALLATION
Thank you for choosing Ambassador Marine.
Your new Ambassador Marine faucet, sprayer, shower or
accessory will give you years of trouble-free performance.
Please read these instructions carefully before installing your
new item. If you have any additional questions about the
installation of this product, please feel free to contact one of
our friendly customer service representatives at 800.270.4262.
1
2
3
4
5
6
I
NSTRUCTIONS
1) Check desired position to make sure there is enough room for the hose to gather under the
deck without getting caught on anything. Drill 1" hole in the deck in the desired location.
2) Remove hose nest assembly from hose/sprayer assembly. Unscrew 1/2" adapter from hose
and pull hose out through the top side of the hose nest shaft. Remove lock nut from hose nest
shaft.
3) Slip hose nest through the hole in the deck. Make sure hose nest collar properly lines up with
the hose nest shaft. From under the deck, thread the lock nut onto the hose nest shaft and
tighten.
4) Slide hose/aprayer assembly back through the hose nest shaft from above the deck and
replace the 1/2" adapter.
5) Connect to desired 1/2" NPT-Male water source or valve. Make sure the rubber washer is in
place in the larger female side of the adapter.
6) This sprayer has two functions: intermittent and continuous. For intermittent spray, simply
press down on the trigger. For continuous spray, lift up on the trigger until it locks. To release,
simply press the trigger back down. If you wish to remove the hook from the sprayer, unscrew the
face. Slide the hook off the sprayer and remove the large, black, flat washer from inside the face.
Replace the face.
134-0008-KP
135-0008-KP
Universal
Deck Sprayer
Black
