Ambassador MARINE 134-0034-WH Installation Instructions

I
NSTALLATION
Thank you for choosing Ambassador Marine.
Your new Ambassador Marine faucet, sprayer, shower or
accessory will give you years of trouble-free performance.
Please read these instructions carefully before installing your
new item. If you have any additional questions about the
installation of this product, please feel free to contact one of
our friendly customer service representatives at 800.270.4262.
1
2
3
4
5
6
I
NSTRUCTIONS

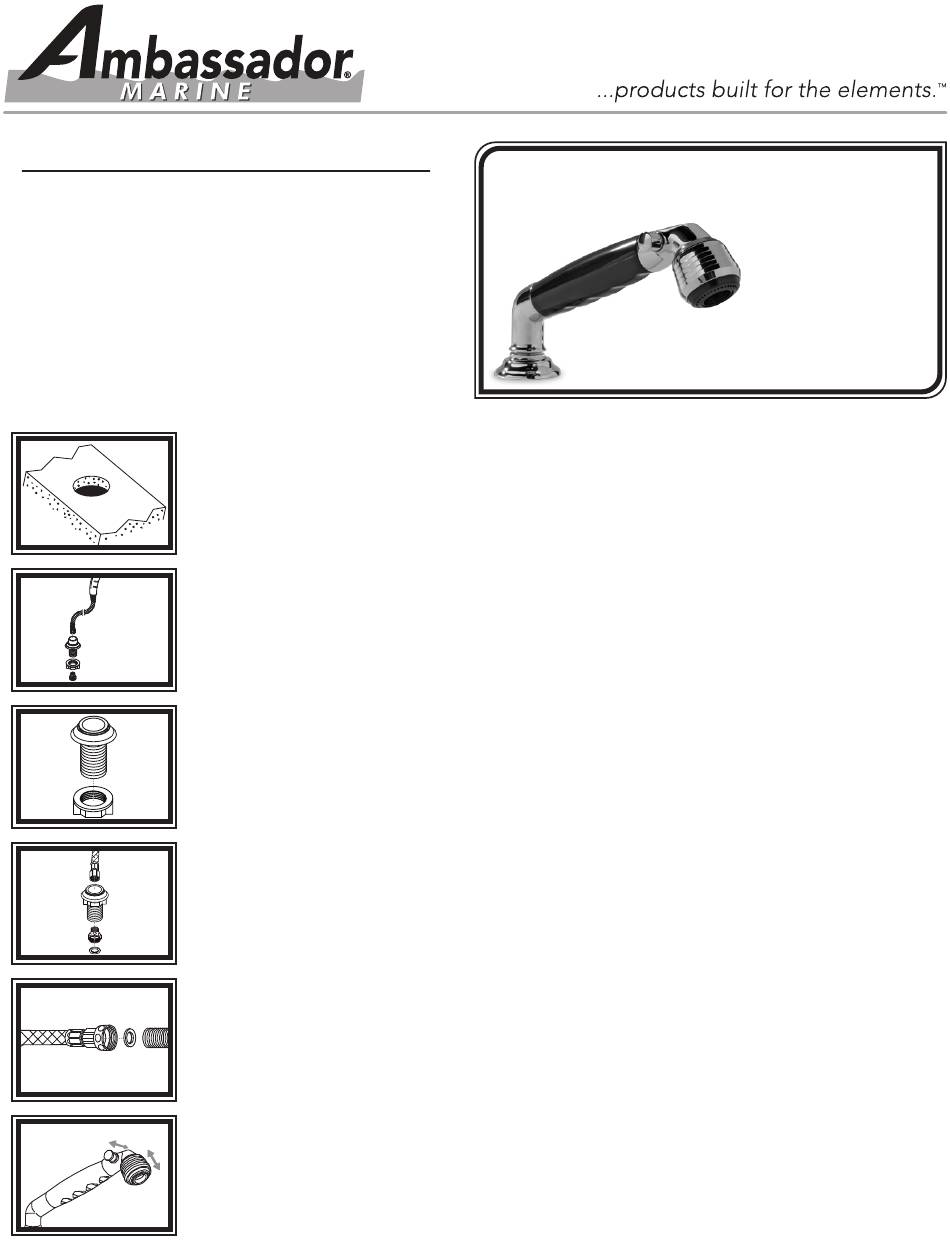

1) Check desired position to make sure there is enough room for the hose to gather under the
deck without getting caught on anything. Drill 1" hole in the deck in the desired location.
2) Remove hose nest assembly from hose/sprayer assembly. Unscrew 1/2" adapter from hose
and pull hose out through the top side of the hose nest shaft. Remove lock nut from hose nest
shaft.
3) Slip hose nest through the hole in the deck. Make sure hose nest collar properly lines up with
the hose nest shaft. From under the deck, thread the lock nut onto the hose nest shaft and
tighten.
4) Slide hose/sprayer assembly back through the hose nest shaft from above the deck and
replace the 1/2" adapter.
5) Connect to desired 1/2"-Male water source or valve. Make sure the rubber washer is in place
in the larger female side of the adapter.
6) To switch from normal aerate to spray, simply pull down on the chrome ring around the
aerator. Push it back up to switch back to aerate from spray. To set the sprayer to "stand-by"
push the stand-by button on the head of the sprayer. Push the button on the opposite side of the
sprayer to allow water to flow. NOTE: "STAND-BY" WILL ALLOW A SMALL AMOUNT OF
WATER TO CONTINUE TO TRICKLE OUT OF THE SPRAYER.
134-0034-WH
135-0034-WH
(Retail)
Universal
Deck Sprayer
Chrome/White
(OEM)
