Chapter 3
Add a Media Folder

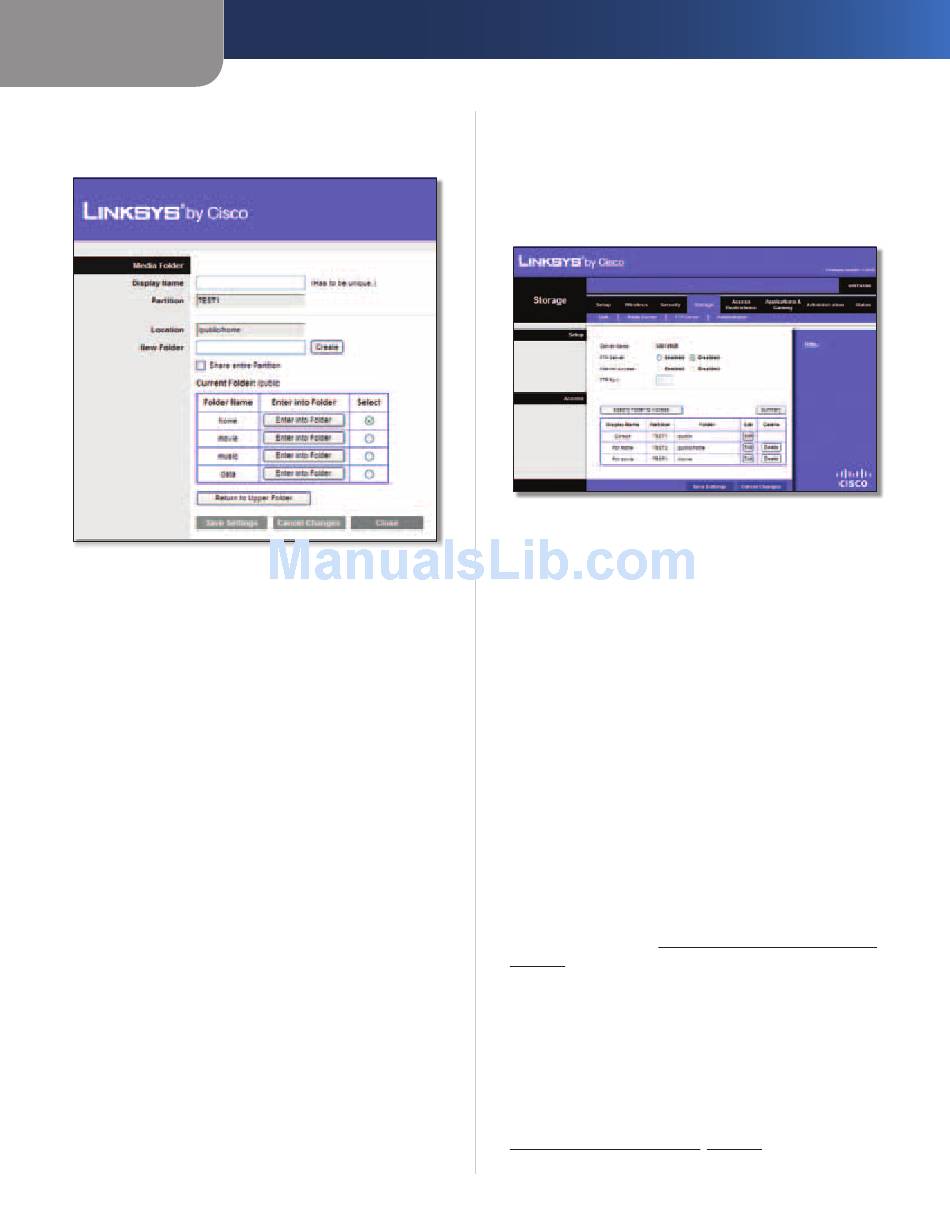

Use this screen to add a media folder.
Media Folder
Media Folder
Display Name
Create a name for the folder. This will
appear in the Database table on the Media Server screen.
Partition
The name of the partition is displayed.
Location
The location of the folder is displayed.
New Folder
Create a name for the physical location of
the folder. Then click Create.
Share entire Partition
Select this option if the folder
should include the entire partition.
If you do not want to share the entire partition, then select
the folder you do want to share.
Current Folder
The current folder is displayed.
Folder Name
The available folders are listed by Folder
Name.
Enter into Folder
To display sub-folders, click this button.
Select
Select a folder.
Return to Upper Folder
To return to the previous folder,
click this button.
Click Save Settings to apply your changes, or click Cancel
Changes to clear your changes. Click Close to exit the
screen.
On the Media Server screen, click Save Settings to apply
your changes, or click Cancel Changes to clear your
changes.
Simultaneous Dual-Band Wireless-N Gigabit Router
Advanced Configuration
Storage > FTP Server
The storage options are available when a USB storage
device is connected to the USB port of the Router.
The FTP Server tab creates an FTP server that can be
accessed from the Internet or your local network.
Storage> FTP Server
Setup
Server Name
The default server name of the Router is
WRT610N.
FTP Server
Select Enabled to use the Router as an FTP
server. Otherwise, select Disabled. An external USB hard
drive or USB disk must be connected to the USB port to
use this service.
Internet Access
Select Enabled to allow access of the
FTP server from the Internet. Otherwise, select Disabled
to only allow local network access.
FTP Port
Enter the FTP Port number to use. The default
is 21.
Access
This section lets you add FTP folders that can be accessed
through the FTP client.
Specify Folder to Access
Access table, click this button. The FTP Folder screen
appears. Proceed to Create or Edit an FTP Folder,
page 23.
Summary
To view a list of FTP folders, click this option.
For each FTP folder, the Display Name, Partition, and
Folder location are displayed.
The database table lists the FTP folders with the following
information: Display Name, Partition, and Folder.
Edit
To change the access settings of an FTP folder, click
this option, and the FTP Folder screen appears. Proceed to
Create or Edit an FTP Folder, page 23.
To add an FTP folder to the
22
