Kärcher SC 2 Manual

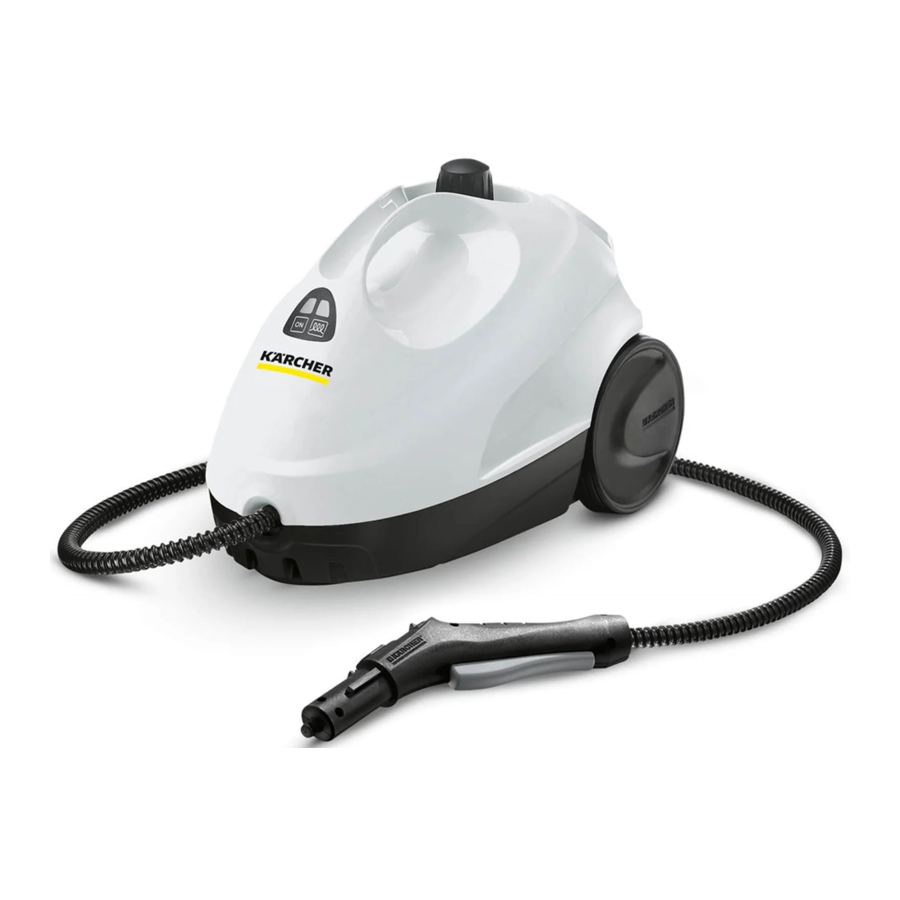

Description of the unit

The maximum amount of equipment is described in these operating instructions. Depending on the model used, there are differences in the scope of delivery (see packaging).

For the illustrations, refer to the graphics page.
Illustration A
Description of the unit

Indicator light (green) - mains voltage present
Indicator light (orange) - heating
Safety lock
Holder for accessories
Park bracket for floor nozzle
Mains connection cable with mains plug
Non-driven wheels
Steering roller
Steam gun

Unlocking button
Selector switch for steam volume (with child lock)
Steam lever
Steam hose
Spotlight nozzle
Round brush (small, black)
Manual nozzle
Microfibre cover for manual nozzle

Installation

Installing accessories

Insert and engage the steering roller and non-driven wheels.Illustration B
Push the open end of the accessory onto the steam gun so that the unlocking button on the steam gun engages.Illustration H
Push the open end of the accessory onto the spotlight nozzle.Illustration I

Disconnecting accessories

Set the selector switch for the steam volume to the rear.
The steam lever is locked.
Push the unlocking button and pull the parts apart.Illustration J

Operation

Filling water
Note
Warm water reduces the heating-up time.
Note
Descaling the steam boiler is not required if commercially available distilled water is used.

Unscrew the safety lock.Illustration C
Drain the water completely out of the steam boiler.Illustration L
Fill a maximum of 1 l distilled water or tap water into the steam boiler.Illustration C
Insert the safety lock. Illustration D

Switch on the device

Place the device on a firm surface.
Insert the mains plug into a socket.Illustration E
The green and orange indicator lights illuminate.
Wait until the orange indicator light - heating goes out. Illustration F
Press the steam lever.Illustration G
Steam leaks out.

Regulating the steam volume
Note
The device heating always switches on again during use to maintain the pressure in the steam boiler. The orange indicator light - heating illuminates to indicate this. The expelled steam volume is regulated using the selector switch for steam volume. The selector switch has 3 positions:

	Maximum steam volume
	Reduced steam volume
	No steam - child lock *Note* In this position, the steam lever cannot be operated.

Set the selector switch for the steam volume to required steam volume.
Press the steam lever.
Before starting cleaning, point the steam gun at a cloth until steam is expelled evenly.

Topping up the water
If the steam volume is reduced during work or if no more steam volume comes out, the water will have to be refilled.

Switch the appliance off, see Chapter Switch off the appliance.
Unscrew the safety lock.
Fill a maximum of 1 l distilled water or tap water into the steam boiler.
Insert the safety lock.
Insert the mains plug into a socket.
Wait until the orange indicator light - heating goes out.
The appliance is ready for use.

Switch off the appliance

Pull the mains plug out of the socket.
Press the steam lever until no more steam flows out. Illustration K

The steam boiler is depressurised.
Set the child lock (selector switch for steam volume) to the rear. The steam lever is locked.

Rinsing out the steam boiler
Rinse the appliance's steam boiler after max. every tenth boiler fill.

Switch the appliance off, see Chapter Switch off the applianceSwitch off the appliance.
Allow the appliance to cool down.
Disconnect the accessory.
Fill the steam boiler with water and swing it around vigorously. Lime residue which has been deposited on the bottom of the steam boiler will be released as a result.
Drain the water completely out of the steam boiler. Illustration L

Storing the device

Store the device in a dry location that is protected from frost.

Important application instructions

Freshening up textiles
Prior to using the appliance, always check the compatibility of the textiles at a concealed point: Steam down the textile, allow it to dry and then check it for any change in colour or shape.

Cleaning coated or painted surfaces
warning ATTENTION
Damaged surfaces
Steam can loosen wax, furniture polish, plastic coatings or paint and edge band from edges.
Do not direct the steam at glued laminated edges as the edge band may loosen.
Do not use the appliance for cleaning unsealed wood or parquet floors.
Do not use the appliance for cleaning painted or plastic coated surfaces such as kitchen or living room furniture, doors or parquet.

To clean these surfaces, steam a cloth briefly and use it to wipe over the surfaces.

Glass cleaner
warning ATTENTION
Glass breakages and damaged surfaces
Steam can damage sealed points of the window frame and, at low outside temperatures, lead to tension on the surface of window panes and hence to glass breakages. Do not direct the steam at sealed points on the window frame.
At low outside temperatures, heat up the window panes by gently steaming the full surface of the glass.

Clean the window area with a manual nozzle and cover. To remove the water, use a squeegee or wipe the surfaces dry.

How to use the Accessories

Steam gun
The steam gun can be used for the following applications without accessories:

For removing slight creases from the hanging clothing items: Steam the clothing item from a distance of 10-20 cm.
For wiping damp dust: Steam a cloth briefly and use it to wipe over the furniture.

Spotlight nozzle
The spotlight nozzle is suitable for cleaning areas, joins, fittings, drains, sinks, WCs, blinds or radiators that are difficult to access. The closer the spotlight nozzle is to the soiled area, the greater the cleaning efficiency will be as the temperature and steam volume are at their highest at the nozzle opening. Larger lime deposits can be treated before steam cleaning with a suitable detergent. Allow the detergent to soak in for approx. 5 minutes and then steam it off.

Slide the spotlight nozzle onto the steam gun.
Illustration H

Round brush (small)
The small round brush is used for cleaning stubborn dirt.
Stubborn dirt can be removed more easily by brushing.
warning ATTENTION
Damaged surfaces
The brush may scratch sensitive surfaces.
It is not suitable for cleaning sensitive surfaces.

Fit the round brush to the spotlight nozzle. Illustration I

Manual nozzle
The manual nozzle is used for cleaning small areas that can be washed down, shower cubicles and mirrors.

Push the manual nozzle onto the steam gun according to the spotlight nozzle.Illustration H
Pull the cover over the manual nozzle.

Care and service

Descaling the steam boiler
Note
Descaling the steam boiler is not required if commercially available distilled water is used.
Note
Since the lime becomes caked on the appliance, we recommend descaling the appliance as specified in the table (BF=boiler fillings) based on the number of times the steam boiler is filled.

Hardness range		°dH	mmol/l	KF
I	soft	0-7	0-1.3	55
II	Medium	7-14	1.3-2.5	45
III	Hard	14-21	2.5-3.8	35
IV	Very hard	>21	>3.8	25

Note
Your water board or municipal utilities authority can provide information on hardness of tap water.
warning ATTENTION
Damaged surfaces
The descaler may corrode sensitive surfaces.
Fill and empty the appliance carefully.

Switch off the appliance, see Chapter.
Allow the appliance to cool down.
Unscrew the safety lock.
Drain the water completely out of the steam boiler.Illustration L
ATTENTION
Appliance damage due to descaler
An unsuitable descaler and incorrect dosing of the descaler may damage the appliance.
Only use KÄRCHER descaler.
Use 2 dosing units of the descaler for 1.0 l of water.
Apply descaler solution to the descaler according to the details.
Fill the descaler solution into the steam boiler. Do not seal the steam boiler.
Allow the descaler solution to take effect forapprox. 8 hours.
Drain descaler solution completely out of the steam boiler.
Repeat the descaling process if necessary.
Rinse the steam boiler 2-3 times with cold water in order to drain all the descaler solution residue.
Drain the water completely out of the steam boiler.Illustration L

Care of accessories
(Accessories - depending on scope of delivery)
Note
The micro fibre cloths are not suitable for dryer.
Note
When washing the cloths, observe the instructions on the washing tag. Do not use any liquid softeners as this will affect the ability of the cloths to pick up dirt.

Wash the floor cleaning cloths and covers at a max. temperature of 60°C in the washing machine.

Troubleshooting guide

Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service.

Risk of electric shock and burns
Trying to eliminate faults while the appliance is connected to the mains or has not yet cooled down is always dangerous.
Remove the mains plug.
Allow the appliance to cool down. The steam boiler is scaled.

Descale the steam boiler

No steam

No water in the steam boiler

Refill water, see Chapter Refilling water.

The steam lever cannot be pressed

The steam lever is locked with the child lock.

Set the child lock (selector switch for steam volume) to the front.

The steam lever is released.

Long heating-up time

The steam boiler is scaled.

Descale the steam boiler.

High water egress

The steam boiler is too full.

Press the steam gun until a little water comes out.

High water output

The steam boiler is scaled.

Descale the steam boiler.

The steam pressure iron "spits" water

Rinse or descale the steam boiler of the steam cleaner; see ChapterDescaling the steam boiler.

Technical data

Electrical connection
Voltage	V	220-240
Phase	~	1
Frequency	Hz	50-60
Protection class		IPX4
Protection category		I
Performance data
Heating capacity	W	1500
Maximum operating pressure	MPa	0.32
Heating-up time	Minutes	6.5
Continuous steaming	g/min	40
Maximum steam blast	g/min	100
Filling quantity
Steam boiler	l	1.0
Dimensions and weights
Weight (without accessories)	kg	3.1
Length	mm	380
Width	mm	254
Height	mm	260

Subject to technical modifications.

General notes

warning
Please read and comply with these orig inal instructions prior to the initial operation of your appliance and store them for later use or subsequent owners.

Safety instructions

In addition to the notes in the operating instructions, you also need to take into consideration the general safety regulations and accident prevention guidelines applicable by law.
Warnings and information notices attached to the device provide important information for hazard-free operation.

Hazard levels

Indication of an imminent threat of danger that will lead to severe injuries or even death.

Indication of a potentially dangerous situation that may lead to severe injuries or even death.

Indication of a potentially dangerous situation that may lead to minor injuries.

warning ATTENTION

Indication of a potentially dangerous situation that may lead to damage to property.

General safety instructions

Risk of asphyxiation. Keep packaging film out of the reach of children.

Only use the device for its proper use. Take into account the local conditions and beware of third parties, in particular children, when working with the device.
Only people who have been instructed on how to use the device, or have proven their ability to operate it, and have been explicitly instructed to use it, may use the device.
Persons with reduced physical, sensory or mental capabilities and persons lacking experience and knowledge may only use the appliance if they are properly supervised, have been instructed on use of the appliance safely by a person responsible for their safety, and understand the resultant hazards involved.
Children must not operate the device.
Children must be supervised to prevent them from playing with the appliance.
Keep the device out of the reach of children when it is connected to the mains or when it is cooling down.

Do not use the device if it has been dropped beforehand, is visibly damaged or if it is leaking.
Safety devices are provided for your own protection. Never modify or bypass safety devices.

Risk of electric shock

Never touch the mains plug and socket with wet hands.
Only connect the device to alternating current. The voltage indicated on the type plate must match the voltage of the power source.
Do not direct the steam jet directly onto equipment containing electrical components, e.g. the interior space of ovens.
Do not fill the devices with removable water reservoir directly via the water connection while they are connected to the mains power. Use a receptacle for filling.
Do not use the d in swimming pools which contain water.
The mains plug and extension cable connection must not be in water.
Do not clean over floor sockets.

Only connect the device to an electrical connection which has been set up by a qualified electrician as per IEC 60364-1.
Only operate the device in wet rooms, e.g. bathroom, connected to sockets with upstream residual current device.
Check that the mains connection cable with mains plug is undamaged each time before using the device. To avoid any possible danger, a damaged mains connection cable must be immediately replaced by the manufacturer, or the authorised customer service department or a qualified electrician.
Do not damage the power supply and extension cable by running over it, crushing or yanking it or similar. Protect the power supply cable from heat, oil and sharp edges.
Unsuitable electrical extension cables can be dangerous. Only use electrical extension cables with a splash guard and a diameter of at least 3x1 mm².
Only replace couplings on the power supply or extension cable with those with the same splash guard and the same mechanical strength.
Clean tiled walls with sockets carefully.
Disconnect the device from the mains during longer operating breaks, after use or before performing any maintenance work.
Only carry out servicing work when the mains plug is pulled and the steam cleaner has cooled down.

Operation

Operation in explosive atmospheres is prohibited.
When using the device in hazard zones (e.g. service stations), adhere to the respective safety regulations.

Risk of scalding. Never touch the steam jet with your hand from a close distance, and do not direct it at people or animals.
Risk of scalding on the hot steam boiler. Allow the steam boiler to cool down before filling it with water. Does not apply to SC 3 devices
Risk of scalding. Let the appliance and accessory parts, particularly the floor cleaning cloth and the hand cover cool down before touching them.
Risk of scalding. Do not use the appliance for cleaning pressure tanks as this poses a bursting and explosion hazard.
Risk of scalding from the floor nozzle. Ensure that no part of the body gets under the floor nozzle. Never operated the floor nozzle without wearing shoes.
Risk of scalding. Only operate the appliance once it is fully assembled and functional.
Risk of scalding. Let the appliance cool down fully before putting it away.

warning ATTENTION

Do not fill with any cleaning agents or other supplements.

Never disconnect accessories from the device while steam is being expelled.
Hot water may drip out when disconnecting accessory parts. Allow the device to cool down first.
Never open the maintenance / safety lock during operation. Allow the device to cool down first.
Do not clamp the steam lever / steam key during operation.
Replace a damaged steam hose immediately with a steam hose as recommended by the manufacturer.
Do not steam any objects which contain harmful substances (e.g. asbestos).

Only operate or store the device in accordance with the description or figure.
Check the device and the accessories, in particular the power supply cable, safety lock and steam hose, to make sure it is in proper safe and reliable condition before operation each time. Do not use the device if it is damaged. Replace damaged components immediately.
Only switch on the device when water is present in the steam boiler. The device may otherwise overheat, see the Troubleshooting chapter of the operating instructions.
Accidents or damage due to the device falling over. Before all actions with or on the device, you must make sure that it is stable.

warning ATTENTION

Do not operate the device at temperatures below 0°C.
Never leave the device unsupervised while it is connected to the mains.
Do not use the appliance as a humidifier or heater.
Ensure the room is well ventilated when working with the appliance and afterwards.
Protect the device from rain. Do not store the device outdoors.
Device damage. Never pour solvents, liquids which contain solvents or diluted acids (e.g. cleaning agent, petrol, paint thinner and acetone) into the boiler / water reservoir.

Note

Refilling water

Switch off the appliance.
Allow the appliance to cool down.
Unscrew the safety lock.
Drain the water completely out of the steam boiler.
Fill a maximum of 1 l distilled water or tap water into the steam boiler.
Insert the safety lock.

In order to guarantee stability, place the device on a firm, flat surface.
Do not carry the device when performing cleaning work.

Care and service

Have repair work carried out by the authorised customer service only.

warning ATTENTION

Do not fill with any cleaning agents or other supplements.
Do not use vinegar or similar agents.

Descaling the steam boiler

Never screw the safety lock onto the device while descaling.
Do not use the steam cleaner while there is descaler in the boiler.

warning ATTENTION

The descaler may corrode sensitive surfaces. Work carefully when filling and emptying the steam cleaner with descaler.

Intended use

Only use the appliance in private households. The appliance is intended for cleaning with steam and can be used with appropriate accessories as described in these operating instructions. Detergents are not required. Observe the safety instructions.

Accessories and spare parts

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely. Information on accessories and spare parts can be found at www.kaercher.com.

Scope of delivery

The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

Safety devices

Missing or modified safety devices
Safety devices are provided for your own protection.
Never modify or bypass safety devices.

Symbols on the appliance
(according to type of appliance)

	Risk of burns, surface of appliance becomes hot during operation
	Risk of scalding from steam
	Read operating instructions

Pressure controller
The pressure controller keeps the pressure in the steam boiler as constant as possible during operation. The heating is switched off when the maximum operating pressure is reached in the steam boiler and is activated if there is a pressure drop in the steam boiler as a result of a steam removal.

Safety lock
The safety lock seals the steam boiler from the steam pressure present. If the pressure regulator is defective and overpressure occurs in the steam boiler, an pressure relief valve opens in the safety lock and steam leaks out through the lock.
Prior to restarting the appliance, contact the responsible KÄRCHER Customer Service.

Safety thermostat
The safety thermostat prevents the device from overheating. If the pressure controller fails and the device overheats, then the safety thermostat switches the device off. To reset the safety thermostat, contact the responsible KÄRCHER Customer Service.
