INSTALLATION INSTRUCTIONS
SERIES STH CLUSTER SPEAKER ASSEMBLY
WITH ELUXA LED STROBE (INDOOR)
Use this product according to these instructions. Please keep these instructions for future reference.
GENERAL:
The Wheelock STH Cluster Speaker/Strobe Assembly is designed for indoor ceiling mount, in high ambient
noise level environments. The Cluster Speaker/Speaker Strobe is a speaker/visual alerting system, equipped
with up to 4 UL Listed STH-15SR supervised horn loudspeakers and a UL Listed Eluxa LED Strobe, mounted
to a NEMA galvanized steel enclosure, 10"W X 10" L X 6"D. The Strobe is mounted to a 4" deep backbox,
which is then mounted to the steel enclosure. Speakers and Strobe are pre-wired to the internal terminal
block. The speakers can be wired for one or two speaker circuit operation.
The STH-15 loudspeaker provides multiple power requirements with high dBA output at each power tap.
STH-15 offers a choice of field selectable taps, 1 to 15 Watts for either 25VRMS or 70VRMS audio systems.
The Series STH design incorporates a compression driver, mounted on a double re-entrant horn for maximum
output at minimum power across a UL rated frequency range of 400 to 4,000Hz and an anechoic range of 400
to 14,000Hz. The speaker line inputs are compatible with standard supervision of circuit wiring by a Voice
Control Panel.
A capacitor is wired in series with the multi-tap transformer for this purpose.
loudspeaker meets or exceeds the UL Standard 1480 (Speakers for Fire Protective Signaling Systems).
The Wheelock Eluxa Multi-Candela Strobes can provide a non-synchronized strobe appliance when
connected directly to a Fire Alarm Control Panel (FACP), or provide a synchronized strobe appliance when
used in conjunction with an FACP that incorporates the Cooper Wheelock sync protocol, a Dual Sync Module
(DSM), or the Wheelock Power Supply. The Eluxa Strobe Appliance is
is
enclosed in a rugged polycarbonate lens to provide maximum visibility and reliability for effective visible
signaling. All inputs are polarized for compatibility with standard reverse polarity supervision of circuit wiring
by a FACP.
MODELS AND SPECIFICATIONS:
Table 1: Indoor Cluster Speaker Models
Model
Speaker
STH-4R-ELSTC-F
4X STH-15SR
STH-3R-ELSTC-F
3X STH-15SR
STH-2R-ELSTC-F
2X STH-15SR
STH-4R-ELSTC-N
4X STH-15SR
STH-3R-ELSTC-N
3X STH-15SR
STH-2R-ELSTC-N
2X STH-15SR
NOTE: All CAUTIONS and WARNINGS are identified by the symbol
capital letters.
WARNING: PLEASE READ THESE INSTRUCTIONS CAREFULLY. FAILURE TO COMPLY WITH ANY
OF THE FOLLOWING INSTRUCTIONS, CAUTIONS AND WARNINGS COULD RESULT IN IMPROPER
APPLICATION, CANDELA SETTING, INSTALLATION AND/OR OPERATION OF THESE PRODUCTS IN
AN EMERGENCY SITUATION, WHICH COULD RESULT IN PROPERTY DAMAGE AND SERIOUS
INJURY OR DEATH TO YOU AND/OR OTHERS.
NOTES:
1.
STH-15 Horn Speakers are UL Listed for indoor use with a temperature range of 32°F to 120° F (-
0°C to 49°C) and maximum humidity of 85% RH.
PN P84327-001A
UL Listed under Standard 1638, and
Audio
Strobe Candela
Power
60 Watts
15,30,75,110,150,177
45 Watts
15,30,75,110,150,177
30 Watts
15,30,75,110,150,177
60 Watts
15,30,75,110,150,177
45 Watts
15,30,75,110,150,177
30 Watts
15,30,75,110,150,177
. All warnings are printed in bold
Copyright 2024 Cooper Wheelock, Inc. dba Cooper Notification
Each

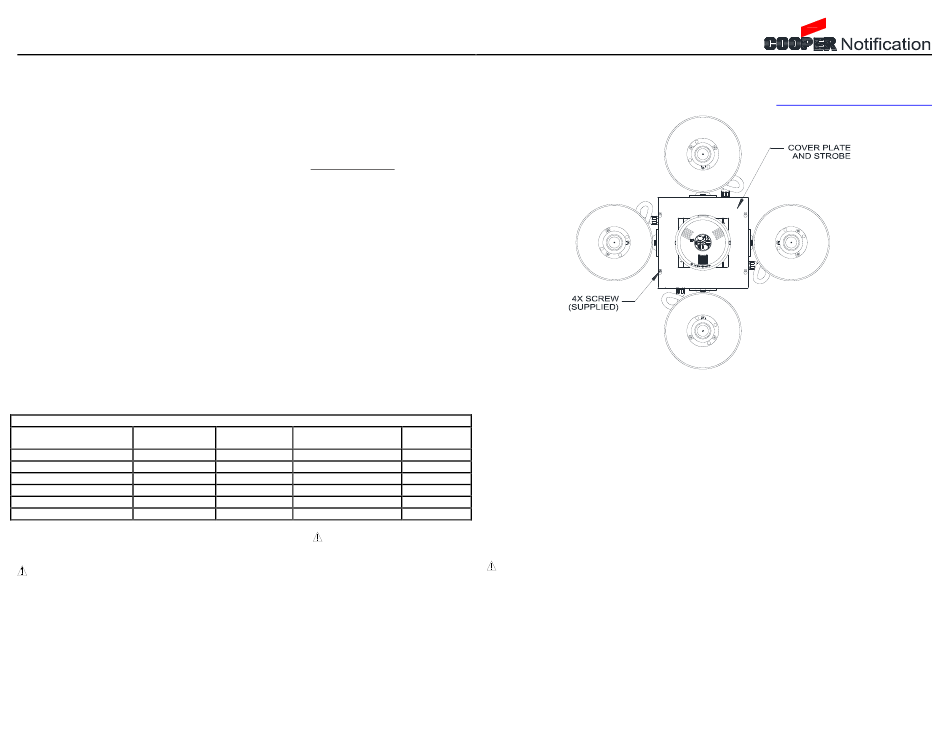

Figure 1: STH-4R-ELSTC-N Shown with Eluxa LED Strobe
SPEAKER WATTAGE SELECTOR SWITCH SETTING:
(Each Speaker is factory preset to 7.5 Watts, 70 Volts.)
1. Turn Off Power.
Strobe
2. Remove the cable entrance interface adaptor and gasket (two screws).
Lettering
3. Adjust the Speaker Wattage Selector Switch for the desired dBA per Instruction Sheet P82697.
FIRE
4. Reattach the cable entrance interface adaptor and gasket using two screws from step 1.
FIRE
FIRE
STROBE CANDELA SETTING:
---
(ELSTC strobe is factory preset to 15cd.)
---
1. Remove the cover from the ELSTC strobe (see install sheet P85756).
2. Remove ELSTC strobe from mounting plate by loosening mounting screw.
---
3. Adjust the strobe candela setting from rear per strobe Installation Instruction Sheet (P85756).
4. Place the strobe over the mounting plate. Engage TOP hook on mounting plate, then secure with screw.
5. Align cover to the strobe, so candela setting is visible. Then, snap the cover in place.
WARNING: ENSURE THE TOTAL RMS CURRENT REQUIRED BY ALL APPLIANCES THAT ARE
CONNECTED TO THE SYSTEM'S PRIMARY AND SECONDARY POWER SOURCES, NOTIFICATION
APPLIANCE CIRCUITS, DSM SYNC MODULES, COOPER NOTIFICATION'S POWER SUPPLIES, VOICE
EVACUATION PANEL, OR AUDIO BOOSTERS DOES NOT EXCEED THE POWER SOURCE'S RATED
CAPACITY OR THE CURRENT RATINGS OF ANY FUSES ON THE CIRCUITS TO WHICH THESE
APPLIANCES ARE WIRED. OVERLOADING POWER SOURCES OR EXCEEDING FUSE RATINGS
COULD RESULT IN LOSS OF POWER AND FAILURE TO ALERT OCCUPANTS DURING AN
EMERGENCY, WHICH COULD RESULT IN PROPERTY DAMAGE AND SERIOUS INJURY OR DEATH TO
YOU AND/OR OTHERS.
273 Branchport Ave.
Long Branch, N.J. 07740
(800) 631-2148
Eaton.com/Lifesafetynotification
Page 1
