Build Document last updated july 2024
Version 1.0 2024
The Beverly BitCrusher uses an analog-to-digital converter to turn the
signal into a true 8-bit representation. You can change the sample rate
from high to low - clean to crushed. It also has a blend control so that
you can mix the crushed sound with the clean guitar signal.
Have fun building and playing the Beverly BitCrusher!

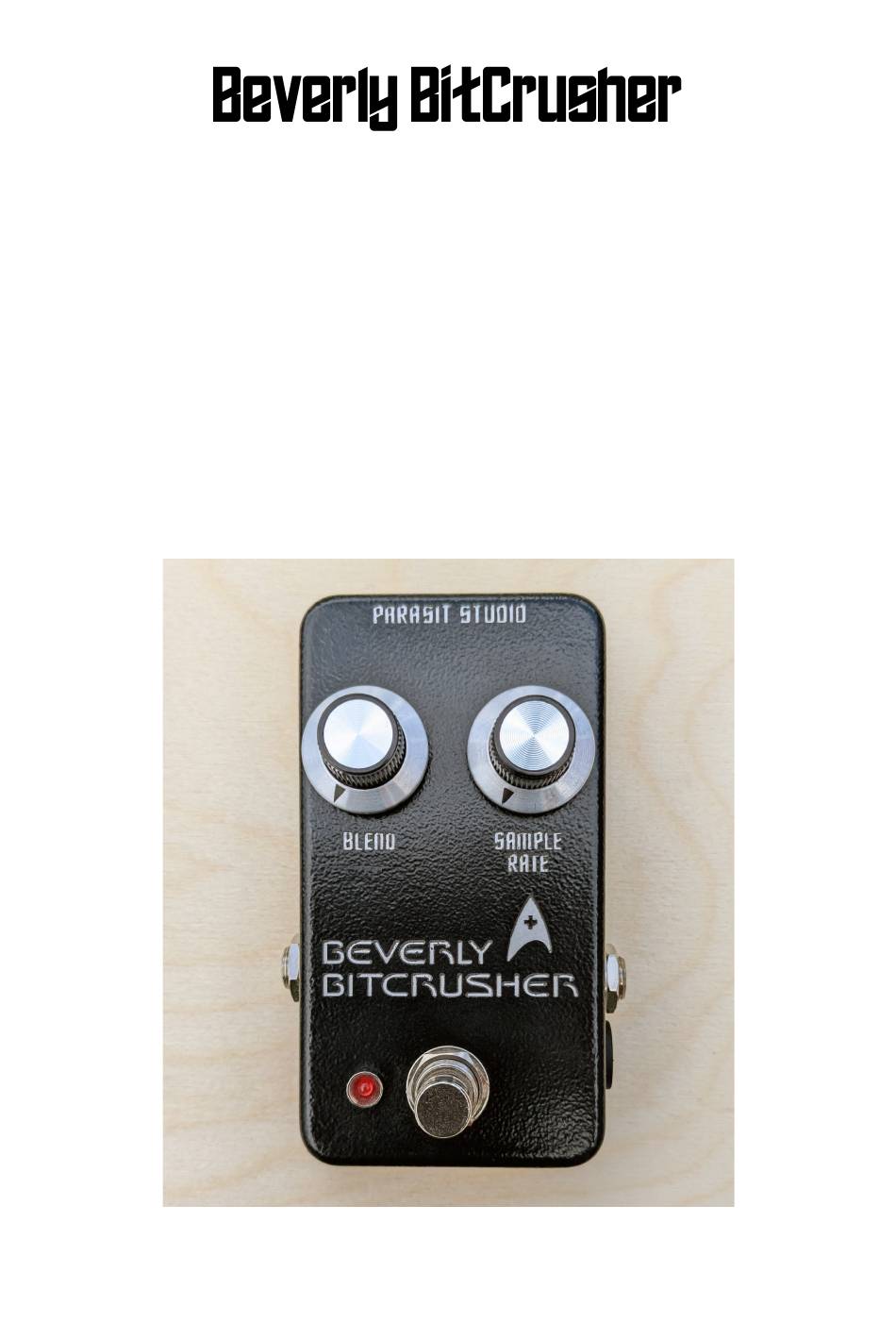

Prototype build

Advertisement

loading
Need help?

Need help?

Do you have a question about the Beverly BitCrusher and is the answer not in the manual?

Questions and answers

Summary of Contents for PARASIT STUDIO Beverly BitCrusher

  • Page 1 Build Document last updated july 2024 Version 1.0 2024 The Beverly BitCrusher uses an analog-to-digital converter to turn the signal into a true 8-bit representation. You can change the sample rate from high to low - clean to crushed. It also has a blend control so that you can mix the crushed sound with the clean guitar signal.
  • Page 2 Power Input voltage - 9V DC Current draw - 14mA Controls Potentiometers Blend – blends between the clean signal and the bitcrushed signal • • Sample rate – controls the ADC frequency The populated PCB Here's a 3D render approximation of what the fully populated board should look like (without the potentiometers).
  • Page 3 General building tips • Just follow the Bill of Materials and solder the low profile components first. Recommended order: resistors and diodes, chip sockets, resistor ladders, trim pot, multilayer and ceramic capacitors, film box capacitors, electrolytic capacitors, pots and switches, offboard wiring (jacks and the 3PDT switch).
  • Page 4 Beverly BitCrusher (Bill of Materials) Resistors Capacitors IC's 100nF LM324 100nF ADC0804LCWM 10nF 100pF Potentiometers 220pF BLEND B25K 47uF SAMPLE RATE B100K 100uF 100nF ** GAIN (trimpot) 500K Diodes Resistor Ladder 150K 1N4001 1x 4610X-R2R-103LF 1x LED (bypass) 100K 2.2K Voltage regulator 4.7K*...
  • Page 5 Drill Template (1590B) • Use at your own risk! This template is approximate. • Make sure your printer isn't doing any scaling (100% print size). • Jacks are measured from the edge at the front/top of the enclosure (as they were drilled on the prototype), but you can drill the positions for the footswitch, DC jack and input/output jacks to your own preference.
  • Page 6 Off Board Wiring The top row of connections on the 3DPT daughterboard connects directly across to the main PCB as shown. → Input jack sleeve ”S” IN pad the lug that connects with the inner ring of the jack → Input jack tip ”T”...
  • Page 7 Schematic...
  • Page 8: Troubleshooting

    Take your time and don't rush. Take a break now and then. Use good solder, and it helps to have a decent soldering station insted of a cheap iron. If you are still having trouble, please visit the madbean forum Parasit Studio subforum section and ask for help there. http://www.madbeanpedals.com/forum/index.php?board=84.0 If you have bought the Musikding kit and have recieved a faulty or missing component, please contact musikding directly.
