Into the Unknown have alot of controls which could be confusing to operate at first.

This is a detailed explanation of how the controls work and a guide to some of my

favourite settings. But I encourage you to experiment and find your own favourite

settting. There are alot of possibilites. Enjoy your pedal!

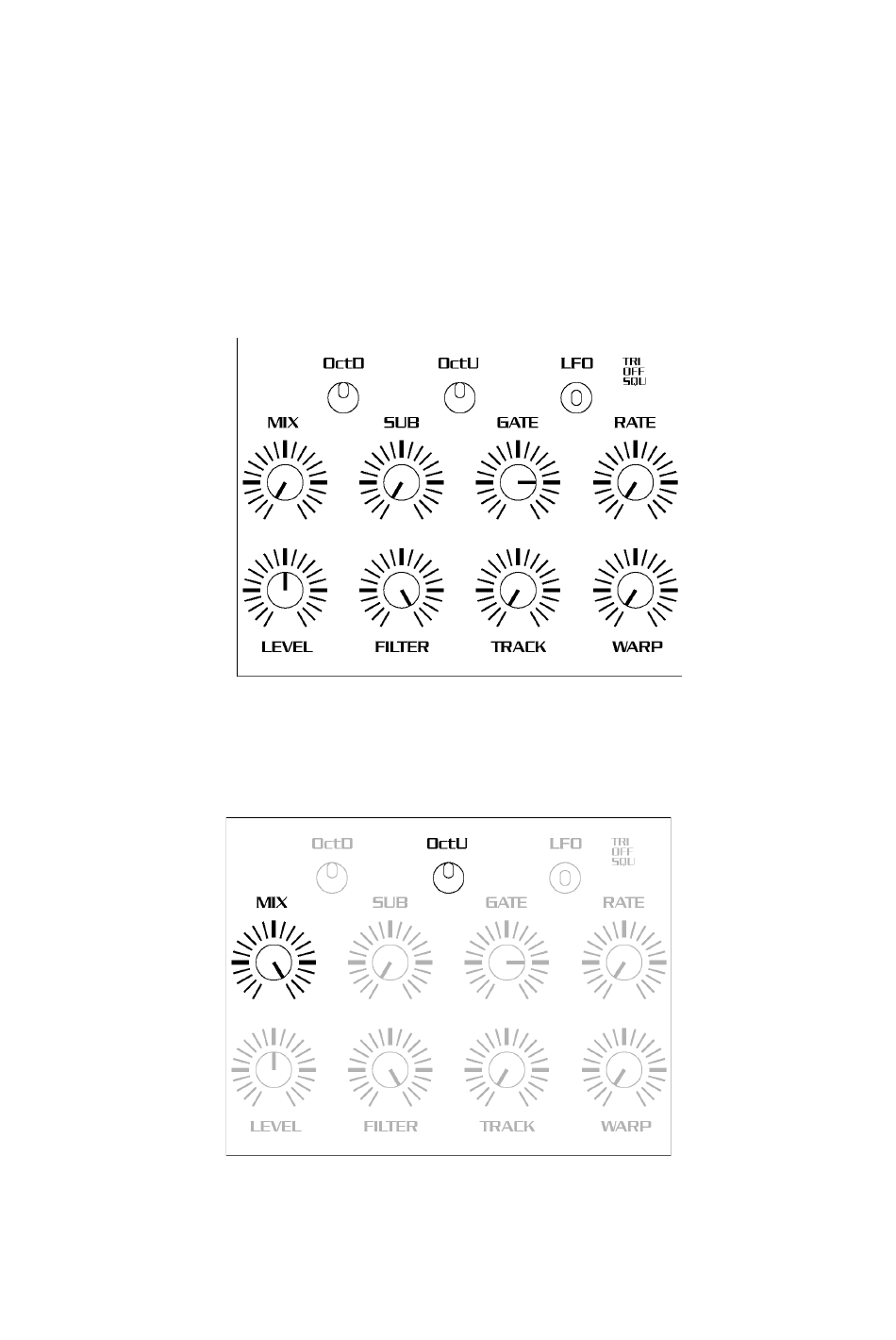

1. Fuzz - this setting will give you a good starting point.

MIX – This control blends between straight square wave fuzz and the

synthesized VCO signal coming from the CD4046 PLL chip.

OctU switch – The VCO signal will be one or two octaves up depending on

the switch (down position – one octave up, up position – two octaves up).

Guitar Synthesizer Deluxe

User guide v.10

CONTROLS

Table of Contents

Do you have a question about the INTO THE UNKNOWN and is the answer not in the manual?

Page 1 Guitar Synthesizer Deluxe User guide v.10 Into the Unknown have alot of controls which could be confusing to operate at first. This is a detailed explanation of how the controls work and a guide to some of my favourite settings. But I encourage you to experiment and find your own favourite settting.
Page 2 The VCO signal are also affected by the LFO, Track and Warp controls. More about that later... SUB – This controls how much octave down you add to the signal. OctD switch – Toggles between one or two octaves down (down position – two octaves down, up position –...
Page 3 3. Theremin setting - turn up both Track and Warp for theremin'esque sounds. You can blend in alittle fuzz with the mix pot or octave down with the sub pot for a cool effect. TRACK – This control the tracking speed of the VCO signal. Turn it up for a slow attack and decay of the octave up.
Page 4 RATE – Controls the speed of the LFO. The LFO only affects the VCO signal. Both track and warp has a strong affect on the character of the modulation. The OctU switch sets the frequency range. 4. Fuzz Flanger – put the LFO switch in the triangle wave (up) position. In this case the Mix pot acts as a depth control for the modulation.
Page 5 When playing around with the oscillation, here is where the filter shines. Turn it for a great sweeping effect. LEVEL – Controls the overall output. SCHEMATIC DIAGRAM www.parasitstudio.se...
