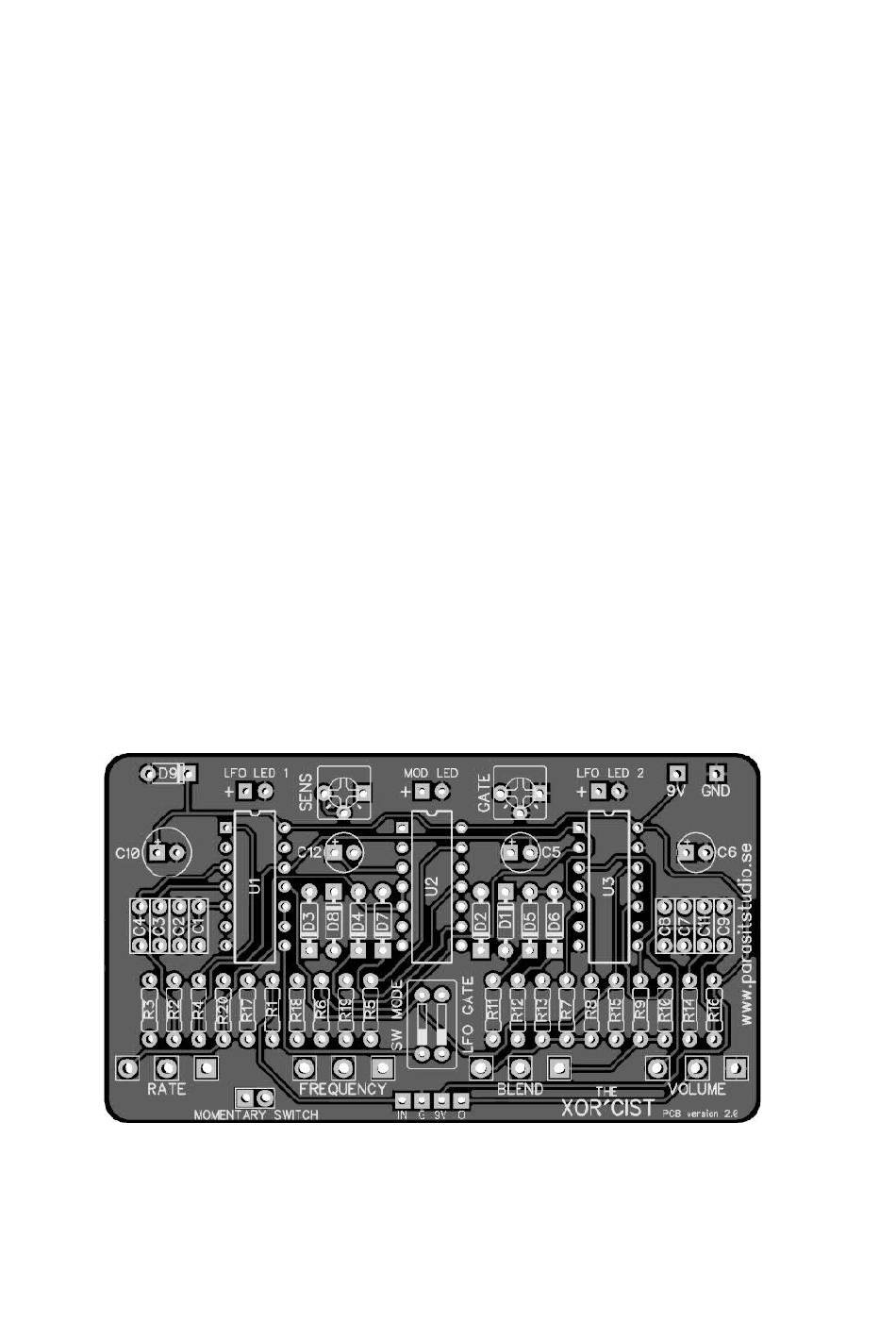

The XOR'CIST
Build Document last updated june 2017
for PCB version 2.0
The Xor'cist is a glitchy and gated fuzz. But it's also a ringmodulator
with a squarewave modulation feature.
The modulation can be set to either alternate between fuzz and
ringmod sounds or create a choppy type of on/off tremolo/stutter.
It sounds like hell...
Happy building and playing!
Advertisement
Table of Contents
Related Manuals for PARASIT STUDIO Xor'cist
Summary of Contents for PARASIT STUDIO Xor'cist
- Page 1 The XOR'CIST Build Document last updated june 2017 for PCB version 2.0 The Xor'cist is a glitchy and gated fuzz. But it's also a ringmodulator with a squarewave modulation feature. The modulation can be set to either alternate between fuzz and ringmod sounds or create a choppy type of on/off tremolo/stutter.
- Page 2 Changelog version 2.0 • Trimmed down and optimized circuit - all switches, except the momentary one, has been removed. Most functions remains, except the 3-way tone selector. • Input stage redesigned to prevent oscillation issues that some people was having. •...
- Page 3 SPST switch, which connection goes to which lug on the switch doesn't matter. Please note: If you are using the Parasit Studio 3PDT-board, you only need to connect your DC jack to either the 9V and GND connections on the main board or on the 3PDT-board, not to both.
- Page 4 The XOR'CIST Bill Of Materials (BOM) Resistors 15K* IC's 15K* CD4069UBE Capacitors CD40106BE 100nF CD4070BE 2.2nF Potentiometers 4.7nF VOLUME A100K 100nF BLEND B50K 100K 2.2uF FREQUENCY B50K 100K RATE C50K 100K 100nF Gate trim trimpot 100K 100K 100nF Sensivitity trimpot 200K...
- Page 5 Drilling template (1590BB) • Use at your own risk! This template is approximate. • Make sure your printer isn't doing any scaling / is set to 100% print size. • Drill footswitch, rec and play switches, DC jack and input/output jacks to your own preference. There is room for the DC jack at the top side.
- Page 6 Schematic...
- Page 7 Terms of use PCB's from Parasit Studio are intended for DIY use only. Commersial resale is not allowed. It's meant for personal use, which means that it's not allowed to build alot of pedals and sell them for profit to strangers using public forums and craiglist ads.
