PARASIT STUDIO 8-BITAR Build Document

8-BITAR

Build Document last updated march 2018

for PCB version 1.0

The 8-Bitar (Åtta bitar) is a minimalistic octave down pedal.

It does one octave down and has a glitchy and gated sound

reminiscent of the 8-bit era of videogaming. It's a very simple one-

knob design – a perfect build for a beginner or fans of small simple

circuits.

Have fun building!

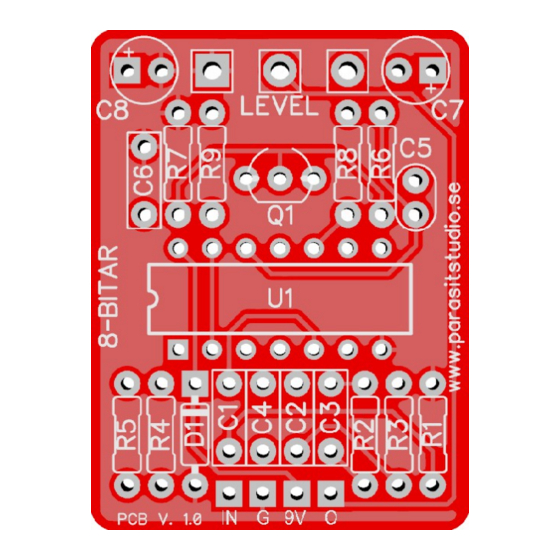

PCB dimensions: 28mm x 37.5mm

Table of Contents

Need help?

Do you have a question about the 8-BITAR and is the answer not in the manual?

Page 1 Build Document last updated march 2018 for PCB version 1.0 The 8-Bitar (Åtta bitar) is a minimalistic octave down pedal. It does one octave down and has a glitchy and gated sound reminiscent of the 8-bit era of videogaming. It's a very simple one- knob design –...
Page 2 ”offboard wiring”. You can find it here: http://www.parasitstudio.se/build-docs.html Drilling The 8-Bitar has only one knob, so drill at your own preference. It's a good fit for a 1590B enclosure, but it can also fit inside a 1590A with some careful measurement.
Page 3 8-Bitar Bill of Material (BOM) Resistors Capacitors IC's 100nF CD4069UBE 100nF 2.2nF Transistor(s) 4.7nF 2N3904 100pF Potentiometers 4.7uF LEVEL A10K 10uF 100K Diodes CLR* 4.7K-22K 1N4001 1x LED for bypass • * = Current Limiting resistor for your bypass LED. This needs to be wired offboard or together with the optional 3PDT board.
Page 4 Terms of use PCB's from Parasit Studio are intended for DIY use only. Commersial resale is not allowed. It's meant for personal use, which means that it's not allowed to build alot of pedals and sell them for profit to strangers using public forums and craiglist ads.
