Lem Elettronica DSP35SATevo Manual

Digital signal processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DSP35SATevo
DIGITAL SIGNAL PROCESSOR
Total output level max 123dBµV
50dB digital filters on adjacent channels
Single filter selectable bandwidth
Dual-stage input pre-amplifiers
LTE 700 4/5G filter technology protection
Satellite input 38 dB gain
Autotuning for automatic channel scanning
Programmable compact multi-input multiband
amplifier to digitally filter, convert and equalize
DVB-T / T2 channels. The built in high output
amplifier allow the use in medium or large multi
dwelling units.
MODEL
TV TERRESTRIAL
NUMBER OF INPUTS
INPUTS FREQUENCY RANGE
SINGLE CHANNEL FILTERS
NUMBER OF CHANNEL PER FILTER
INPUT TOTAL LEVEL RANGE
FM/DAB INPUT ATTENUATOR
VHF/UHF INPUT AMPLIFIERS
BIII/DAB/UHF INPUTS A.C.G. RANGE
DIGITAL FILTERS SELECTIVITY
SELECTABLE FILTER MODE
GAIN
OUTPUT LEVEL RANGE
BIII/DAB ADJUSTABLE GAIN
UHF ADJUSTABLE SLOPE
MAX TOTAL VHF-UHF OUTPUT LEVEL
MAX OUTPUT LEVEL WITH 6 MUX
MAX REMOTE POWER BIII/DAB-UHF
SATELLITE
NUMBER OF INPUT
SAT INPUT TOTAL LEVEL RANGE
GAIN
ADJUSTABLE GAIN
ADJUSTABLE SLOPE
MAX TOTAL OUTPUT LEVEL
MAX LNB REMOTE POWER
COMMON
RETURN LOSS IN/OUT
TEST OUTPUT
USB CONNECTOR
MAXIMUM CONSUMPTION
OPERATING TEMPERATURE
DIMENSIONS
4-DAB/B3-UHF
D S P 3 5 S ATe v o
.
AUTO
TUNING
4
MHz
dBµV
FM 35... 90 / DAB 35... 90 - BIII 40... 110 - UHF... 45... 110
dB
dB
dB
dB
Standard (8MHz) / Narrow (-500KHz) / Wide (+750KHz)
dB
dBµV
dB
dB
dBμV
dBμV
1
dBµV
dB
dB
dB
dBμV
dB
°C
mm
3-UHF
DSP35SAT
Digital Signal Processor
32 Programmable Digital Filters
Inputs:
1FM-1DAB/B3/UHF-2UHF-1SAT
TV Terr.Gain:
VHF 58dB - UHF 68dB
.
TV Terr. Total Output Level Max: 123dBµV
TV Terr. Output level range: 96...116dBµV
Satellite Gain:
Satellite Total Output Level:
5-FM
RED
COMPLIANT
LEM USB
DSP35SATEVO
1 FM; 1 VHF/UHF; 2 UHF
FM (87.5... 108) / DAB (170... 240)
VHF (170... 230) - UHF (470...694)
32
1 (with channel to channel conversion)
30 (adjustable 0... -30)
0/+15/+30
40 dB
≥50 (Adjacent channels)
VHF 58 - UHF 68
96... 116
0... -10
0... -10
123 (IM3 DIN 45004B - 60 dBc)
116
12V / 24V 100 mA
950... 2.150MHz
60... 100
38
0... -15
0... -7
119
13/18V 22KHz 600mA
>12
1 (-30 dB)
USB 1.0 / 2.0 Type B
20Vcc 0,45A-9 W (+ Remote power)
-5... 50
193 x 149 x 36
0/13/18V
22KHz
600 mA
2-UHF
1-SATELLITE
950... 2.150MHz
evo
38 dB
Download
LEM USB
119dBµV
LTE
700
TEST
SMATV
-30dB
OUT
DC
WARRANTY
YEARS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSP35SATevo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lem Elettronica DSP35SATevo

Summary of Contents for Lem Elettronica DSP35SATevo

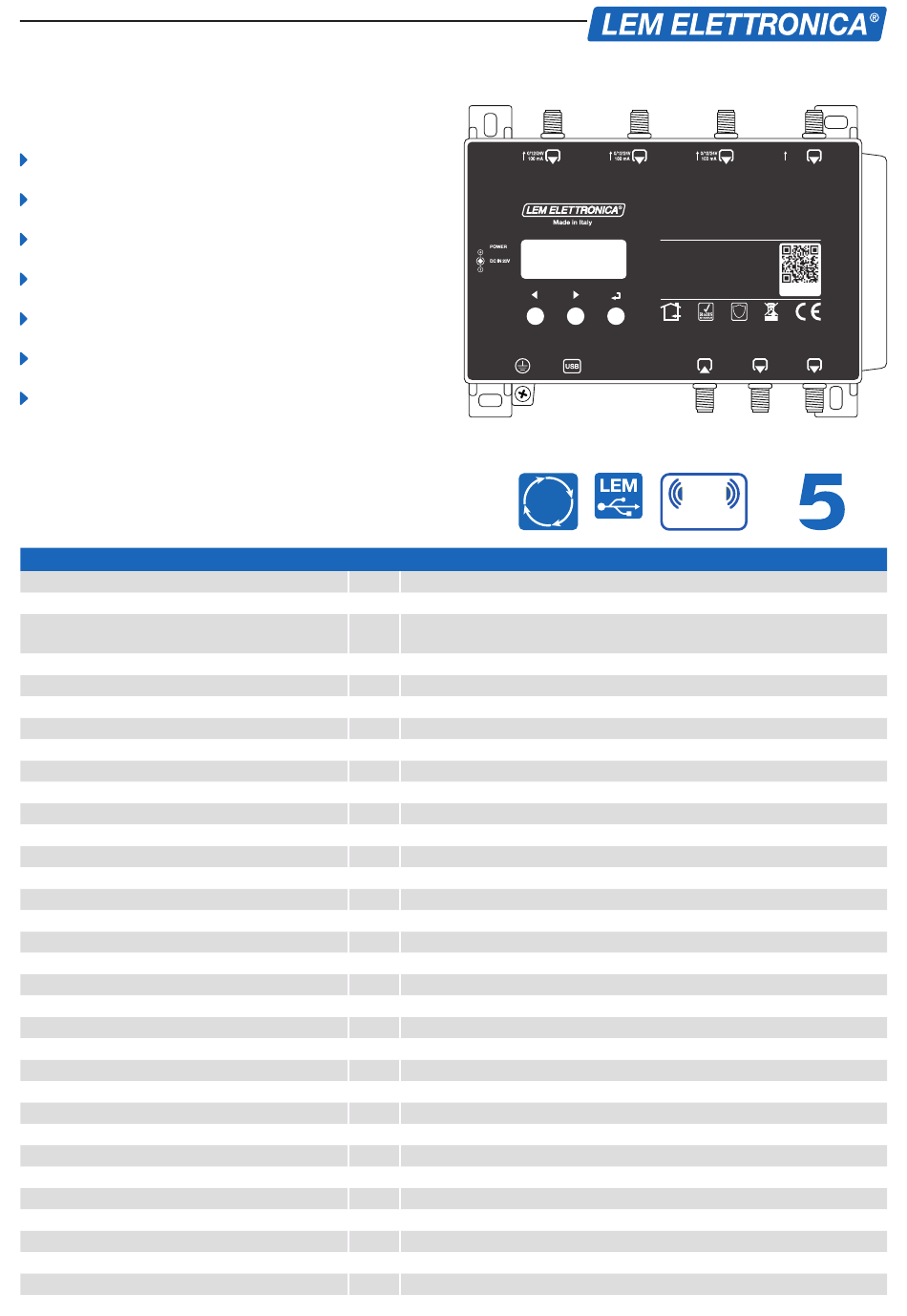

  • Page 1 DSP35SATevo DIGITAL SIGNAL PROCESSOR Total output level max 123dBµV 0/13/18V 22KHz 600 mA 4-DAB/B3-UHF 3-UHF 2-UHF 1-SATELLITE 950... 2.150MHz 50dB digital filters on adjacent channels DSP35SAT Digital Signal Processor Single filter selectable bandwidth 32 Programmable Digital Filters D S P 3 5 S ATe v o...

  • Page 3: Package Contents

    Pictograms / symbols description The DSP35SATevo amplifier is covered by an extended 5-year warranty from the WARRANTY YEARS date of manufacture. The programmable amplifier complies with the RED 2014/53/EU directive. COMPLIANT The DSP35SATevo amplifier can also be programmed via a free graphic application available for Windows and Android OS.

  • Page 4: Installation Warnings

    Installation warnings - Use only the supplied power supply unit. - To ensure adequate cooling and ventilation, the DSP35SATevo unit and power supply unit must be securely fixed to a vertical wall. - To avoid the risk of fire or electrocution, do not expose the products to rain or moisture.

  • Page 5: Connection Diagram

    Connection Diagram DAB/B3 0/13/18V 22KHz 600 mA 4-DAB/B3-UHF 3-UHF 2-UHF 1-SATELLITE Alimentatore 950... 2.150MHz YS50-2002500 DSP35SAT INPUT: 100-240VAC 50/60Hz Digital Signal Processor 32 Programmable Digital Filters D S P 3 5 S ATe v o OUTPUT: 20VDC 2.24A Max Inputs: 1FM-1DAB/B3/UHF-2UHF-1SAT TV Terr.Gain: VHF 58dB - UHF 68dB...

  • Page 6: Device Programming

    Device Programming The DSP35SATevo programmable amplifier can be configured in two different ways: 1) using the display and navigation keys integrated into the control unit. 2) using the application LEM USB available for Android OS and Windows OS. LEM USB for Android can be downloaded from Google Play.
  • Page 7 To speed up programming operations, it is possible to use the AUTO-TUNING function. By activating this function, the DSP35SATevo amplifier will scan the inputs and automatically store the DVB-T/T2 signals present on the antenna. The remote power supply voltage is activated automatically only if a current draw is detected, indicating the presence of an external preamplifier or an active antenna.

  • Page 8: Manual Programming

    Manual programming To start manual programming, select MAN using the ∇ key T U N I N G and press ⏎. A U TO M A N INPUT SATELLITE (1) Press ⏎ to enter the menu to set the SAT input parameters. I N ( 1 ) S AT REMOTE POWER SUPPLY Press ⏎...

  • Page 9: Remote Power

    INPUT (2) UHF Press ⏎ to enter the menu to set the UHF (2) input I N ( 2 ) U H F parameters. REMOTE POWER To enable or disable the remote power feed from input (1) I N ( 2 ) U H F press ⏎...
  • Page 10 CHANNEL CONVERSION To convert a Channel to a different channel from the one > 2 3 - > 3 4 A 0 6 1 received as input, place the pointer ..under the output A D D 1 C H filter and select the channel number using the ∇...
  • Page 11 INPUT (3) UHF To set the input parameters (3) press ⏎ and access I N ( 3 ) U H F the menu. For programming, follow the instructions described for INPUT (2) UHF. INPUT RANGE OUTPUT RANGE E21÷E48 E21÷E69 INPUT (4) DAB/B3-UHF The input (4) can filter B3 (E5...

  • Page 12: Output Level

    OUTPUT LEVEL Press ∇ to select the OUTPUT menu and confirm with O U T P U T ⏎ to access the amplifier output level setup. To set the output level, press ⏎ and use the ∇ ∆ keys to O U T P U T change the numerical value.

  • Page 13: Advanced Settings

    ADVANCED SETTINGS A D VA N C E D PROTECTION PASSWORD Select PASSW, press ⏎ and use the ∇ ∆ keys to choose A D VA N C E D the numerical value of the first digit on the right and confirm >...
  • Page 14 SERIAL NUMBER The number series to the right of SRNBR represents the M O N I TO R : O F F serial number of the product. > S R N B R : 1 2 3 4 5 To return to the main level menu from any submenu, press and hold the ∇ ∆ RESET If you wish to delete all settings and restore the control R E S E T...
  • Page 15 The LEM USB application requires at least Windows 7 operating system or higher. Setup 1 Power up the control unit and wait for the LCD display to show DSP35SATevo. 2 Connect the USB port type A of the Windows OS personal computer to USB type B port integrated in the DSP35SATevo unit using standard USB A-B cable.
  • Page 16 Label with serial and tracking data Model Serial # Manuf. Manuf. Week Year Rel. Rel. REL. 250108 LEM ELETTRONICA srl Via Grezze, 38 - 25015 Desenzano d/G Italy Tel. +39 0309120006 info@lemelettronica.it...
