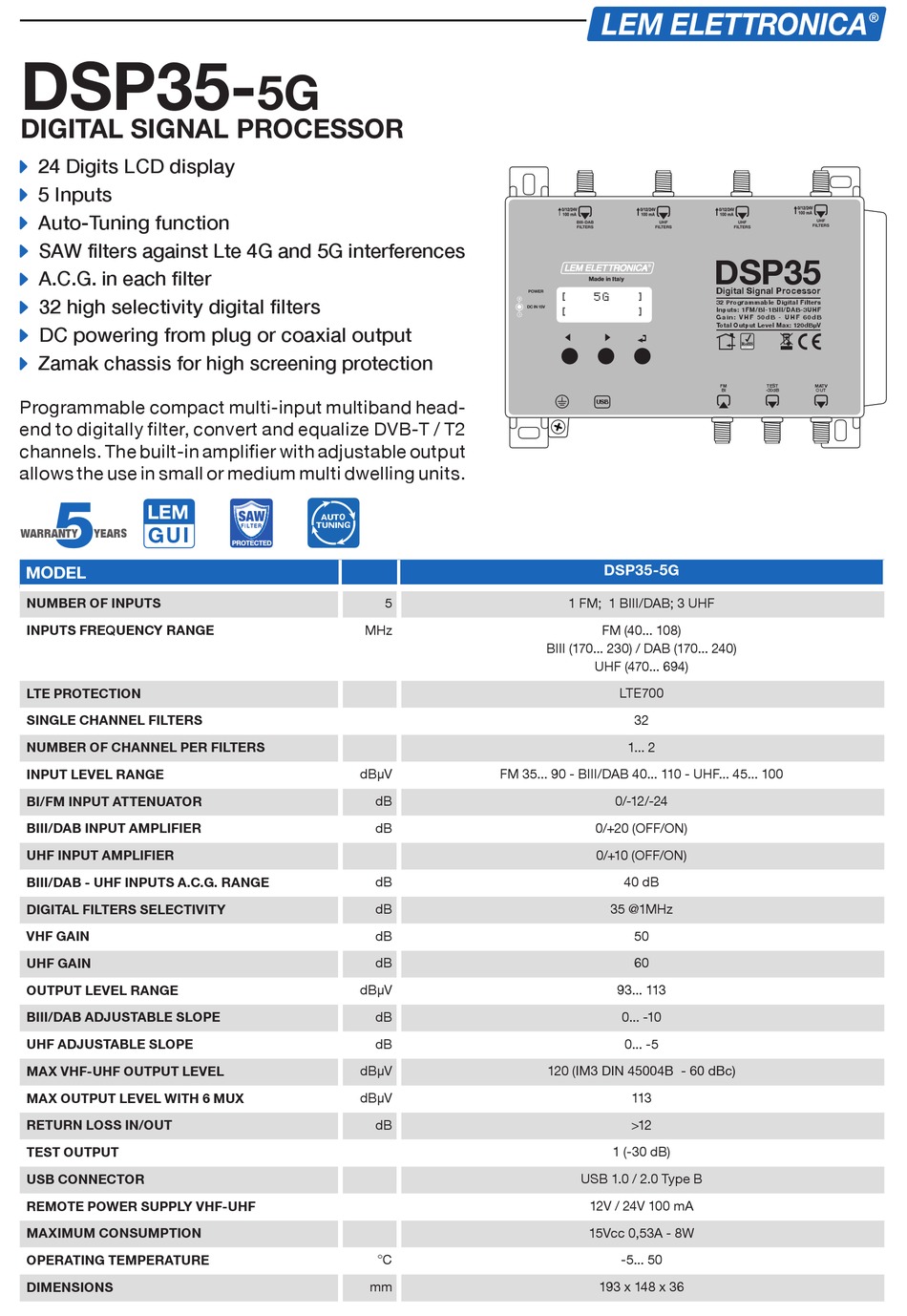

DSP35-
DIGITAL SIGNAL PROCESSOR
24 Digits LCD display
5 Inputs
Auto-Tuning function
SAW filters against Lte 4G and 5G interferences
A.C.G. in each filter
32 high selectivity digital filters
DC powering from plug or coaxial output
Zamak chassis for high screening protection
Programmable compact multi-input multiband head-
end to digitally filter, convert and equalize DVB-T / T2
channels. The built-in amplifier with adjustable output
allows the use in small or medium multi dwelling units.
LEM
GUI
WARRANTY YEARS
MODEL
NUMBER OF INPUTS
INPUTS FREQUENCY RANGE
LTE PROTECTION
SINGLE CHANNEL FILTERS
NUMBER OF CHANNEL PER FILTERS
INPUT LEVEL RANGE
BI/FM INPUT ATTENUATOR
BIII/DAB INPUT AMPLIFIER
UHF INPUT AMPLIFIER
BIII/DAB - UHF INPUTS A.C.G. RANGE
DIGITAL FILTERS SELECTIVITY
VHF GAIN
UHF GAIN
OUTPUT LEVEL RANGE
BIII/DAB ADJUSTABLE SLOPE
UHF ADJUSTABLE SLOPE
MAX VHF-UHF OUTPUT LEVEL
MAX OUTPUT LEVEL WITH 6 MUX
RETURN LOSS IN/OUT
TEST OUTPUT
USB CONNECTOR
REMOTE POWER SUPPLY VHF-UHF
MAXIMUM CONSUMPTION
OPERATING TEMPERATURE
DIMENSIONS
5G
AUTO
TUNING
5
MHz
dBµV
dB
dB
dB
dB
dB
dB
dBµV
dB
dB
dBμV
dBμV
dB
°C
mm
1 2
BIII-DAB UHF
FILTERS FILTERS
POWER
[ 5 G ]
DC IN 15V [ ]
USB
DSP35-5G
1 FM; 1 BIII/DAB; 3 UHF
FM (40... 108)
BIII (170... 230) / DAB (170... 240)
UHF (470... 694)
LTE700
32
1... 2
FM 35... 90 - BIII/DAB 40... 110 - UHF... 45... 100
0/-12/-24
0/+20 (OFF/ON)
0/+10 (OFF/ON)
40 dB
35 @1MHz
50
60
93... 113
0... -10
0... -5
120 (IM3 DIN 45004B - 60 dBc)
113
>12
1 (-30 dB)
USB 1.0 / 2.0 Type B
12V / 24V 100 mA
15Vcc 0,53A - 8W
-5... 50
193 x 148 x 36
4
3
UHF
UHF
FILTERS
FILTERS
DSP35
Digital Signal Processor
32 Programmable Digital Filters
Inputs: 1FM/BI-1BIII/DAB-3UHF
G a i n : V H F 5 0 d B - U H F 6 0 d B
Total Output Level Max: 120dBµV
FM TEST MATV
BI -30dB OUT
