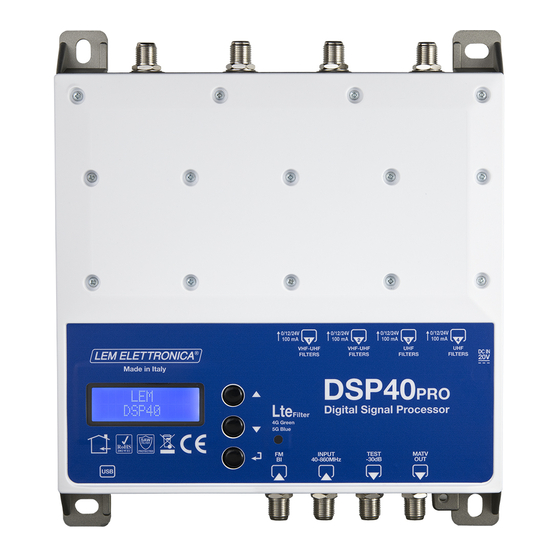

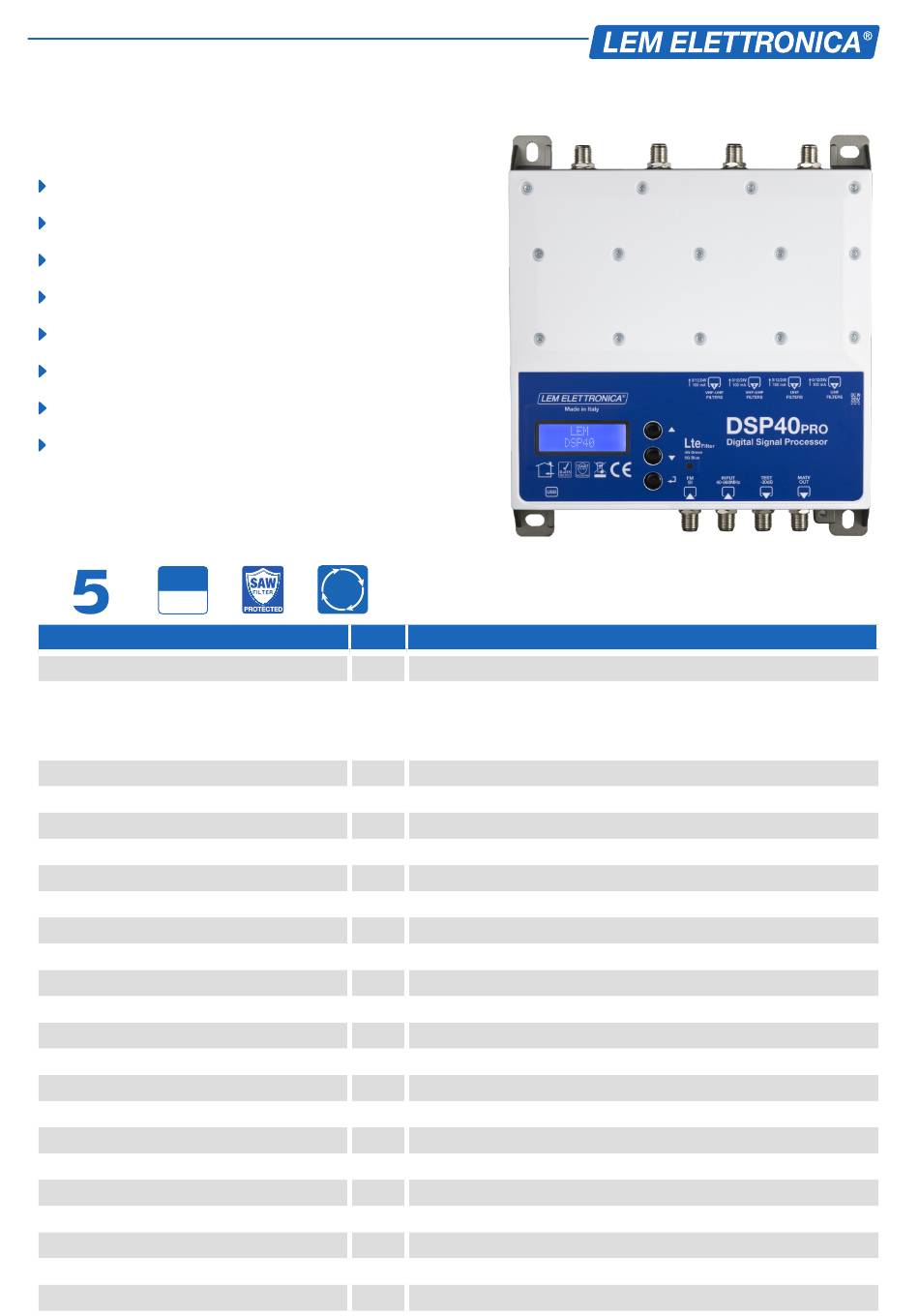

Lem Elettronica DSP40PRO Manual

DSP40PRO
DIGITAL SIGNAL PROCESSOR
24 Digits LCD display
Additional AUX input
Auto-Tuning function
Maximum Output Level 124dBµV
Selectable Lte 4G/5G SAW filters
Up to 64 High Selectivity Filters with ACG
Converts up to 32 single channels
Zamak die casting chassis
High selectivity programmable compact headend
to digitally filter, convert and equalize DVB-T / T2
channels. The built in high output amplifier allow the
use in medium and large installation plants.
LEM
GUI
WARRANTY YEARS
MODEL
NUMBER OF INPUTS
INPUTS FREQUENCY RANGE
SINGLE CHANNEL FILTERS
NUMBER OF CHANNEL PER FILTERS
INPUT LEVEL RANGE
FM INPUT ATTENUATOR
AUX ATTENUATOR
BIII-DAB / UHF ATTENUATORS
A.C.G. RANGE
SELECTIVITY
INTERSTAGE ATT. (1 dB STEP ADJUST.)
FM GAIN
AUX GAIN
VHF GAIN
UHF GAIN
MAX OUTPUT LEVEL
RETURN LOSS IN/OUT
TEST OUTPUT
USB CONNECTOR
REMOTE POWER SUPPLY VHF-UHF
POWER SUPPLY
OPERATING TEMPERATURE
DIMENSIONS
AUTO
TUNING
6
MHz
dBµV
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dBμV
dB
230 VAC +/-20% 16W Max (External power supplier DC 20 Volt 2,25A)
C°
mm
DSP40PRO
1 FM; 1 AUX; 2 BIII-DAB/UHF; 2 UHF
FM (40... 108 MHz)
AUX (40... 862MHz)
VHF (170... 240 MHz)
UHF 470... 694/790/862
32
1... 2
FM 35... 90 - BIII/DAB 40... 110 - UHF... 40... 110
FM 0...-30
0... -20
0... -20
40 dB
35 @1MHz
0...-20
45
40
40
50
124 (IM3 DIN 45004B - 60 dBc)
>12
1 (-30 dB)
USB 1.0 / 2.0 Type B
12V / 24V 100 mA
-5... 50
192 x 217 x 37
Firmware rel. 1.3
Hardware rel. 1.0
