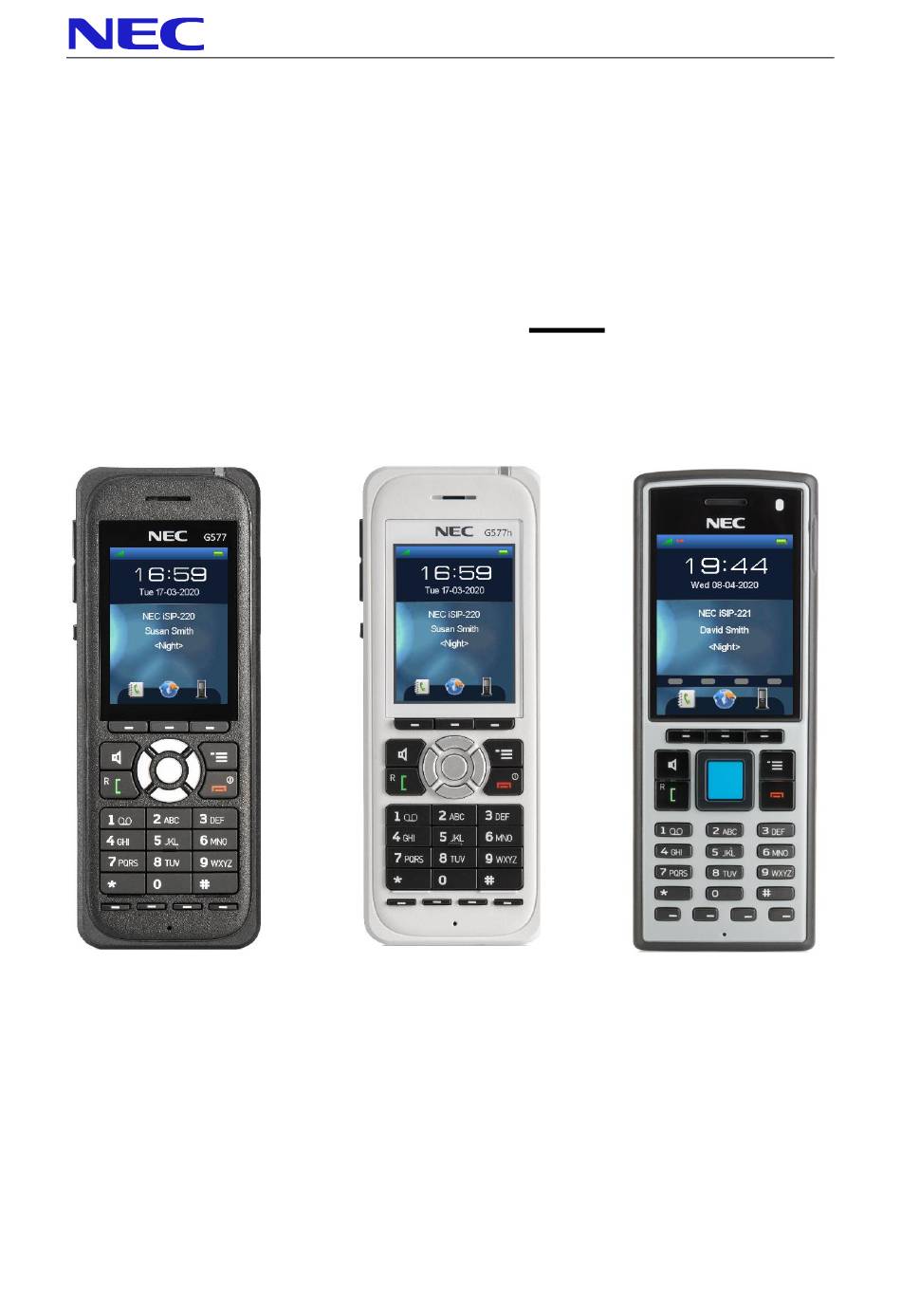

- Page 1 Basic User Guide G577 and I766 DECT Handsets with NEC ISIP IP DECT R6.8.1 G577 G577h I766 NDA-31997 Version 4.4 / 04-2021...
- Page 2 Important Information The introduction of iSIP allows using the 4 linekeys (function keys) of the handsets following the use of the linekeys of NEC´s keyphones. Note that the virtual linekey 5 or 6 can also be used for Call Reject or Call Redirect.
- Page 3 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Index of contents Important Information ..........................2 General ..............................3 Answer a call ............................4 Call Reject ............................. 5 Call Redirect ............................6 Initiate an internal call ........................... 7 External outgoing calls ..........................
- Page 4 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Answer a call Display shows Display shows “CALL FROM” “TALKING TO” [Name/Number] [Name/Number] Handset is Details about Press the green Details about Have the ringing...
- Page 5 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Call Reject Since IP DECT R6.6.5 it is possible to reject an incoming call: provided that the PBX SW version also supports this and the DND (03) key is programmed as virtual key (5 or 6) Description: When you have an incoming unanswered call pressing the red button will reject the call.
- Page 6 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Call Redirect Since IP DECT R6.8.0 it is possible to redirect an incoming call provided that a Call Redirect (49) key is programmed as either a virtual key (5 or 6).
- Page 7 Initiate an internal call Description: Internal calls will connect you to other extensions of your NEC Telephone system without having to use trunk lines with costs involved. Your system offers two different methods to signal internal calls to other keyphones of your system: ...
- Page 8 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP External outgoing calls Description: The system offers varying procedures for external outgoing calls from your DECT Handset. The most convenient method is using a trunk access code. The trunk access code is set by your system installer and is usually 9 or 0.
- Page 9 Description: Beside the individual features of your DECT-Handset (Please refer to the individual manual of your Handset) the NEC Telephonesystem offers a centralized stored LND feature. The last number you have dialled is stored and can be newly redialled. Redial the last number ...
- Page 10 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Hold/Enquiry and Transfer Since IP DECT R6.8.0 the usage of the keys to put someone on hold, make an enquiry call, retrieve someone from hold or transfer has changed.
- Page 11 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Hold/ Enquiry call Description: Like transferring a call you place an existing conversation on hold and establish a further call to any other extension. After you finished your enquiry with the other extension, the existing call will not be transferred to this extension but you take it back and continue it.
- Page 12 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Transfer Description: If you want to pass your call to another extension, you can so with announcement (screened) or without announcement (unscreened) Transfer. With announcement means that you talk to the transfer target and inform about the waiting caller before you finally pass the call.
- Page 13 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Red-key during Hold/Enquiry and Transfer When the user has someone on hold and then presses the red-key this will result in: If ‘hold’ was initiated via the Transfer soft key: performing a transfer ...
- Page 14 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP DSS-Key (Direct Station Selection) Description: The DSS-Key gives a BLF (Busy Lamp Field) and one-button access to extensions including status indication of the extension. If the LED is off, the extension is idle. If the LED is steady on, the extension is busy.
- Page 15 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Speed Dial Description: Speed Dialling gives an extension user quick access to frequently called numbers. Instead of dialling a long telephone number, the extension user just dials the Speed Dialling code. Each Speed Dialling bin can store a number up to 24 digits.
- Page 16 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Station Speed Dial Description: Each extension has 10 personal Station Speed Dial bins where you can store internal or external numbers. Those numbers will be dialed via Servicecode plus bin number (0-9).
- Page 17 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Call Pickup Description: Call Pickup permits an extension to intercept a call that is ringing at another extension. By System- programing Extensions can be assigned to different Pickup Groups. You can use the Call Pickup for your own Pickup Group, for any other Pickup Group, for specified Pickup Group or targeted Call Pickup for a specific extension.
- Page 18 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Pickup from any other Pickup-Group via Servicecode Display shows “CALL/PU” [Name1] “TALKING TO” [Name2] An extension in Press the green Dial Servicecode First the Name...
- Page 19 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Pickup from specific Pickup-Group via Servicecode Display shows “GROUP” “NO.” An extension in Press the green Dial Servicecode Waiting for the Dial Number of...
- Page 20 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Call Forwarding Description: Call Forwarding permits an extension user to redirect their calls to another extension or an external number. Call Forwarding ensures that the user´s calls are covered when they are away from their work.
- Page 21 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Call forward to internal numbers via Servicecode Press the green Dial only 84 Dial next digit: Dial 1 to activate Dial internal button your type of Call target number“...
- Page 22 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Cancel Call forward (internal/external) via Servicecode Press the green Dial only 84 Dial next digit: Dial 0 to cancel Hang up by pressing...
- Page 23 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Follow Me Description: While at a co-worker´s desk, a user can have Follow Me to have his calls ringing at the co-worker´s extension. You can activate Follow Me from the co-worker´s extension.
- Page 24 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP DND (Do Not Disturb) Description: Do Not Disturb blocks incoming calls and Paging announcements. DND permits an extension user to work close to the telephone undisturbed by incoming calls and announcements.
- Page 25 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Callback / Camp On Description: When extension users call a co-worker that does not answer or is busy, they can leave a callback request for a return call. The user does not have to repeatedly call the unanswered extension back, hoping to find it idle.
- Page 26 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Callback via Function-Key Display shows “CAMP- ON” [Name] You called an Press Camp On Camp On Key is Hang up by After called extension and...
- Page 27 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Conference Description: Conference lets an extension user add additional inside and outside callers to their conversation. With Conference, a user can set up a multiple-party telephone meeting without leaving the office.
- Page 28 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Voicemail (InMail) Description: If your system has the optional InMail included, you can use it either via normal service-codes or, much more comfortable, with preprogrammed function keys (1 – 4) in case of iSIP.
- Page 29 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Second incoming call handling First and second call are both internal If a handset is in an internal call and receives a second internal call, then there are several options: ...
- Page 30 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Supported function keys Function Extra setup information PBX-type SV9100 SL2100 DSS/One-Touch Do Not Disturb (DND) Transfer Via soft key Conference Via soft key ...
- Page 31 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Incoming Call Queuing For External calls Message Setup 22-01-10 must be set to Manual External Call Forward by Doorphone Automatic Transfer to Department Group ...
- Page 32 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Supported service codes SV9100 SL2100 Function Extra setup information PBX-type SV9100 SL2100 Account Code 35-05 AccCode must be enabled for your COSs Alarm Clock ...
- Page 33 Basic User Guide for G577 and I766 DECT Handsets with NEC ISIP Meet-Me Answer to Specified Internal Paging Group Night Mode Switching Override (Off-Hook The following options must Signalling) be set: 20-13-05 – On 20-13-06 – Off 20-09-07 –...
