Summary of Contents for Navig8r NAV-4KCAM-461

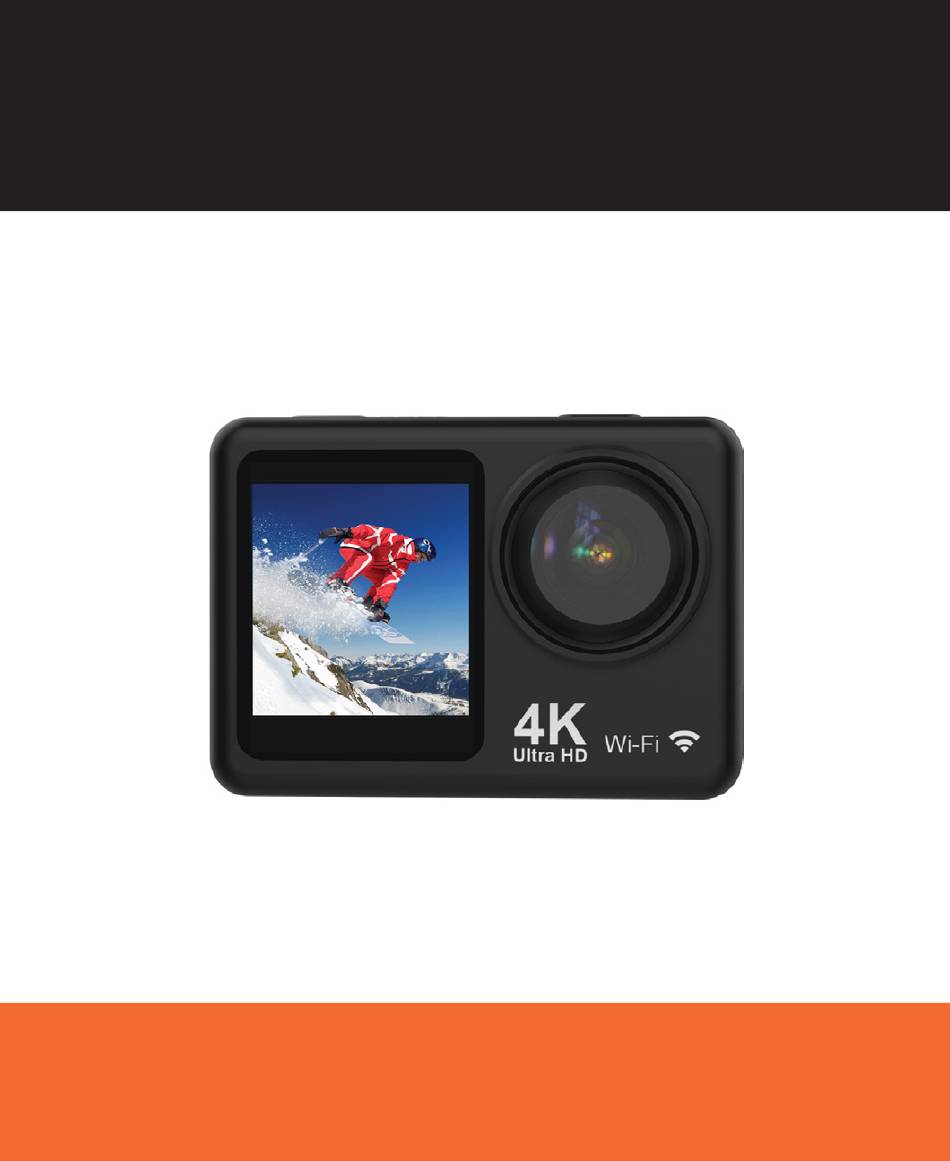

- Page 1 User Manual 4K UHD Dual Screen Action Camera NAV-4KCAM-461...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS » Avoid dropping or hitting the camera, as this may cause damage. » Keep the camera and Micro SD cards away from strong magnetic fields. These can damage the camera or erase data. » Do not expose the camera to high temperatures, direct sunlight, or extreme cold. -
Page 3: What's In The Box
WHAT'S IN THE BOX 1. 4K Camera 2. Battery (inside the camera) 3. USB-A to USB-C cable 4. Waterproof housing 5. Waterproof housing mount 6. Sleeve 7. Handlebar/pole mount 8. Adhesive clip base 9. Tripod adaptor 10. Pivot arm 11. Straps 12. - Page 4 OVERVIEW - CAMERA [OK] Shutter/Select button [MODE] Power/Mode button Up button Lens Down button Speaker Battery cover Micro SD card slot Screen USB-C port Micro HDMI port Microphone Charging Status indicator light indicator light...
-
Page 5: Waterproof Housing
WATERPROOF HOUSING Removing the Camera from the Waterproof Case 1. Lift the latch from the front. 2. Swing open the back of the case to access the camera. Tip: Before using the camera for the first time, remove it from the waterproof case to peel off the protective films on the lens and screens. -
Page 6: Battery And Charging
BATTERY AND CHARGING Installing/Removing the Battery » Open the battery door. » Align the battery according to the polarity markings and insert it. » To remove, push the battery cover open and take the battery out. Charging » Connect the camera to a power source using the USB cable. »... -
Page 7: Switching Modes
SWITCHING MODES Press the [MODE] Power/Mode button to cycle through the following modes: 1. VIDEOCAM Video Recording 2. PHOTO_CA Photo Shooting 3. DIRECTIO Slow Motion 4. SMART_DI Playback 5. SETTINGS Settings... -
Page 8: Using The Camera
USING THE CAMERA Video Recording » Ensure the camera is in Video mode ( VIDEOCAM icon displayed). » Press the OK button to start recording. The blue light will flash. » Press the OK button again to stop recording. The blue light will stop flashing. - Page 9 CONNECTIVITY HDMI Output » Connect the camera to an HDMI-compatible screen using a Micro- HDMI to HDMI cable. » All operations will display on the TV screen. PC Connection » Connect the camera to a PC using the USB-C to cable. »...
- Page 10 SETTINGS » Press the [MODE] Power/Mode button to open the Settings page. » Press OK to enter the Settings menu. » Use the [MODE] Power/Mode button to scroll through the options, then press OK to select one. » Use the / buttons to scroll through sub- settings.
- Page 11 SETTINGS General Settings Exposure -3 to +3 White Balance Auto, Sunny, Cloudy, Incandescent, Fluorescent Wi-Fi Enable/Disable Image Rotation Enable/Disable Driving Mode Enable/Disable Light Frequency Auto, 50Hz, 60Hz LED Indicator Enable/Disable Auto Screen Close, 10s, 20s, 30s Saver Auto Shutdown Close, 1min, 3min, 5min Time Watermark Enable/Disable Language...
-
Page 12: Troubleshooting
TROUBLESHOOTING Camera Doesn’t Turn On » Ensure the battery is correctly installed and fully charged. » Connect the camera to a power source using the USB cable. Wait a few minutes before attempting to turn it on. Camera Freezes or Stops Responding »... -
Page 13: Specifications
power source. » Use another adapter, power bank or USB port. Water Leaks in the Waterproof Case » Ensure the waterproof housing is properly locked before submerging. » Look for cracks or debris on the case seal. Replace the housing if damaged. - Page 14 Do not throw unwanted electronic devices with household waste. Follow local rules for battery and electronic waste disposal. For more information or to find a nearby recycling centre, visit https://recyclingnearyou.com.au. Product Support: P: (02) 9870 3388 E: support@laserco.com.au W: www.laserco.com.au/warranty...
