Summary of Contents for Vicon NEXT VNX-AC-APBK-0

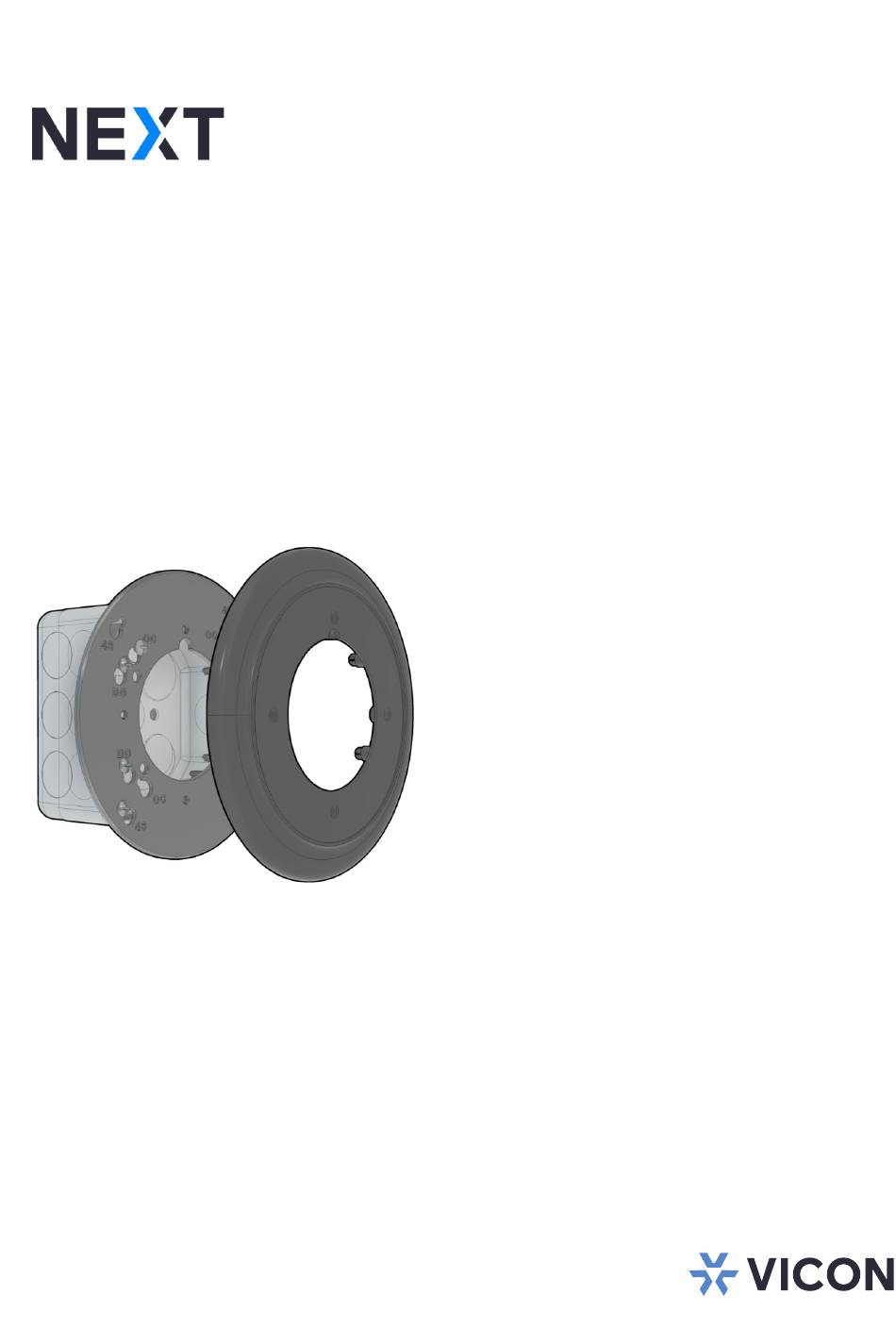

- Page 1 QUICK INSTALLATION GUIDE Electrical Box Adapter Plate...
- Page 2 WARNING • This camera operates at PoE (IEEE 802.3at minimum). • Installation and service should be performed only by qualified and experienced technicians and comply with all local codes and rules to maintain your warranty. • We are NOT liable of any damage arising either directly or indirectly from inappropriate installation which is not depicted within this documentation.
-
Page 3: Table Of Contents
IN THIS GUIDE ELECTRICAL BOX ADAPTOR INSTALLATION PACKAGE CONTENTS INSTALLATION Connect the Cables Assemble the Components Install the Camera Sensor Install the Trim Ring Error! Bookmark not defined. -
Page 4: Electrical Box Adaptor Installation
ELECTRICAL BOX ADAPTOR PLATE INSTALLATION PACKAGE CONTENTS Adapter Plate VNX-AC-APBK-0 • Adapter Plate • 6-32 Screws (2X) • Trim Ring • 8-32 Screws (4X) • M4 Screws (4X) When unpacking, check to see if there is any visible damage to the appearance of the in-ceiling and its accessories. - Page 5 3. Position the Adapter Plate on the electrical box using the respective keyhole slots for the type of electrical box, rotate the Adapter Plate to the locking position and tighten the screws. 4. Install the Trim Ring onto the Adapter Plate using the orientation indicator (semi-circle) and snap it into place.
-
Page 6: Connect The Cables
Connect the Cables 1. Connect Ethernet cable to the RJ-45 on the pigtail of the Network Hub. Connect Alarm I/O cable as required. (Use RJ-45 connector kit as required for outdoor installations.) For Outdoor Installations PIN 1 = ALARM IN – PIN 2 = ALARM IN + PIN 3 = ALARM OUT –... -
Page 7: Assemble The Components
2. Align the two lock screws on the Solo Fixture with the double dot indicators on the installed Network Hub. Twist the Solo Fixture to the right to lock it into place. The Vicon logo on the Solo Fixture is now aligned with the Base’s centerline (“C”). -
Page 8: Install The Camera Sensor
Install the Camera Sensor 1. If using edge recording for On-Prem or Anavio solutions, install a Vicon Edge Recording Card (VNX-EL-SD5G-0 or VNX-EL-SD1T-0). NOTE: Only the Vicon Edge Recording Cards are accepted (VNX-EL-SD5G-0/VNX-EL-SD1T-0). 2. Align the double dot indicators on the Camera Sensor with the two lock screws... - Page 9 3. Upon successful power-up, the LED lightbars on the Camera Sensor will sequence. 4. Turn the security screw approximately 2 turns maximum until it contacts the Base and Camera Sensor. This prevents the camera from being removed. No torque is required .
- Page 10 24-Hour Technical Support: 800-34-VICON (800-348-4266) Vicon Industries Inc. does not warrant that the functions contained UK: 44/(0) 1489-566300 in this equipment will meet your requirements or that the operation Toll Free: 800-645-9116 will be entirely error free or perform precisely as described in the documentation.
