IQM-GBA Alliance-mx Dome
Electrical Gang Box Adapter
Installation Instructions
This Quick Install Guide covers the IQM-GBA Flush Ceiling mount for the Alliance-mx camera domes. Be sure to go
to our website www.vicon-security.com to assure you have the most current documentation.
1 Service
If the unit needs repair service or parts, the customer should contact Vicon Industries for authorization to return, as
well as shipping instructions.
2 Unpacking

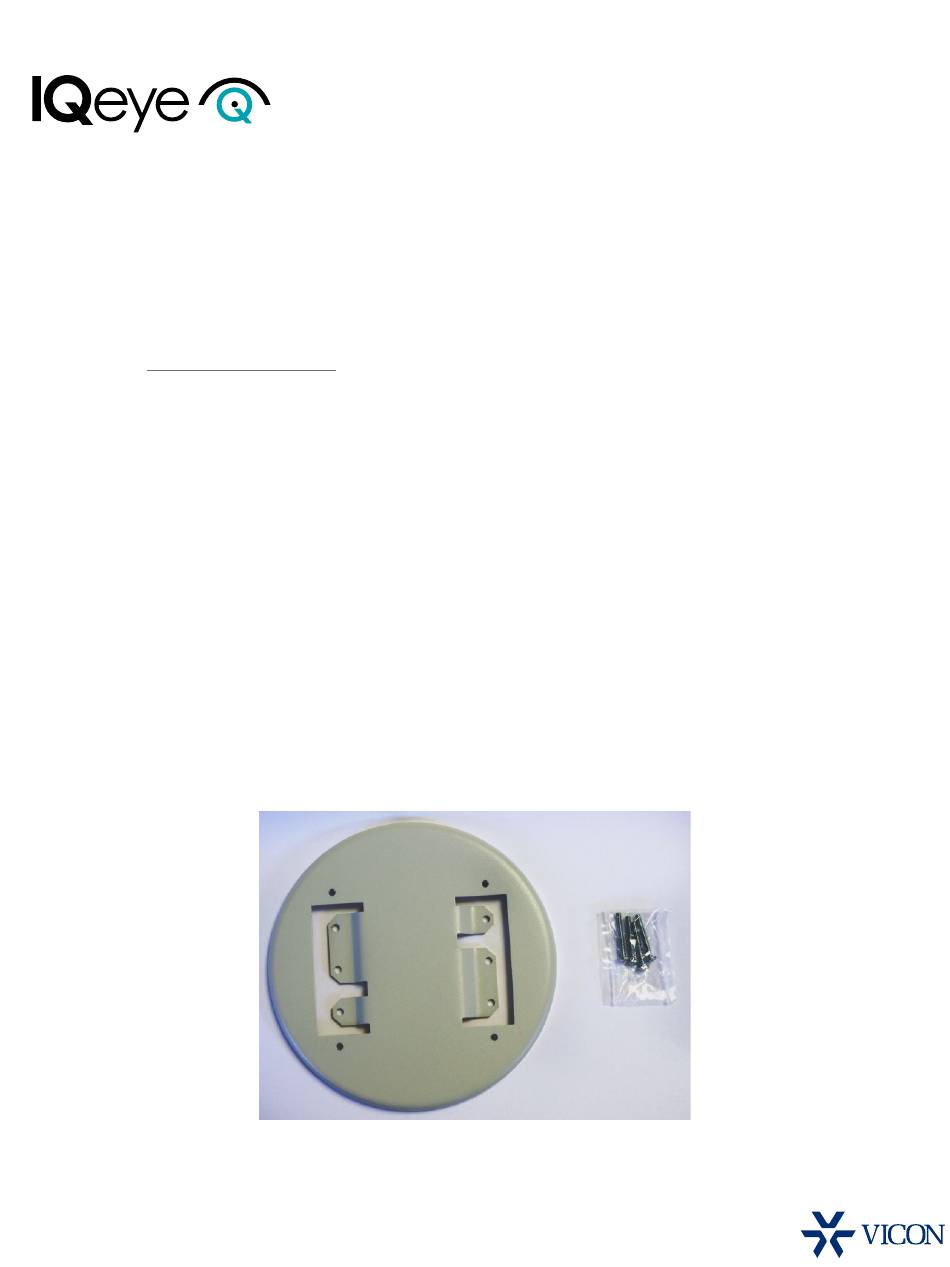

The IQM-GBA Alliance-mx Electrical Gang Box Adapter assembly should include the following:
1. Electrical Gang Box Adapter
2. Pack of (8) machine screws
(4) #6 x 1" Philips Pan Head machine screws
(4) M4 x 12mm Phillips Pan Head machine screws
Figure 1
Advertisement
Table of Contents
Related Manuals for Vicon IQeye IQM-GBA Alliance-mx
Summary of Contents for Vicon IQeye IQM-GBA Alliance-mx
- Page 1 This Quick Install Guide covers the IQM-GBA Flush Ceiling mount for the Alliance-mx camera domes. Be sure to go to our website www.vicon-security.com to assure you have the most current documentation. 1 Service If the unit needs repair service or parts, the customer should contact Vicon Industries for authorization to return, as well as shipping instructions. 2 Unpacking The IQM-GBA Alliance-mx Electrical Gang Box Adapter assembly should include the following: 1.
- Page 2 3 Installation 1. Route the Ethernet cable through the opening in the Electrical Gang Box Adapter, and attach the adapter as shown in Figure 2 using the four supplied #6 x 1”machine screws. Figure 2 2. Route the Ethernet cable through the gasket installed in the enclosure. Attach the Alliance-mx series camera to the adapter as shown Figure 3 using the four M4 x 12mm machine screws and sealing washers supplied with the Alliance-mx dome camera.
