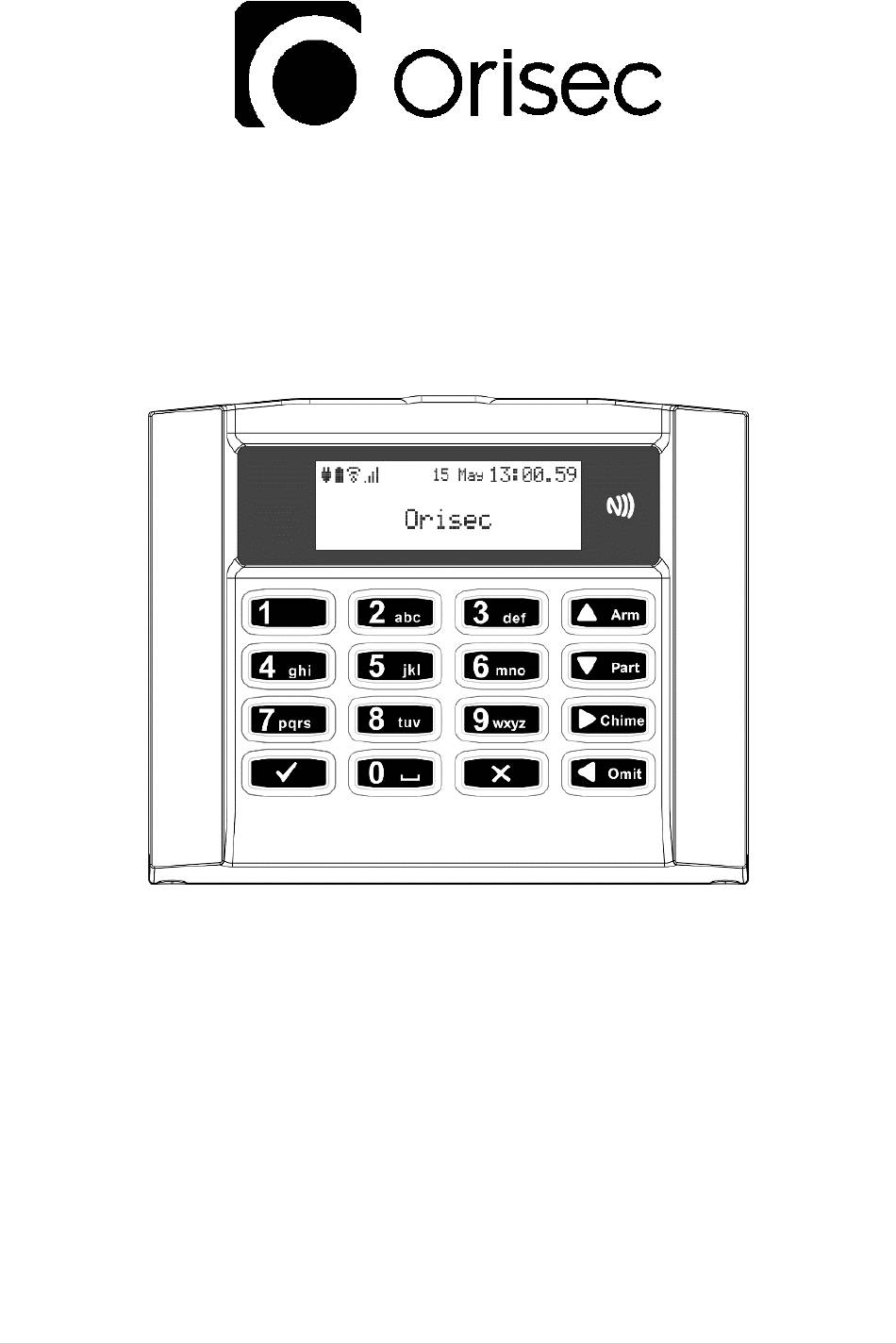

- Page 1 RK-400-LCD & RK-450-LCD Keypad Installation Manual Designed and Manufactured in the United Kingdom www.orisec.co.uk...
-
Page 2: Table Of Contents
Specifications ........................11 Standards ..........................11 Security ............................11 EMC ..............................12 Warranty ............................12 1. Introduction This manual describes how to install the following Orisec keypads: Orisec RK-400-LCD Orisec RK-450-LCD For detailed programming instructions please see the control panel installation manual. -
Page 3: How To Open The Keypad
2. How to Open the Keypad Pull down the keypad flap and pull gently at the hinge to remove: NOTE: Removal of the flap is optional for installation Partially loosen both screws on the underside of the Keypad:... -
Page 4: How To Remove The Pcb
Lift the front cover at the bottom of the keypad then slide up to remove: 3. How to Remove the PCB The PCB is retained on a hinge, so to open, simply pull the clip on the right-hand side and swing open: Tamper Switch... -
Page 5: Fixing The Keypad To Wall
4. Fixing the Keypad to Wall Keyhole Screw mounting holes Cable entry hole... -
Page 6: Pcb Layout
5. PCB Layout 1. Network Connections The Orisec Keypads network connection. 2. Zone Input or Output Terminal 1 This terminal can be independently programmed from the main control panel to be a detection device OR output. If using the terminal as zone input the zone can be independently programmed for type, wiring, areas and options. -
Page 7: Wiring
Address 0 Address 1 Address 2 (Software address) Address 3 Address 4 Address 5 Address 6 Address 7 Address 8 Address 9 Address 10 6. Wiring Network Connections Ensure the system is powered down and the battery is disconnected before wiring the Keypad. The keypads can be networked in a star or daisy chain pattern, or a combination of the two. -
Page 8: Zone And Output Connections
Zone and Output Connections The keypads have 1 input/output terminal. It can be used as required and the operation is defined via the control panel’s programming menus. Example of wiring types:... -
Page 9: Setup Menu
7. Setup Menu To enter the Setup Menu, press both the ‘✓’ key and ‘Omit’ key and hold for 3 seconds. Use the ‘up’ and ‘down’ arrow keys to select the option, then use the ‘left’ and ‘right’ arrow keys to change the value of the selected option. -
Page 10: Keypad Button Operation
9. Keypad Button Operation Numeric –Used for entering codes Arm – Can be used for a quick full arm and to navigate upwards in the menu Part - Can be used for a quick part arm and to navigate down in the menu Chime –... -
Page 11: Specifications
Storage Temperature: -20°C to +60°C Max. Humidity: 95% non-condensing EMC: Residential, Commercial, Light Industrial & Industrial Physical Dimensions: RK-400-LCD & RK-450-LCD: 153mm x 120mm x 30mm Housing: 3mm Acrylonitrile Styrene Acrylate (ASA) Packed Weight: 400g 11. Standards Security PD 6662:2017... -
Page 12: Emc
2 years from the date of purchase. Disclaimer: Orisec will not accept any liability based on a claim that the Orisec RK-400-LCD or Orisec RK-450-LCD failed to perform correctly as it is a component part of an installation and not a complete intruder alarm system.
