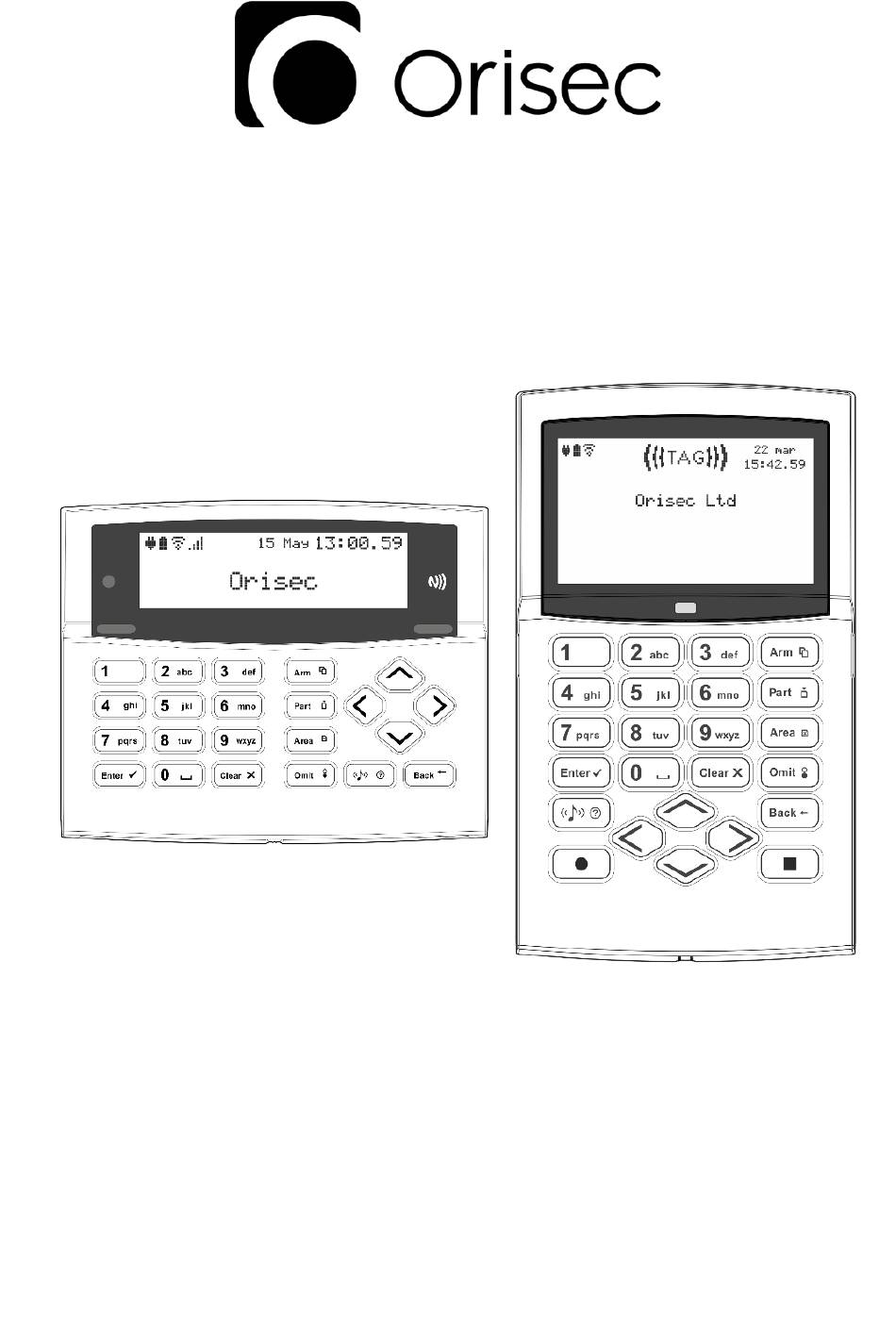

- Page 1 RK-720, RK-850, RK-920 & RK-1050 Keypad Installation Manual Designed and Manufactured in the United Kingdom www.orisec.co.uk...
-
Page 2: Table Of Contents
Contents Introduction ........................... 4 How to open the keypad ....................6 RK-720 keypads ..........................6 RK-850 keypads ..........................7 RK-920 keypads ..........................8 RK-1050 keypads ..........................9 Fixing the Keypad to wall ....................10 Horizontal – Low Profile Mount ....................10 Vertical –... - Page 3 EMC ..............................23 Warranty ............................23...
-
Page 4: Introduction
For detailed programming instructions please see the control panel installation manual. NOTE On the CP-200 series of control panels, wireless receivers inbuilt on the Keypad (RK-720, RK-850, RK-920 & RK-1050) should not be enabled, if installed on network 2. For information on where to enable/ disable the wireless receiver please see page 19. - Page 5 Keypad Finishes Wireless Connectivity Keys RK-720 Black or White Wired Keypad with Black Keys without No Cover Wireless Receiver Keycaps RK-850 White with Wired Keypad with White Keys with Hinged Cover Wireless Receiver Keycaps RK-920 Black or White Wired Keypad with...
-
Page 6: How To Open The Keypad
2. How to open the keypad RK-720 keypads Partially loosen the screw on the underside of the Keypad: Slide the cover up: Lift the cover off the back:... -
Page 7: Rk-850 Keypads
RK-850 keypads Partially loosen the screw on the underside of the Keypad: Slide the cover up: Lift the cover off the back:... -
Page 8: Rk-920 Keypads
RK-920 keypads Partially loosen the screw on the underside of the Keypad: Lift the cover:... -
Page 9: Rk-1050 Keypads
RK-1050 keypads Partially loosen the screw on the underside of the Keypad: Lift the cover:... -
Page 10: Fixing The Keypad To Wall
3. Fixing the Keypad to wall Horizontal – Low Profile Mount Screw mounting holes Cable entry holes Breakaway rear tamper Optional Speaker Knock through that can be used with trunking / conduit for cable entry... -
Page 11: Vertical - Low Profile Mount
Vertical – Low Profile Mount Screw mounting holes Cable entry holes Breakaway rear tamper Optional Speaker Knock through that can be used with trunking / conduit for cable entry... -
Page 12: Pcb Layout
4. PCB Layout Horizontal 1. Network Connections The Orisec Keypads network connection. 2. Zone Input or Output Terminals 1-3 These terminals can be independently programmed from the main control panel to be detection devices OR outputs. If using one or more terminals as zone inputs each zone can be independently programmed for type, wiring, areas and options. - Page 13 Address 7 Address 8 Address 9 Address 10 7. Micro USB The Micro USB connection is used for flash updating the keypad (utilising ‘Orisec Flash Programmer’) and adding custom voice messages. (Utilising ‘Orisec Voice Message Editor’). Both software programs downloaded...
-
Page 14: Vertical
Vertical 1. Network Connections The Orisec Keypads network connection. 2. Zone Input or Output Terminals 1-3 These terminals can be independently programmed from the main control panel to be detection devices OR outputs. If using one or more terminals as zone inputs each zone can be independently programmed for type, wiring, areas and options. - Page 15 Address 10 7. Micro USB The Micro USB connection is used for flash updating the keypad (utilising ‘Orisec Flash Programmer’) and adding custom voice messages. (Utilising ‘Orisec Voice Message Editor’). Both software programs can be downloaded from the installer portal;...
-
Page 16: Wiring
5. Wiring Network Connections Ensure the system is powered down and the battery is disconnected before wiring the Keypad. The keypads can be networked in a star or daisy chain pattern, or a combination of the two. They can also be connected to the RJ45 connections on both the control panel and on expanders. -
Page 17: Zone And Output Connections
Zone and Output Connections The keypads have three input/output terminals. They can be used as required and their operation is defined via the control panel’s programming menus. Example of wiring types: Loudspeaker Connections The keypads have a 16Ω loudspeaker output, the wiring options are as follows:... -
Page 18: Setup Menu
Voice messages are uploaded to the keypad from the ‘Voice Message Uploader’ program (Requires version 1.1 onwards). All PC software can be downloaded from; www.orisec.co.uk/installer Keypad Light On If enabled, the keypad keys will be permanently illuminated. Toggle this option ON and OFF with the O key. - Page 19 PA enabled* If enabled, the Y and Z soft keys are utilised as an audible PA if pressed together. Disable Radio If enabled, the onboard wireless expander is switched off and will not be used for wireless devices. Remote Control* The onboard Y and Z soft keys can be programmed to trigger ‘Remote Controls’.
-
Page 20: Nfc Reader
7. NFC Reader The NFC reader allows NFC devices to be used for arming and disarming of the system. These can be assigned to users in the User Codes section of the Programming Menu. The NFC device (TAG) should be presented to the right-hand side of the keypad screen on a horizontal keypad: The NFC device (TAG) should be presented to the top middle of the keypad on a vertical keypad:... -
Page 21: Onboard Wireless Expander
9. Flash updating The RK-720, RK-850, RK-920 & RK-1050 keypads can be flash updated. The flash update process is performed via the Micro USB connection on the reverse of the keypad. ‘Orisec Flash Programmer’ (Version 1.19.1.3 and above) is required to perform the flash update. -
Page 22: Specifications
95% non-condensing EMC: Residential, Commercial, Light Industrial & Industrial Physical Dimensions: Horizontal: 119x148x34mm Vertical: 158x93x33mm Housing: 3mm Acrylonitrile Styrene Acrylate (ASA) Packed Weight: RK-720: 310g RK-850: 370g RK-920: 280g RK-1050: 320g RK-720: 250g Unpacked Weight: RK-850: 310g RK-920: 220g RK-1050: 260g... -
Page 23: Standards
2 years from the date of purchase. Disclaimer: Orisec will not accept any liability based on a claim that RK-720, RK-850, RK-920 & RK-1050 failed to perform correctly as it is a component part of an installation and not a... - Page 24 UK Based Technical Support t: +44 (0) 1706 398740 e: support@orisec.co.uk © Orisec Ltd 2022 2022/08/23 INS170...
