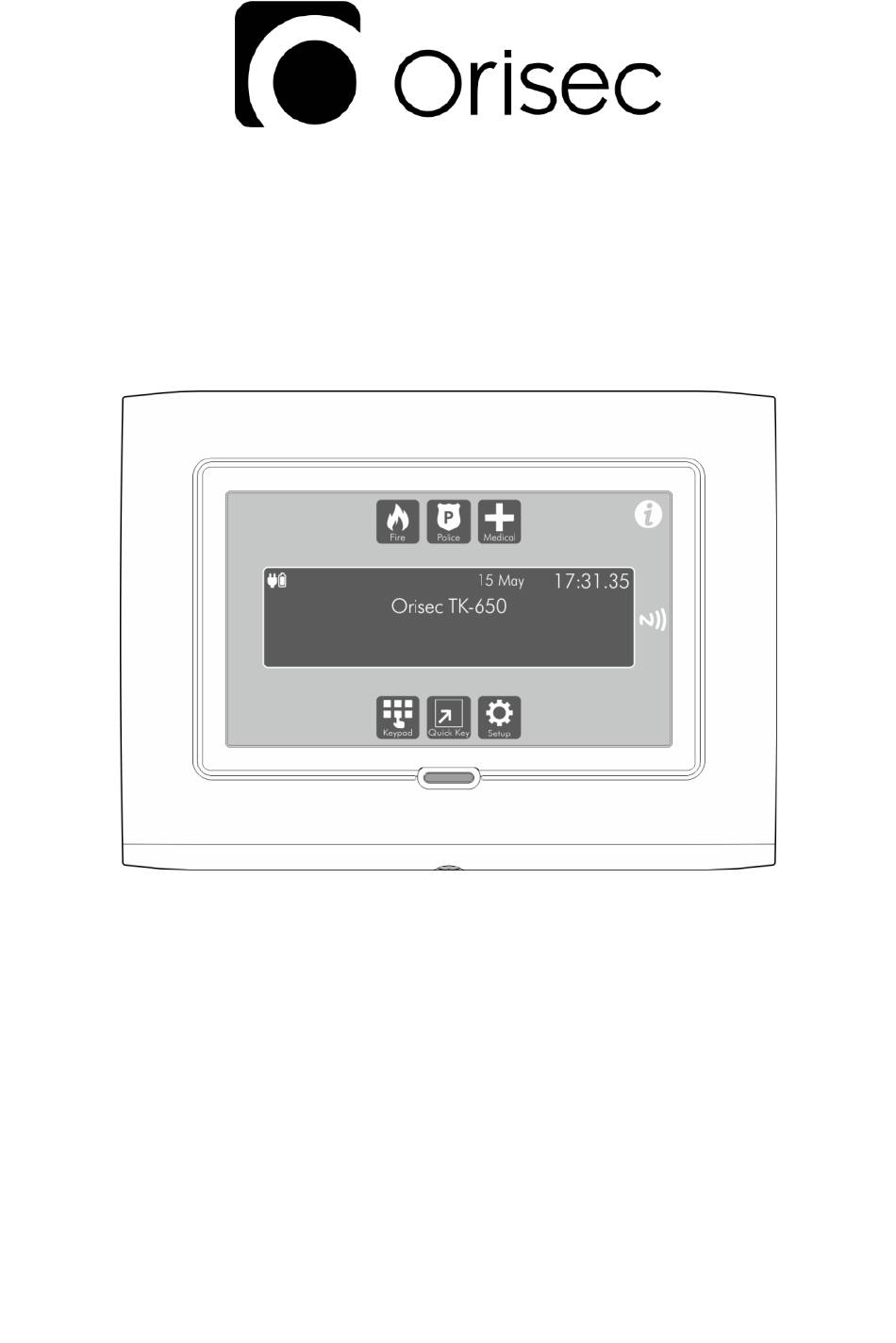

- Page 1 TK-650 Keypad Installation Manual Designed and Manufactured in the United Kingdom www.orisec.co.uk...
-
Page 2: Table Of Contents
Contents Introduction ........................... 3 How to disassemble the keypad ..................3 Fixing the Keypad to wall ....................5 Flush Mount ............................ 5 Low Profile Mount ......................... 6 Surface Mount ..........................7 Rear Tamper Break out Section (Grade 3) ................7 PCB Layout .......................... -
Page 3: Introduction
1. Introduction This manual describes how to install the following Orisec keypads: Orisec RK-650 For detailed programming instructions please see the control panel installation manual. 2. How to disassemble & assemble the keypad Loosen the screw on the underside of the Keypad:... - Page 4 Lift the front cover off the back, noting that the PCB is attached to front cover: To assemble the keypad follow the same procedure in reverse: Scan for video:...
-
Page 5: Fixing The Keypad To Wall
3. Fixing the Keypad to wall Flush Mount Screw mounting holes Cable entry holes Breakaway rear tamper Screw clamps Front cover sliding clip locking holes. Keep clear from debris to ensure the keypad can easily hook onto the flush mount. -
Page 6: Low Profile Mount
Low Profile Mount Screw mounting holes Knock-out cable entry holes Breakaway rear tamper Removable tabs for cable trunking Keyhole MK single gang back-box mounting holes... -
Page 7: Surface Mount
Surface Mount Screw mounting holes Cable entry holes Breakaway rear tamper Knock-out cable entry hole MK double gang back-box mounting holes MK single gang back-box mounting holes Rear Tamper Break out Section (Grade 3) Insert a screw into the rear tamper break out section (3). If the keypad casing is forced off the wall, the break out section will stay fixed, and a tamper activation will occur. -
Page 8: Pcb Layout
4. PCB Layout 1. Network Connections The Orisec Keypads network connection. 2. Zone Input or Output Terminals 1-3 These terminals can be independently programmed from the main control panel to be detection devices OR outputs. If using one or more terminals as zone inputs each zone can be independently programmed for type, wiring, areas and options. - Page 9 Address 5 Address 6 Address 7 Address 8 Address 9 Address 10 7. Micro USB Port USB communication port that can be used to flash update the TK-650 firmware or edit the company logo screen via Orisec RKP Logo Editor software.
-
Page 10: Wiring
5. Wiring Network Connections Ensure the system is powered down and the battery is disconnected before wiring the Keypad. The keypads can be networked in a star or daisy chain pattern, or a combination of the two. They can also be connected to the RJ-45 connections on both the control panel and on expanders. -
Page 11: Zone And Output Connections
Zone and Output Connections The keypads have three input/output terminals. They can be used as required and their operation is defined via the control panel’s programming menus. Example of wiring types: Loudspeaker Connections The keypads have a 16Ω loudspeaker output, the wiring options are as follows:... -
Page 12: Setup Menu
6. Setup Menu The ‘Setup’ icon will only appear when either the system is in engineer’s mode or the lid tamper of the keypad is open. To enter the setup menu, press the ‘Setup’ icon: Network Address If software addressing is enabled (DIP switch address set to 0), the network address can be changed using this option. -
Page 13: Nfc Reader
The company logo must be downloaded into the keypad via an USB connection and Orisec RKP Logo Editor software. Sync Colour Theme: If enabled the keypad colour themes are synced to all other TK-650 keypads on the network. -
Page 14: Specifications
8. Specifications Electrical Input Voltage: 10 – 15Vdc Current Consumption: Idle: 50mA; Backlit: 110mA Network: 4-Wire standard 7/0.2mm alarm cable up to 500m Zone Inputs & Output: 3; Each programmable as zone input or 100mA output Loudspeaker Output: Minimum load of 16 Ohm Proximity Reader: NFC NTAG203 Display:... -
Page 15: Standards
2 years from the date of purchase. Disclaimer: Orisec will not accept any liability based on a claim that the Orisec TK-650 failed to perform correctly as it is a component part of an installation and not a complete intruder alarm... - Page 16 UK Based Technical Support t: +44 (0) 1706 398740 e: support@orisec.co.uk © Orisec Ltd 2016 INS026...
