TK-1250
Keypad Installation Manual
Designed and Manufactured
in the United Kingdom
www.orisec.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TK-1250 and is the answer not in the manual?

Questions and answers

Summary of Contents for Orisec TK-1250

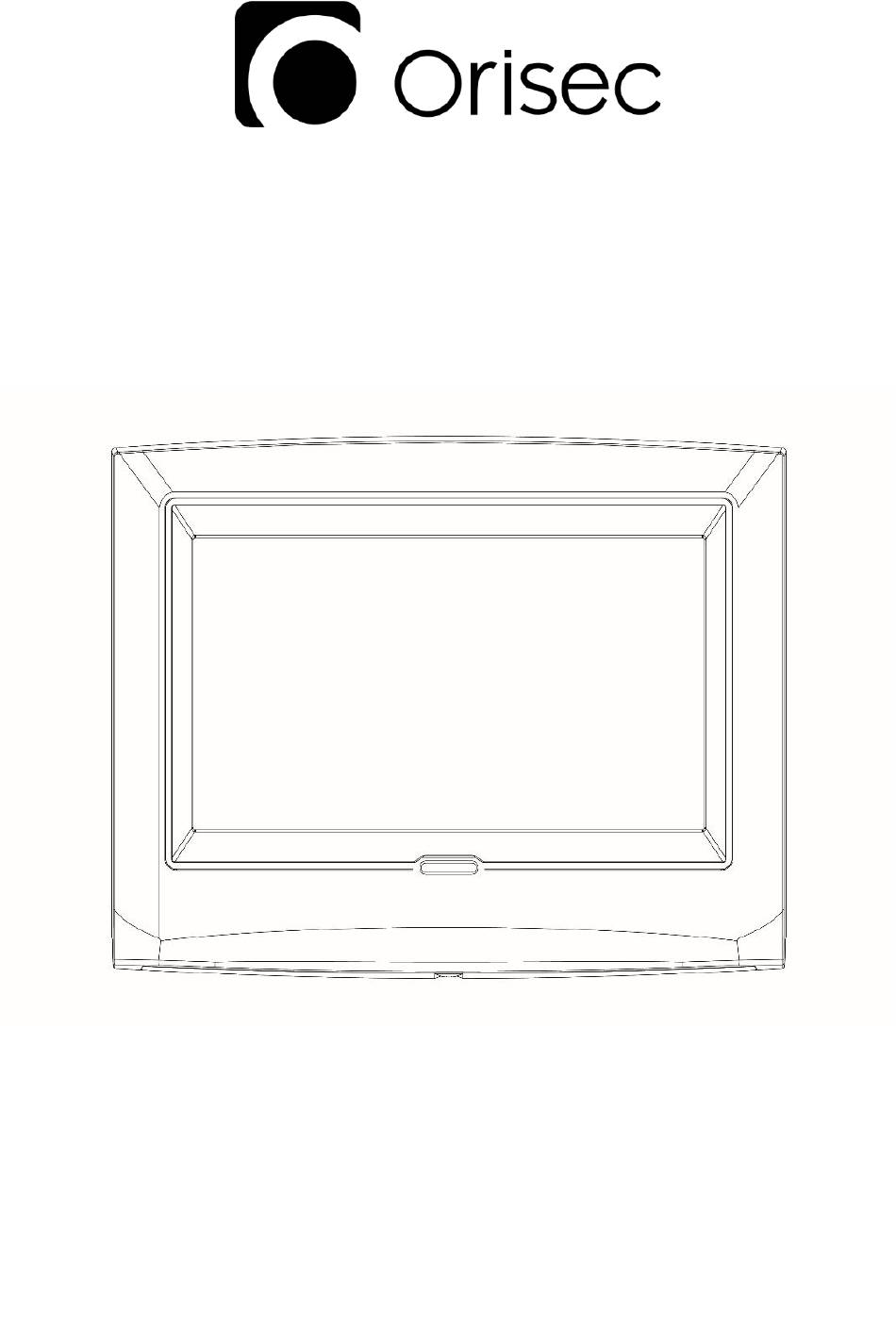

  • Page 1 TK-1250 Keypad Installation Manual Designed and Manufactured in the United Kingdom www.orisec.co.uk...
  • Page 2: Table Of Contents

    Contents Introduction ........................... 3 How to disassemble & assemble the keypad ..............4 Fixing the Keypad to wall ....................6 PCB Layout ..........................7 Wiring ............................9 Network Connections ........................9 Zone and Output Connections ....................10 Loudspeaker Connections ......................10 Setup Menu ...........................
  • Page 3: Introduction

    12. *A total of 3 input/ outputs are available on the TK-1250. The three available I/O’s can be used in any configuration i.e. 2 zone inputs, 1 output / 3 zone inputs/ 3 outputs.
  • Page 4: How To Disassemble & Assemble The Keypad

    2. How to disassemble & assemble the keypad Loosen the screw on the underside of the Keypad: Slide the front cover up:...
  • Page 5 Lift the front cover off the back, noting that the PCB is attached to front cover:...
  • Page 6: Fixing The Keypad To Wall

    3. Fixing the Keypad to wall Screw mounting holes Cable entry holes Breakaway rear tamper Optional SPK-7 Location Knock through that can be used with trunking / conduit for cable entry...
  • Page 7: Pcb Layout

    4. PCB Layout Network Connections TK-1250 Keypad network connection. Zone Input or Output Terminals 1-3 These terminals can be independently programmed from the main control panel to be detection devices OR outputs. If using one or more terminals as zone inputs each zone can be independently programmed for type, wiring, areas and options.
  • Page 8 Wireless Expander The TK-1250 has an onboard wireless expander which can be used to extend the range of wireless in the property. NOTE! A minimum of one of the following wireless expanders are required to be installed on...
  • Page 9: Wiring

    5. Wiring Network Connections Ensure the system is powered down and the battery is disconnected before wiring the Keypad. The keypads can be networked in a star or daisy chain pattern, or a combination of the two. They can also be connected to the RJ-45 connections on both the control panel and on expanders.
  • Page 10: Zone And Output Connections

    Zone and Output Connections The keypads have three input/output terminals. They can be used as required and their operation is defined via the control panel’s programming menus. Example of wiring types: Loudspeaker Connections The keypads have a 16Ω loudspeaker output, the wiring options are as follows:...
  • Page 11: Setup Menu

    A valid user code has been entered. (The setup ‘Icon’ will remain present for 30 seconds  after exiting the menus) The lid tamper on the TK-1250 is open.  To enter the setup menu, press the ‘Setup’ icon which is located from the ‘Home’ menu on the...
  • Page 12: Keypad Options

    ‘Home’ screen. The company logo must be uploaded to the keypad via the Micro USB connection using the ‘Orisec RKP Logo Editor’ software. Sync Colour Theme: If enabled the keypad colour themes are synced to all other TK-1250 keypads on the network.
  • Page 13: Nfc Reader & Clean Mode

    7. NFC Reader & Clean Mode The NFC reader allows NFC devices to be used for arming and disarming of the control panel. NFC devices are assigned to users in ‘User Setup’. This menu can be accessed via engineers or the Master Users.
  • Page 14: Onboard Wireless Expander

    9. Flash Updating The TK-1250 keypad can be flash updated to facilitate new features and enhancements. The flash update process is performed via the Micro USB connection on the reverse of the keypad. ‘Orisec Flash Programmer’ (Version 1.19.1.3 and above) is required to flash update the TK-1250 keypad.
  • Page 15: Specifications

    10. Specifications Electrical Input Voltage: 10 – 15Vdc Current Consumption: Idle: 85mA; Backlit: 160mA Network: 4-Wire standard 7/0.2mm alarm cable up to 50m (250m with additional PSU) Zone Inputs & Output: 3; Each programmable as zone input or 100mA output Loudspeaker Output: Minimum load of 16 Ohm Proximity Reader:...
  • Page 16: Standards

    2 years from the date of purchase. Disclaimer: Orisec will not accept any liability based on a claim that the Orisec TK-1250 failed to perform correctly as it is a component part of an installation and not a complete intruder alarm system.
