Vivo DESK-V202A Assembly Manual
Mobile louge desk
Hide thumbs
Also See for DESK-V202A:
- Instruction manual (4 pages) ,
- Instruction manual (9 pages) ,
- Instruction manual (12 pages)
Advertisement
Advertisement
Table of Contents
Related Manuals for Vivo DESK-V202A
Summary of Contents for Vivo DESK-V202A

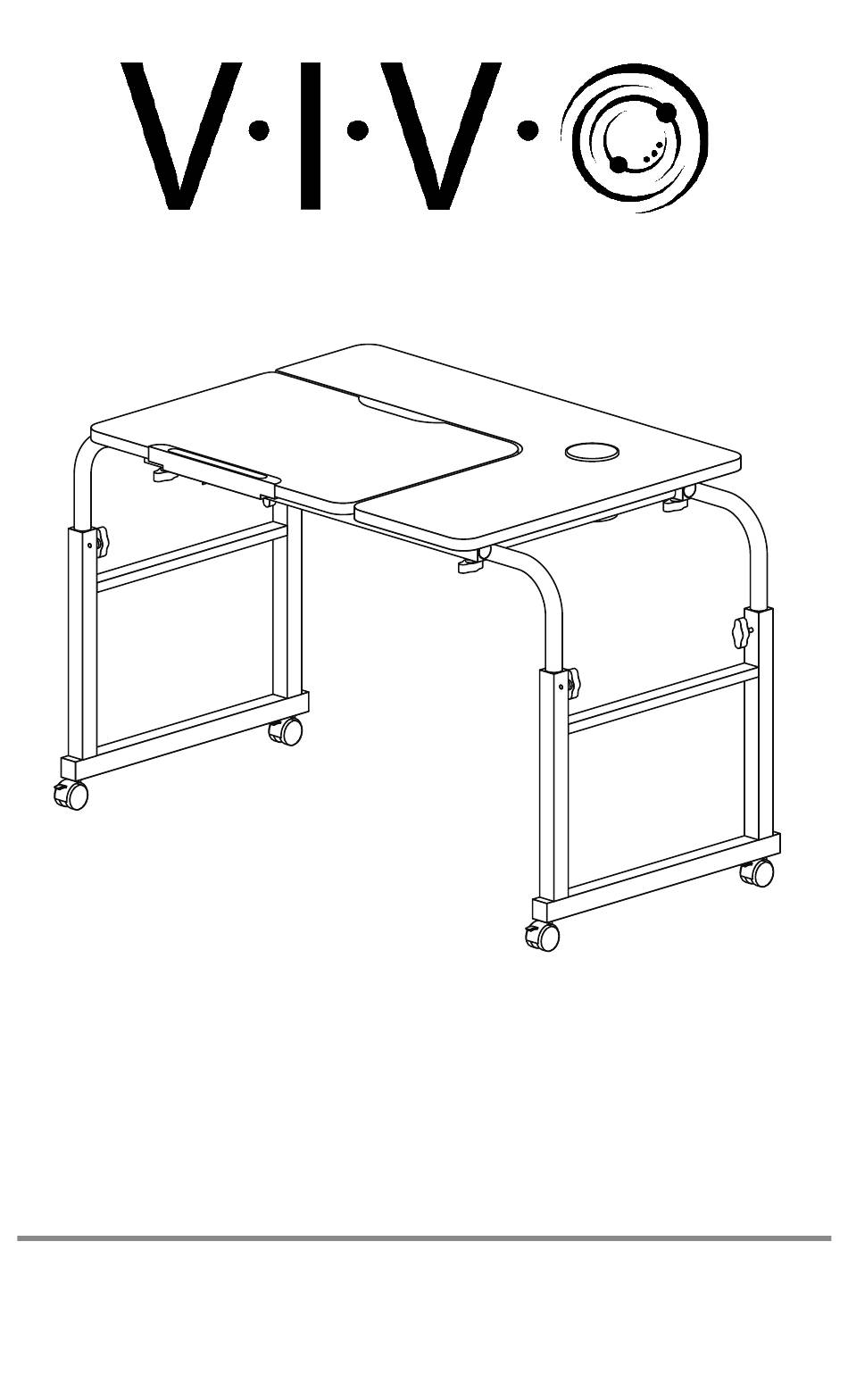

- Page 1 Mobile Louge Desk DESK-V202A Series Assembly Manual Individual Product SKUs DESK-V202A DESK-V202B...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 Si vous ne comprenez pas ces instructions ou si vous avez des doutes sur la sécurité de l’installation, veuillez contacter notre équipe d’assistance produit au 309-278-5303 ou help@vivo-us.com pour obtenir de l’aide. Vérifiez soigneusement qu’il n’y a aucune pièce manquante ou défectueuse. Une installation incorrecte peut causer des dommages ou des blessures graves.
-
Page 4: Package Contents
Package Contents A (x1) B (x4) C (x2) Desktop Connecting Pipe D (x4) E (x1) Caster Pen Holder Included Hardware & Tools T-A (x1) S-A (x8) Wrench Knob Weight Capacity: 40lbs 18kg Assembly Video & Product Info www.vivo-us.com/products/desk-v202a... -
Page 5: Assembly Steps
ASSEMBLY STEPS STEP 1 Thread Casters (D) into Legs (C) using Wrench (T-A). Use Brake Levers on Casters to lock rotation. - Page 6 STEP 2 Insert the end of Connecting Pipe (B) with the printed scale marked 80cm to 130cm into Desktop (A) as shown.
- Page 7 STEP 3 Slide Legs (C) over Connecting Pipes (B). Adjust to desired height and secure using Knobs (S-A). S-A (x4)
- Page 8 STEP 4 Secure Connecting Pipes (B) to Desktop (A) using Knobs (S-A). S-A (x4)
- Page 9 STEP 5 Flip assembled desk right side up. Insert Pen Holder (E) into Desktop (A). Raise the Retention Lip on Desktop (A) by releasing the button underneath. To lower the Retention Lip, press down until it locks into place. Retention...
- Page 10 STEP 6 To lower, lift the desk surface past 80° to unlock, and lower it to the flush position. To lower, lift the desk surface past 80° to unlock, and lower it to the flush position. WARNING: PINCH POINT DO NOT place hands on or near support bars.
- Page 11 STEP 7 Loosen Knobs (S-A) under Desktop (A) to adjust the width of the desk assembly. STEP 8 Loosen Knobs (S-A) on Legs (C) to adjust the height of the desk assembly.
- Page 12 LAST UPDATED: 04/03/25 REV5 DESK-V202A: v1.1 DESK-V202B: v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, VIVO-us @vivo_us @VIVOus VIVO CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM...
