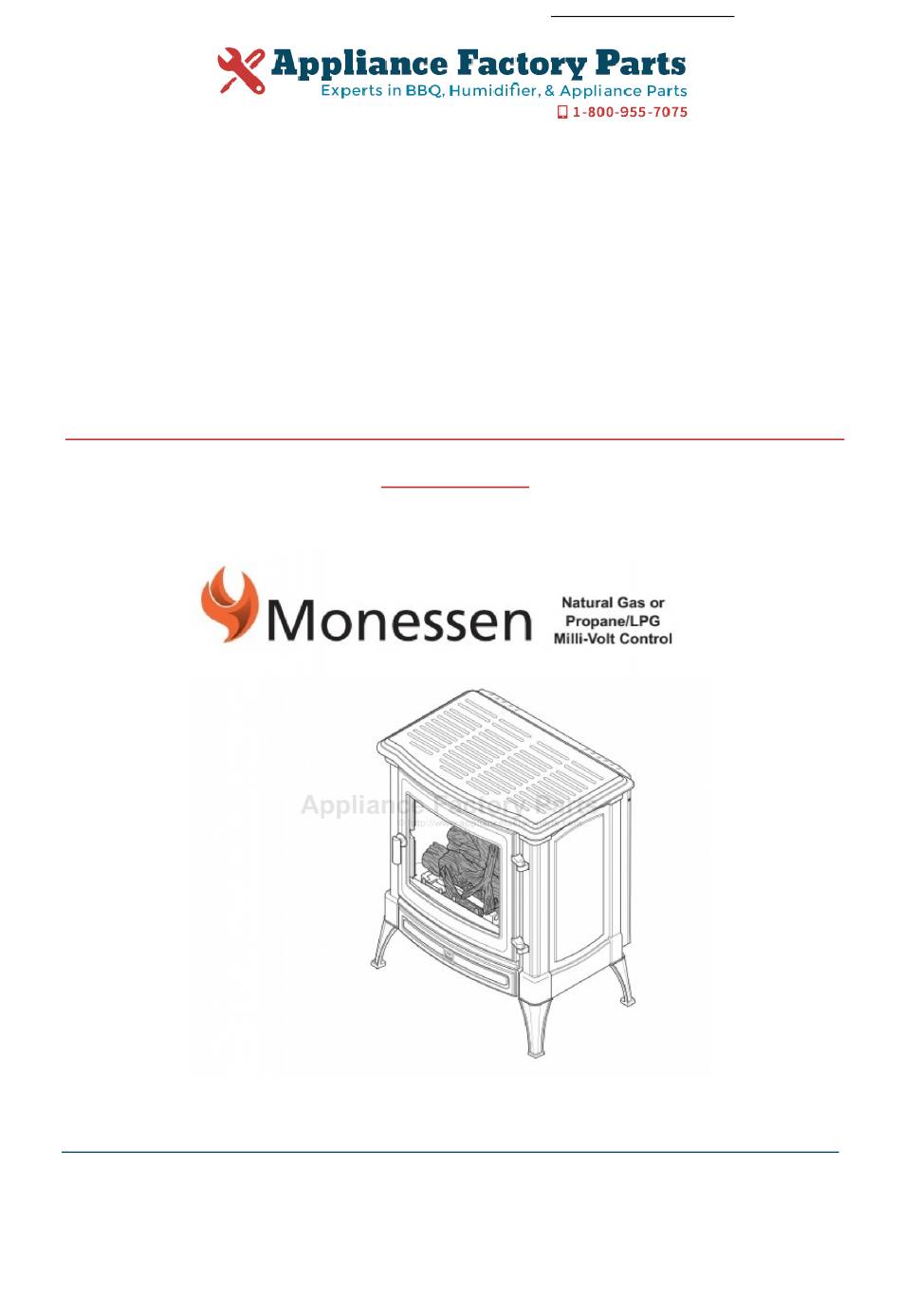

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Monessen Hearth C2802VFP Owner's Manual Shop genuine replacement parts for Monessen Hearth C2802VFP Find Your Monessen Hearth Fireplace Parts - Select From 701 Models -------- Manual continues below part list --------...
- Page 2 Available Replacement Parts for Monessen Hearth C2802VFP SRV00K0632 ASSY-WIRE SRV32D0232 SWITCH, ON/OFF+ SRV14D0468 VALVE MV LP (060620)+...
-
Page 3: What To Do If You Smell Gas
UNVENTED GAS CAST IRON STOVE INSTALLATION AND OPERATING INSTRUCTIONS � � �� � MODELS: C2801VF, C2802VF, C2803VF, and C2804VF Natural Gas or Propane/LPG Milli-Volt Control WARNINGS WARNINGS If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life. -
Page 4: Table Of Contents
CONTENTS Log Placement ..........16 Important Safety Information ......3 Installing Logs on Grate......16 Product Features ..........5 Placing the Decorative Rock....... 16 Getting Started ........... 6 Flame Appearance ........... 17 Checking Pilot Flame ........17 Product Specifications ........7 Checking the Burner Flame ...... -
Page 5: Important Safety Information
IMPORTANT SAFETY INFORMATION INSTALLER OWNER Please leave these instructions with the owner. Please retain these instructions for future reference. IMPORTANT Read these instructions carefully before installing or trying to operate this vent-free gas heater. • Any change to this heater or its controls can be dangerous. •... - Page 6 IMPORTANT SAFETY INFORMATION Continued from page 3 24. Never burn solid fuels in an unvented room heater, fire- place or stove. 15. This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is installed. Provisions for 25.
-
Page 7: Product Features
PRODUCT FEATURES On/Off Switch � � � � � Optional Remote Receiver Data and Off/Pilot/On Optional Instruction Knob Thermostat Plates Sensor Hi/Lo Knob Door Figure 1 - Cast Iron Stove 45D0080... -
Page 8: Getting Started
GETTING STARTED MAKE SURE YOU HAVE RECEIVED ALL PARTS: Check your packing list to verify that all listed parts have been received. You should have the following: • Cast Iron Stove with Burner Assembly • Installation/Operating Instructions • Ceramic fiber logs •... -
Page 9: Product Specifications
PRODUCT SPECIFICATIONS NATURAL GAS NOTE: An external regulator is required to reduce supply pressure to a maximum of 10 " w.c. on Natural Gas systems operating at higher pressure. MILLIVOLT PRESSURE Regulator Pressure Setting: 3.5" w.c. Pilot Regulator: 3.5" w.c. Gas Inlet Pressure: Max. -
Page 10: General Installation Information
GENERAL INSTALLATION INFORMATION Do not install the heater … • Where curtains, furniture, clothing, or other flammable objects are less than 42" from the front of the heater. • In high traffic areas. • In windy or drafty areas. CODES Adhere to all local codes or, in their absence, the latest edition of THE NATIONAL FUEL GAS CODE ANSI Z223.1 or NFPA54 which can be obtained from…... - Page 11 GENERAL INSTALLATION INFORMATION Counter Cast Iron Stove � � Figure 2 - Example of a Large Room with 1/2 Wall Divider The following formula can be used to determine the maximum heater rating per the definition of unconfined space: BTU/Hr = (L ) Ft x (W) Ft x (H) Ft x 1000 Consider two connecting rooms with an open area between, with the following dimensions:...
-
Page 12: Clearances / Height Requirements
CLEARANCES / HEIGHT REQUIRMENTS The dimensions shown in Figure 3 are minimum clearances to maintain in installing this heater. Left and right clearances are determined when facing the front of the heater. Follow these instructions carefully to ensure safe installation. Failure to follow instructions exactly can create a fire hazard. -
Page 13: Connecting The Gas
CONNECTING THE GAS NOTICE: A qualified gas appliance installer must connect the heater to the gas supply. Consult all local codes. Use new black iron or steel pipe. Internally tinned copper or copper tubing can be used per National Fuel Code, section 2.6.3, providing gas meets hydrogen sulfide limits, and where permitted by local codes. -
Page 14: Checking Gas Pressure
CHECKING GAS PRESSURE CONNECTING REMOTE RECEIVER The heater gas inlet connection is 3/8" NPT at the valve. The inlet is located on left side of stove. Remove front control plate Connecting directly to an unregulated to better access the inlet. propane/L.P.G. -
Page 15: Electrical Wiring
ELECTRICAL WIRING (MILLI-VOLT) The milli-volt valve is a self-powered combination gas control THAT DOES NOT REQUIRE 110 VAC TO OPERATE. ODS Pilot On/Off Label all wires prior to Switch disconnection when servicing controls. Wiring errors can cause improper Pilot and dangerous operation. Wall Verify proper operation Switch... -
Page 16: Installing Thermostat Sensor
ELECTRICAL WIRING (MILLI-VOLT) INSTALLING THERMOSTAT SENSOR (OPTION SOLD SEPARATELY) Remove the face plate by removing the six screws holding the faceplate in place. This will allow you to pull the faceplate away from the unit about 3" to 4". See Figure 8. �... -
Page 17: Operation Of Thermostat Sensor
ELECTRICAL WIRING (MILLI-VOLT) Valve Remove adhesive backing from plastic clip. Press clip to bottom of valve. Clip thermo bulb into plastic clip. See Figure 10. Reattach faceplate or reinstall base. Install knob to shaft of t-stat sensor. See Figure 9, page 14. -
Page 18: Log Placement
LOG PLACEMENT Before you begin — This unit is supplied with four ceramic fiber logs. Do not handle these logs with your bare hands. Always wear gloves to prevent skin irritation from ceramic fibers. After handling the logs, wash your hands gently with soap and water to remove any traces of fibers. -
Page 19: Flame Appearance
FLAME APPEARANCE Flames from the pilot, front and rear burner should be visually checked as soon as the heater is installed. In addition, periodically check the flames visually during operation. CHECKING PILOT FLAME The pilot flame must always be present when the heater is in operation. It should just touch the top of the ther- mocouple tip for natural. -
Page 20: Operating Instructions
OPERATING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING If you do not follow these instruction exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance is equipped with an ignition device which automatically lights the pilot. If the piezo is not working properly, see “Match Lighting Instructions,”... -
Page 21: Milli-Volt Control Lighting Instructions
OPERATING INSTRUCTIONS MILLI-VOLT CONTROL LIGHTING INSTRUCTIONS 1. STOP! Read the safety information label. 2. Make sure the manual shutoff valve is fully open. 3. This gas log set is equipped with an ignition device (piezo) which automatically lights the pilot. If piezo ignitor does not light the pilot, refer to instructions for “Match Lighting Instructions”, page 21. -
Page 22: Match Lighting Instructions
OPERATING INSTRUCTIONS CLEANING AND SERVICING MATCH LIGHTING INSTRUCTIONS 1. Open stove door. Remove any items necessary for easy access to the pilot (for example: logs, screens, etc.). 2. Follow appropriate lighting instructions found previously. Light a match and hold the flame to the end of the pilot and ignite the pilot. -
Page 23: Replacement Parts List
REPLACEMENT PARTS LIST REPLACEMENT PARTS ARE AVAILABLE THROUGH YOUR RETAILER. LOGS � Item Description Back Log 44D1011K Middle Log 45D0502K Front Log 44D1012K Top Log 44D1013K � � � Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal... -
Page 24: Replacement Parts
REPLACEMENT PARTS BURNER ASSEMBLY � � � � � � � � �� � �� �� �� ������� Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. - Page 25 REPLACEMENT PARTS LIST REPLACEMENT PARTS ARE AVAILABLE THROUGH YOUR RETAILER. BURNER ASSEMBLY C2801/02/03/04VF Item Description Natural Propane Piezo Ignition Module 45D0077 45D0077 Piezo Switch 45D0078 45D0078 Piezo Wire 00K0632 00K0632 Front Burner 44D0020K 44D0020K Rear Burner 45D0527K 45D0530K Control Valve 14D0467 14D0468 Front Burner Injector...
-
Page 26: Troubleshooting
TROUBLESHOOTING Turn appliance OFF and allow to cool before servicing. Only a qualified service person should service and repair the heater. Note: All troubleshooting items are listed in order of operation. REMEDY POSSIBLE CAUSE OBSERVED PROBLEM 1 Replace ignitor. When ignitor button is pressed, 1. - Page 27 TROUBLESHOOTING If the gas quality is bad, your pilot may not stay lit, the burners may produce soot and the heater may backfire when lit. If the gas quality or pressure is low, contact your local gas supplier immediately. REMEDY POSSIBLE CAUSE OBSERVED PROBLEM ODS/pilot lights, but flame...
- Page 28 NOTES 45D0080...
- Page 29 NOTES 45D0080...
-
Page 30: Warranty
Fiber Logs, Catalytic Filter and Aluminized Burners. BASIC WARRANTY Monessen Hearth Systems (MHS) warrants the components and materials in your gas appliance to be free from manufacturing and material defects for a period of one year from date of installation. After installation, if any of the components manufactured by MHS in the appliance are found to be defective in materials or workmanship, MHS will, at its option, replace or repair the defective components at no charge to the original owner.
