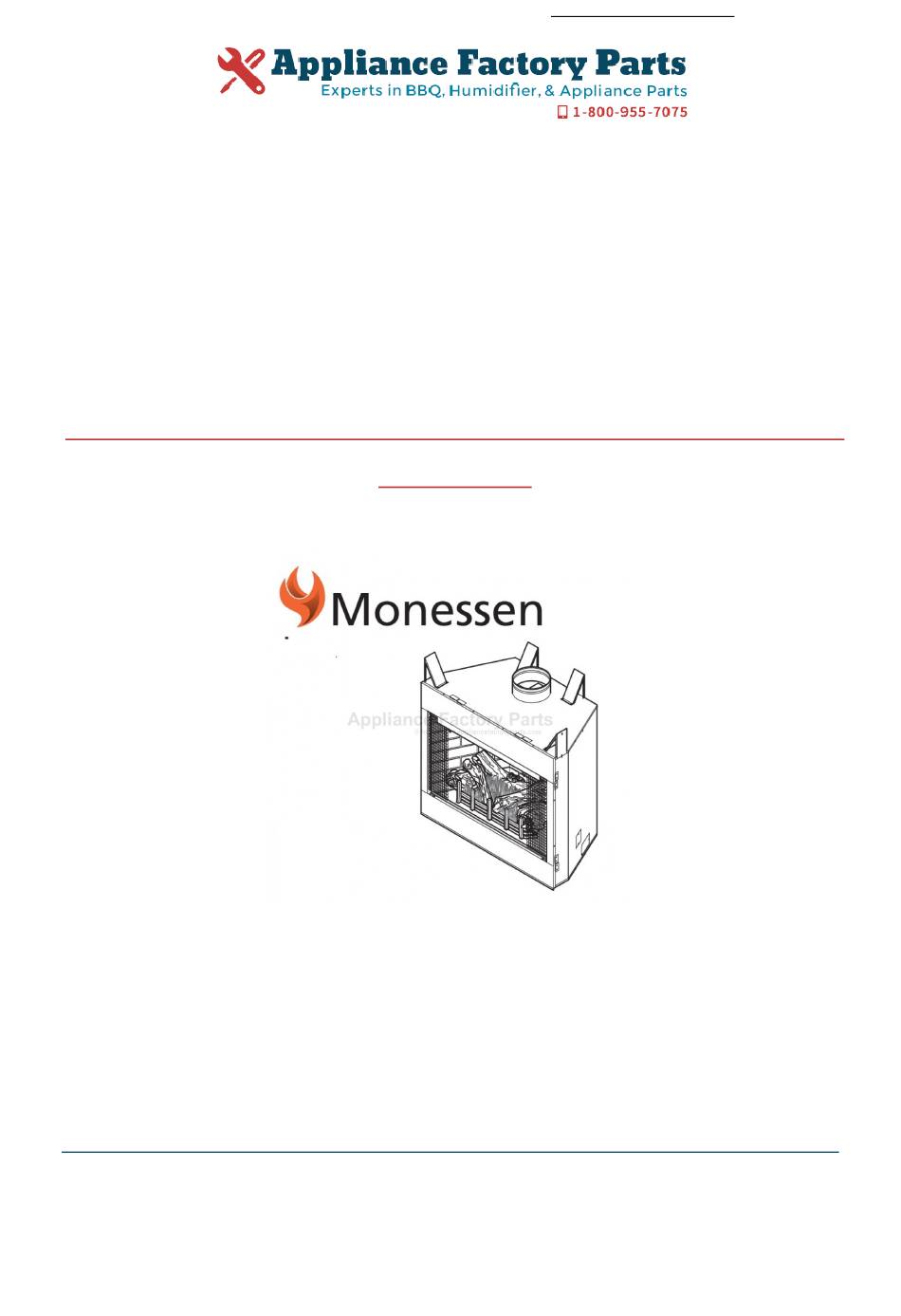

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Monessen Hearth SBV500PE Owner's Manual Shop genuine replacement parts for Monessen Hearth SBV500PE Find Your Monessen Hearth Fireplace Parts - Select From 701 Models -------- Manual continues below part list --------...
- Page 2 Available Replacement Parts for Monessen Hearth SBV500PE SRV41D0048 SWITCH ON/OFF/RS...
-
Page 3: What To Do If You Smell Gas
B-Vent Series Natural Vent Gas Fireplace Installation & Operating Instructions Models: BBV400, SBV400, SBV500 WARNING IF THE INFORMATION IN THESE INSTRUCTIONS IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PER- SONAL INJURY OR LOSS OF LIFE. —... -
Page 4: Table Of Contents
BBV, SBV Series Natural Vent Gas Fireplaces TABLE OF CONTENTS Thank you and congratulations on your purchase of an MHSC Fireplace Please read the Installation and Operation Instructions before using the appliance! IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible fire hazard and will void the warranty. -
Page 5: Important Safety Information
BBV, SBV Series Natural Vent Gas Fireplaces IMPORTANT SAFETY INFORMATION INSTALLER OWNER Please leave these instructions with the appliance. Please retain these instructions for future reference. • Read this owner’s manual carefully and completely before trying to assemble, operate, or service this fireplace. • Any change to this fireplace or its controls can be dangerous. • Improper installation or use of this fireplace can cause serious injury or death from fire, burns, explosions, electrical shock and carbon monoxide poisoning. This fireplace is a decorative gas appliance. This fire- 4. -
Page 6: Code Approval
BBV, SBV Series Natural Vent Gas Fireplaces IMPORTANT SAFETY INFORMATION Continued on Page 4 14. Do not use any solid fuels (wood, coal, paper, card- IMPORTANT: board, etc.) in this fireplace. Use only the gas type indicated on rating plate. PLEASE READ THE FOLLOWING CAREFULLY 15. -
Page 7: Product Specifications
BBV, SBV Series Natural Vent Gas Fireplaces PRODUCT FEATURES PRODUCT SPECIFICATIONS GAS PRESSURES • This appliance has been certified for use with either Natural Propane (LP) natural or propane gas. See appropriate data plates. Inlet Minimum 4.5” w.c. 11.0” w.c. •... -
Page 8: Fireplace Dimensions & Framing
BBV, SBV Series Natural Vent Gas Fireplaces FIREPLACE DIMENSIONS & FRAMING FIREPLACE FRAMING Firebox framing can be built before or after the appliance is set in place. Construct firebox framing following Figures 2 or 3 for your specific installation requirements. Refer to Figures 2 & 3 for firebox dimensions. - Page 9 BBV, SBV Series Natural Vent Gas Fireplaces FIREPLACE DIMENSIONS & FRAMING Min. Rough Opening 4” Depth B-Vent 21” (533 mm) 21 ” ” (546 mm) 1/2” or 5/8” (341 mm) 6 ” Drywall (165 mm) Spacers D - Min. Rough Opening Width Min. Rough Opening Height 40" 40 ” 1/2" or 5/8" (1016 mm) (1029 mm) Drywall 34”...
-
Page 10: Pre-Installation Information
BBV, SBV Series Natural Vent Gas Fireplaces PRE-INSTALLATION INFORMATION FIREPLACE LOCATION Plan for the installation of your appliance. This includes determining where the unit is to be installed, the vent configuration to be used, framing and finishing details, and whether any optional acces- sories (i.e. -
Page 11: Secure Fireplace
BBV, SBV Series Natural Vent Gas Fireplaces SECURE FIREPLACE TO FLOOR OR FRAMING The fireplace must be secured to the floor and/or to framing studs as shown in Figure 5. Use two (2) Framing wood screws or masonry/con- crete screws to secure fireplace 1/2”... -
Page 12: Venting Installation
BBV, SBV Series Natural Vent Gas Fireplaces VENT INSTALLATION Read all instructions completely and thoroughly before attempting installation. Failure to do so could result in serious injury, property damage or loss of life. Operation of improperly installed and maintained venting system could result in serious injury, property damage or loss of life. -
Page 13: Firestops
VENT INSTALLATION BBV, SBV Series Natural Vent Gas Fireplaces FIRESTOPS • NOTICE: When installing in a chase, you should insu- Locate chimney centerline dimension from a com- late the chase as you would the outside walls of your bustible back wall. Figures 2 & 3. Minimum firestop home. -
Page 14: Outside Combustion Air
BBV, SBV Series Natural Vent Gas Fireplaces OUTSIDE COMBUSTION AIR NOTE: The use of outside air for combus- tion is optional unless required by building codes. It is only necessary to supply outside combustion air to one side of fireplace. Use model OAC4 combustion air kit (refer to Page 17). -
Page 15: Combustion Air Assembly
BBV, SBV Series Natural Vent Gas Fireplaces COMBUSTION AIR ASSEMBLY MODEL OAC-4 COMBUSTION AIR ASSEM- DO NOT remove the cover if the outside air will not be connected. 1. Remove the cover plate from the 4” outlet opening location on the left outside of the fireplace. 2. -
Page 16: Fireplace Installation
BBV, SBV Series Natural Vent Gas Fireplaces FIREPLACE INSTALLATION CHECK GAS TYPE Use proper gas type for the fireplace you are installing. If you have conflicting gas types, do not install fireplace. See dealer where you purchased the fireplace for proper fireplace for your gas type. - Page 17 FIREPLACE INSTALLATION BBV, SBV Series Natural Vent Gas Fireplaces A manual shut-off valve must be installed Only persons licensed to work with gas upstream of the appliance. Union tee and piping may make the necessary gas plugged 1/8” NPT pressure tapping point connections to this appliance.
-
Page 18: Checking Gas Pressure
BBV, SBV Series Natural Vent Gas Fireplaces CHECKING GAS PRESSURE 1. Check gas type. The gas supply must be the same as stated on the appliance’s rating decal. If the gas supply is different from the fireplace, STOP! Do not install the appliance. Contact your dealer immediately. -
Page 19: Electrical Installation
BBV, SBV Series Natural Vent Gas Fireplaces ELECTRICAL INSTALLATION ELECTRICAL WIRING Electrical connections should only be performed by a qualified, licensed electrician. Main power must be off when connecting to main electrical power supply or performing service. All wiring shall be in compliance with all local, city and state codes. -
Page 20: Electronic Pilot Ignition Wiring
ELECTRICAL INSTALLATION BBV, SBV Series Natural Vent Gas Fireplaces ELECTRONIC PILOT IGNITION WIRING Do not connect 110-120V AC to the Re- mote Wall Switch. The appliance will malfunction or destroyed. Figure 17 - FP2027 Electronic Ignition System Wiring Diagram REMOTE WALL SWITCH Position the wall switch. -
Page 21: Final Installation
FINAL INSTALLATION BBV, SBV Series Natural Vent Gas Fireplaces ROCK WOOL PLACEMENT Cover with 1. Place rock wool on burner to provide glowing Rock Wool embers. For best results, pull the rock wool apart into pieces the size of a nickel or dime. Burner 2. -
Page 22: Operating Instructions
BBV, SBV Series Natural Vent Gas Fireplaces OPERATING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal in- jury or loss of life. A. This appliance is equipped with a pilot which must be lit with an ignitor while following these instructions exactly. B. -
Page 23: Lighting Pilot
OPERATING INSTRUCTIONS BBV, SBV Series Natural Vent Gas Fireplaces LIGHTING PILOT FOR THE FIRST TIME APPROVED LEAK TESTING METHOD If using a soap and water solu- You may check for gas leaks with the following methods only: tion to test for leaks, DO NOT •... -
Page 24: Lighting Burner
BBV, SBV Series Natural Vent Gas Fireplaces OPERATING INSTRUCTIONS LIGHTING BURNER MAIN BURNER SWITCH The “ON/OFF” switch for the main burner can be found behind the door of the fireplace. This switch allows you to turn on and to turn off the main burner without using the gas valve knob. -
Page 25: Lighting Electronic Ign
BBV, SBV Series Natural Vent Gas Fireplaces OPERATING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal in- jury or loss of life. A. This appliance is equipped with an ignition device (Piezo) which automatically lights the pilot. Do NOT try to light the burner by hand. -
Page 26: Cleaning And Maintenance
BBV, SBV Series Natural Vent Gas Fireplaces CLEANING and MAINTENANCE Turn off gas before servicing fireplace. It is recommended that a qualified service technician perform these check-ups at the beginning of each heating season. Thermocouple BURNER, PILOT AND CONTROL COMPARTMENT Thermopile Keep the control compartment, logs and burner areas surrounding the logs clean by vacuuming or brushing at least twice a year. -
Page 27: Vent System
CLEANING and MAINTENANCE BBV, SBV Series Natural Vent Gas Fireplaces VENT SYSTEM The fireplace and venting system should be inspected before initial use and at least annually by a quali- fied field service person. Inspect the external vent cap on a regular basis to make sure that no debris is interfering with the airflow. -
Page 28: Replacement Parts
BBV, SBV Series Natural Vent Gas Fireplaces REPLACEMENT PARTS FIREBOX COMPONENTS 62D4036... -
Page 29: Logs
REPLACEMENT PARTS BBV, SBV Series Natural Vent Gas Fireplaces FIREBOX COMPONENTS Item Description Qty. BBV400 SBV400 SBV500 Pull Screen Panel 61D0001 61D0001 61D0003 Refractory Side 61D0101 61D0101 Refractory Back 61D0102 61D0102 Left Refractory 62D1015 62D2015 Middle Refractory 62D1016 62D2016 Right Refractory 62D1017 62D2017 Optional Field Installed Accessoriesd... -
Page 30: Standing Pilot - Millivolt Control
BBV, SBV Series Natural Vent Gas Fireplaces REPLACEMENT PARTS STANDING PILOT - MILLIVOLT CONTROL 12, 13 62D4036... - Page 31 BBV, SBV Series Natural Vent Gas Fireplaces REPLACEMENT PARTS STANDING PILOT - MILLIVOLT CONTROL Item Description Qty. BBV400NV BBV400PV SBV400NV SBV400PV SBV500NV SBV500PV Gas Valve Assembly 37D0117 37D0118 37D0117 37D0118 37D0117 37D0118 Pilot Assembly 37D0018 37D0019 37D0018 37D0019 37D0018 37D0019 Replacement Thermocouple 37D1067...
-
Page 32: Electronic Ignition
BBV, SBV Series Natural Vent Gas Fireplaces REPLACEMENT PARTS ELECTRONIC IGNITION 62D4036... - Page 33 REPLACEMENT PARTS BBV, SBV Series Natural Vent Gas Fireplaces ELECTRONIC IGNITION Item Description Qty. BBV400NV BBV400PV SBV400NV SBV400PV SBV500NV SBV500PV Gas Valve Assembly 37D0016 37D0017 37D0016 37D0017 37D0016 37D0017 Pilot Assembly 37D0020 37D0021 37D0020 37D0021 37D0020 37D0021 Burner Tube 62D4051 62D4051 62D4052 62D4052...
-
Page 34: Troubleshooting
BBV, SBV Series Natural Vent Gas Fireplaces TROUBLESHOOTING STANDING PILOT IGNITION SYMPTOM POSSIBLE CAUSE ACTION 1. Spark igniter A. Wire disonnected. A. Open door and check to make sure wire is connected to will not light pi- igniter. lot after repeat- B. - Page 35 TROUBLESHOOTING BBV, SBV Series Natural Vent Gas Fireplaces ELECTRONIC IGNITION START 1. Turn gas supply off. Check: Line voltage (120VAC) 2. Turn ON/OFF switch to “ON” Low voltage transformer (19.5 minimum VAC) Power to module (24V Normal) ON/OFF switch Wiring connections Is there a spark across Unplug ignition lead and ignitor sensor gap?
-
Page 36: General Troubleshooting
BBV, SBV Series Natural Vent Gas Fireplaces TROUBLESHOOTING GENERAL TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE ACTION 1. Glass soots. A. Flame impingement on A. Install log set per instructions. logs. Inspect the injector and air intake area. Make sure this area does not have any blockage from debris and clean. - Page 37 BBV, SBV Series Natural Vent Gas Fireplaces 62D4036...
- Page 38 BBV, SBV Series Natural Vent Gas Fireplaces 62D4036...
- Page 39 BBV, SBV Series Natural Vent Gas Fireplaces 62D4036...
- Page 40 Massachusetts Residents Only — Please read and follow these special requirements BBV, SBV Series Natural Vent Gas Fireplaces 2. Approved Carbon Monoxide Detectors. Each carbon NOTE REGARDING VENTED PRODUCTS monoxide detector as required in accordance with the above This product must be installed by a licensed plumber or gas fitter provisions shall comply with NFPA 720 and be ANSI/UL 2034 when installed within the Commonwealth of Massachusetts.
-
Page 41: Limited Lifetime Warranty Policy
BBV, SBV Series Natural Vent Gas Fireplaces LIMITED LIFETIME WARRANTY POLICY LIFETIME WARRANTY The following components are warranted for life to the original owner, subject to proof of purchase; Firebox, Combus- tion Chamber, Heat Exchanger, Grate and Stainless Steel Burners. FIVE YEAR WARRANTY The following components are warranted for five (5) years to the original owner, subject to proof of purchase;... - Page 42 MHSC 149 Cleveland Drive • Paris, Kentucky 40361 www.mhsc.com...
