Summary of Contents for Sawo Innova INP-C

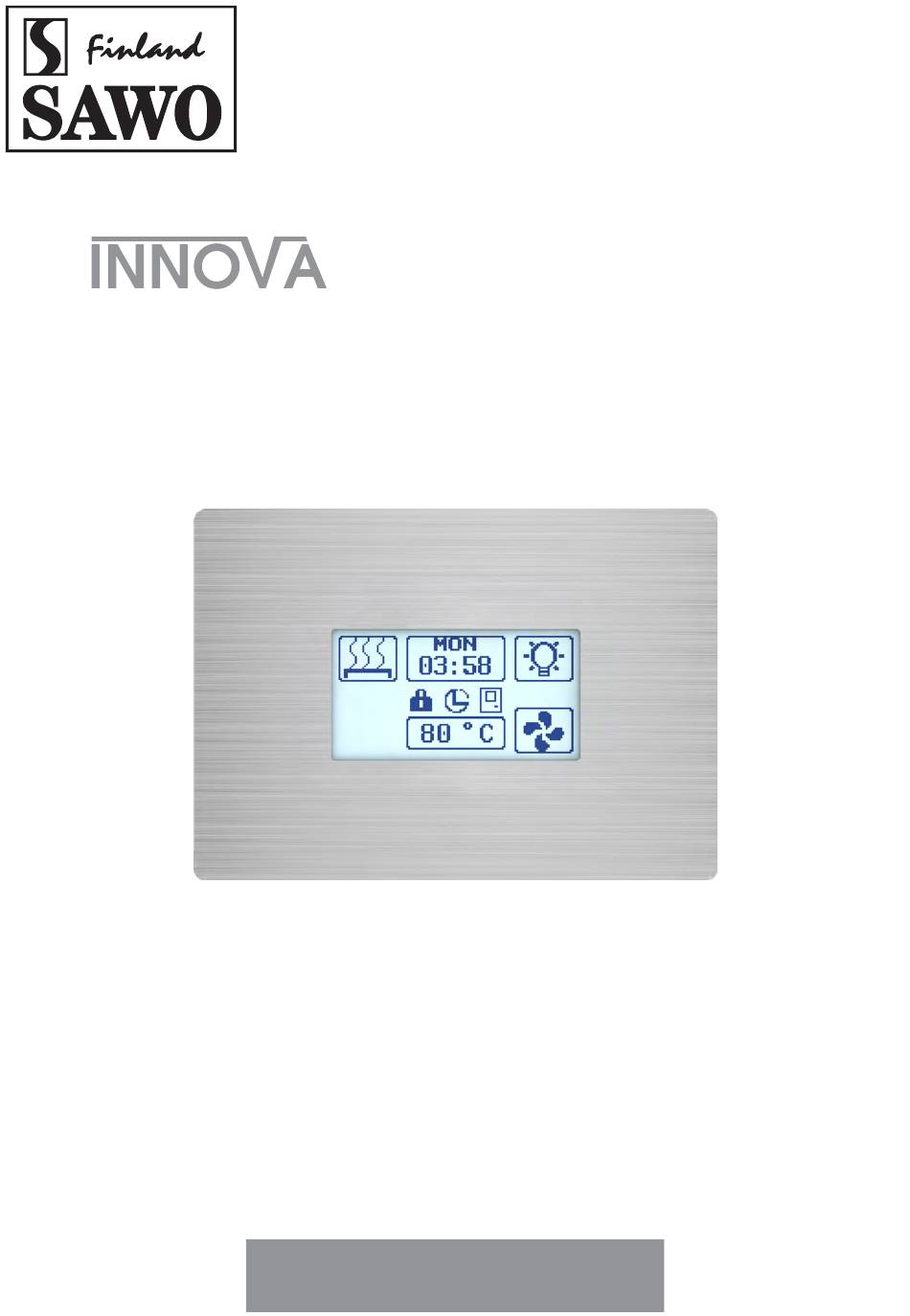

- Page 1 MANUAL STAINLESS STEEL TOUCH ( INP-C ) Congratulations on your purchase of Innova Control Unit! Please read the manual carefully before using the control. Not for use in the USA, Canada and Mexico. ENGLISH...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION OF THE INNOVA CONTROLS 1. Introduction of the Innova Controls ..............3 1.1 Precautions ......................3 2. Direction of Use .....................4 Congratulations on your purchase of Innova Control Unit! 2.1 Turning on the Control Unit ................4 2.1.1 Cabin Light .....................5 Innova Control Unit is developed to enhance your sauna bathing with a variety of features. -
Page 3: Direction Of Use
2. DIRECTION OF USE In easy mode some of the buttons are hidden. This feature makes Innova easy and fast to use. Long press the hidden easy-button for 10 seconds to activate easy-mode. In easy- mode it is still possible to use the heater, steamer and adjust cabin light. 2.1 Turning on the Control Unit When turning on the power controller, Innova Touch will turn on and automatically go to PRESS TO ACTIVATE HEATER. -
Page 4: Switching The Heater Or Steamer On
Up and Down 2.2 Switching the Heater or Steamer *ON Arrow Keys Once the heater has been switched on, The Up and Down Arrow Keys are repetitive. OFF-Mode ON mode will be displayed. The user can This means that holding down the up or change the settings simply by pressing the down key will cause the set-point value to Heater ON... -
Page 5: Session Time
2.3 Pre-run Timer 2.2.3 Session Time 01:00 01:00 Press the session time icon to change it OFF-Mode with up and down arrow keys. After setting the preferred session time, user can go When small timer icon When the session time expires, a high tone back to the previous menu with saved appears, there is 1 buzzer notifies the user. -
Page 6: Pre-Run Timer For Public Sauna With Weekly Timer
By pressing OFF-button you can cancel all 2.3.2 Pre-run timer for public saunas with weekly timer active timers and go back to OFF-mode. OFF-Mode By pressing ON-button you will move on to changing timer settings. Cancel all active NOTE When small timer icon timers by pressing the OFF button. -
Page 7: Changing The Setting
You can activate steamer by pressing the steamer icon. By pressing time you can 2.4 Changing the settings Activate steamer* Change selected field move the cursor from hours to minutes and From OFF mode you can access to settings, timer, Easy mode and turn on lights change the time value from arrow buttons. -
Page 8: Other Innova Control Feature
Software version has two parts, Interface Software Version and the Cotroller 2.6 Combi Features Board Version. Counters displays the usage of time and kilowatt of 2.6.1 Steamer LONG PRESS TO SEE ACTUAL USAGE the heater/steamer. This info is necessary to evaluate These features for steamer are only need of preventive maintenance and compute electricity consumption. -
Page 9: Technical Diagram
2.6.4 Technical Diagram For Built-in Controls, Control Unit Main Switch Built-in Control Jumper For 1 1 0 1 Models remove the interface Maximum Session Time NOTE PCB to access the (hours) When jumper is placed in the Fig. 1 Session Time jumper. Adjust this jumper 12 hour setting, 6 hours OFF Make sure that pin header... -
Page 10: Remote And Alarm Connections
3. REMOTE AND ALARM CONNECTIONS Stainless Steel Touch Control 3.1 Water Refill Insert RJ Cable (Back of the user’s panel) REMOTE CONTROL FILL TEXT WILL APPEAR WHEN CIRCUIT DIAGRAM WATER LEVEL IS LOW. YOU CAN MUTE THE ALARM BY PRESSING Emergency PUSH BUTTON FILL TEXT/FAUCET ICON. -
Page 11: Assembly And Installation
4. ASSEMBLY AND INSTALLATION 4.2 Power Controller Heater Connection The power controller or the separate control The heater is connected to the electrical The Innova Control Unit consists of the panel must not be located inside the sauna network semi-stationarily with a H07RN-F Innova Control panel, Power Controller room or in places where temperature can rubber cable or its equivalent. -
Page 12: Sensors
4.4.2 Sensor location with heaters mounted on the floor more than 200mm from the wall 4.4 Sensors One or two sensors can be connected to the However, if the heater is more than 200mm Top view Side view Fig. 8 Fig. -
Page 13: Door Sensor (Optional)
Power Controller capacitor motor. The maximum power OPTIONAL is100W with 230 VAC. Interface Holder Contact your SAWO distributor Refer to Technical Diagram Unscrew Push to open Unscrew NOTE! When you wish to use an optional Interface holder, no need to cut a section in your sauna. -
Page 14: The Control Unit Main Switch
4.10 The Control Unit Main Switch 5. TROUBLESHOOTING The control unit switch can be found on the top end of the unit. Using this switch, you can isolate the electronics from If an error occurs, the heater will be switched the mains power supply. -
Page 15: Symbol Reference
6. SYMBOL REFERENCE Buttons Short press To switch on – Manual Sauna session Selector UP Heater ON 1 ANIMATED Long press and no pending drain, Switch display o autofan or active autosession Selector DOWN Steam ON 1 ANIMATED Dat eand time Change date and time from settings Selector LEFT Short press... - Page 16 Indicators Key Lock Autodrain Preset time activated Door Lock Save and Exit Preset Time Steam Generator is remotely controlled Activate Control Alarm Day and Time Cabin Dry Hours Low Water Level Minutes Combi Tank (Alternate) Low Water Level Combi Tank Kilowatt Indicator Cabin Drying Time Counter Draining...
-
Page 17: Cabin Light
Subject to change without notice. for example LED lights, compact fluorescent lights and other similar lights are not compatible with Innova sauna controller. Damages caused by connecting these non-compatible lights are not covered by warranty. www.sawo.com | info@sawo.com...
