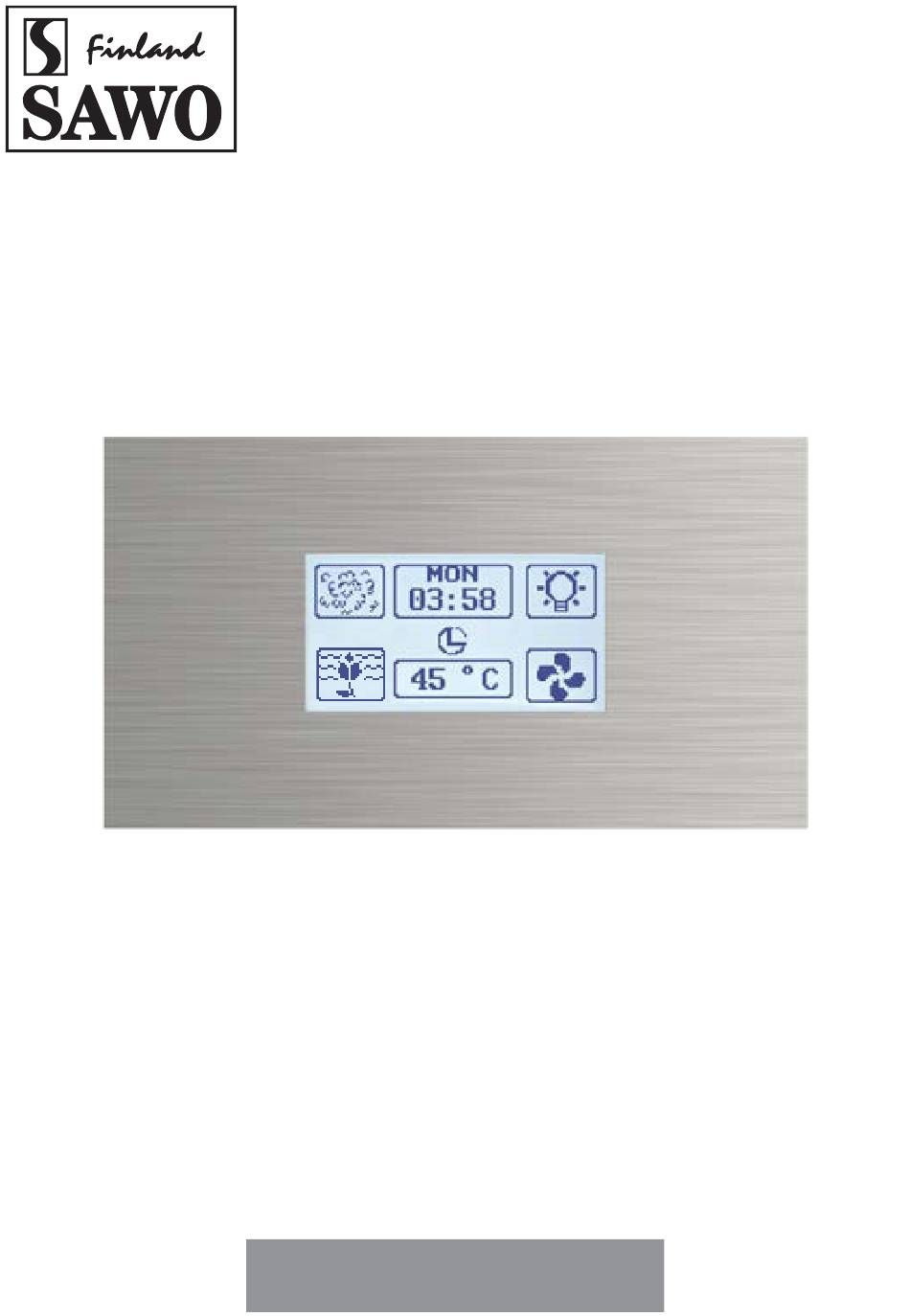

- Page 1 MANUAL STAINLESS STEEL TOUCH CONTROL FOR STP and STN STEAM GENERATORS Congratulations on your purchase of Stainless Steel Touch Control Unit! Please read the manual carefully before using the steam generator. Not for use in the USA, Canada and Mexico.
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ....................3 INSTALLING THE CONTROL UNIT ..............4 OFF MODE ......................5 ON/OFF Button ....................5 Current day & Time Button .................5 Light Button .......................5 Hidden Button ....................5 Settings Menu and Keylock .................6 Day and Time ....................6 Kilowatt Value ....................6 Counters ......................6 Autodrain .....................7 Decalcifying ....................7... -
Page 3: Introduction
INTRODUCTION There are five different operation modes in the unit: OFF, ON, Standby, Easy Mode and Drain. The user can easily switch between different modes making the steam bathing more convenient. To use the steam room, the control unit needs to be in ON Mode. In the ON mode, the steam generator is producing steam and temperature in the steam room is kept in preferred set temperature with occasional discharge of steam. -
Page 4: Installing The Control Unit
INSTALLING THE CONTROL UNIT Check the most suitable area to place your steam generator control. The control and the steam generator should be accessible for the user and for maintenance. Do not install the control unit inside the steam room! The cable connecting the control unit and the steam generator is 7.5 meters long. -
Page 5: Off Mode
OFF MODE Current Day and Time Light Hidden Button Settings Menu ON/OFF Button Pressing shortly the ON button will switch the steam generator ON. Temperature and session-time setting is automatically set based on the saved settings from the previous session. To change the settings, press the Settings Menu. -
Page 6: Settings Menu And Keylock
Settings Menu and Keylock The Settings Menu is only available in the OFF State. Press not less than 5 seconds and release the button to enter setup. A beeping sound will signal the change of menu status. Here you may preset session time, temperature, fan, light, perform steam generator maintenance and access to useful information about your steam control system. -
Page 7: Autodrain
Autodrain Bold outline means selected. The autodrain is set to ON by default. For manual drain, select OFF to deactivate the function. When autodrain is ON, it will automatically drain the water inside the steam generator tank after use. In case of power interruption, it will continue to drain when detecting a high water level in the tank. -
Page 8: Auto Set Fan
Auto Set Fan Auto fan turns on the fan once control goes to Off Mode to dry out the steam room. Fan will remain on for selected 01:15 time. You may adjust the time from 0 - 24 hours with 15minute intervals. -
Page 9: Preset Time Settings
PRESET TIME SETTINGS Current Day and Time Long press to activate the Preset Settings Preset activated Preset Time This can be switched OFF/ON. A small icon appears on the screen indicating that the Preset Time is activated. Press ON to set preset time. When presetting time, you can set the day and time for your steam session. -
Page 10: On Mode
ON MODE Day and Session Time Light - Dimmer (Optional) Steam ON Aroma (Optional Room Temperature Fan (Optional) Steam ON The steam generator produces steam during ON mode. In this mode, you will find the steam button animated, indicating that the steam session is ongoing. -
Page 11: Optional Features
OPTIONAL FEATURES Check your steam generator if these features are included. Aroma This icon appears when aroma feature is present and only in the On Mode. Short press this animated button to switch on or off the aroma pump. Long press the button to adjust the settings. -
Page 12: Standby Mode
STANDBY MODE Current Day and Standby Time Light Pause Standby Mode is activated when Steam ON button is pressed or Session Time has expired. Optional features such as Dimmer and Fan can be set at this state. In the Standby Mode, steam room temperature will be maintained at a certain level (refer to standby temperature setting on page 7) Also water inside steam generator will be kept hot to give user fast steam when starting steam session. -
Page 13: Easy Mode
EASY MODE Light Hidden button See how to switch OFF Mode to Easy Mode. Refer to page 5. The Easy mode is a simplified ON State version. It displays the basic important functions of steam operation such as; Session Time, Temperature and Lights. Press the session time, temperature and lights buttons to change their settings. -
Page 14: Steam Generator Dip Switches
STEAM GENERATOR DIP SWITCHES FIRST BLOCK SECOND BLOCK STAND-BY ON/OFF Standby time Session Time Standby time can be set according Session time can be set according to user preferences by setting dip to user preferences by session dip switches on the power controller board switches on the power controller board. -
Page 15: Control Panel Dip Switches
Start up logo Easy mode UI is set to Easymode, Start default in normal mode. Normal mode cannot be Easy mode can be activated activated by user by user. Start up logo SW2 SW3 SW4 No Logo Sawo Logo ENGLISH... -
Page 16: Remote And Alarm Connections
REMOTE AND ALARM CONNECTIONS (Back of the user’s panel) Insert RJ Cable WIRE: WIRE: 0.5 mm 0.5 mm (Alarm) (Remote) Emergency Alarm The steam generator control has a provision for emergency alarm system. Alarm button must have potential free momentary or latching contacts. Long press OK button if alarm has been settled. -
Page 17: Maintenance
They are connected to the water source of the steam generator’s water inlet. SAWO Decalcifying Solution can be used for decalcification. Follow these guidelines to perform preventative maintenance of the steam generator. -
Page 18: Troubleshooting
TROUBLESHOOTING If an error occurs the steam generator will automatically switch off. A warning beep will alarm the user every 2 seconds. The error code will be displayed blinking in the control panel, see the table below. Please note, only a qualified electrician or maintenance personnel are allowed to make service operations and repairs! Long press OK button to switch OFF Mode. - Page 19 Code Problem Solution Water level too high and Check that the drain valve is not blocked. Clean operation not permitted. the level probes. If no problem can be found, contact the retailer. Water level too low and Check that water supply is open and there is operation not permitted.
- Page 20 Subject to change without notice. www.sawo.com | info@sawo.com...
