FireplaceXtrordinair IronWorks Face 564 Installation Instructions

SKU's and Compatibility
IronWorks Face with Barrier Screen (New)
Charcoal
(discontinued)
sku# 94500444
sku# 95400437

564 SS/DF/DLX w Barrier (2014 or Later)

564 HO GS w Barrier (2014 or Later)

564 25k

564 35k
Packing List

Faceplate

Upper and Lower Grills
Sizing
Width
Height
Depth on Hearth
* This dimension is the minimum depth. The face may be positioned to accommodate different facing
depths, making this dimension up to 1" larger.
Installation
Carefully remove the packaging and lock-ties from the faceplate and doors.

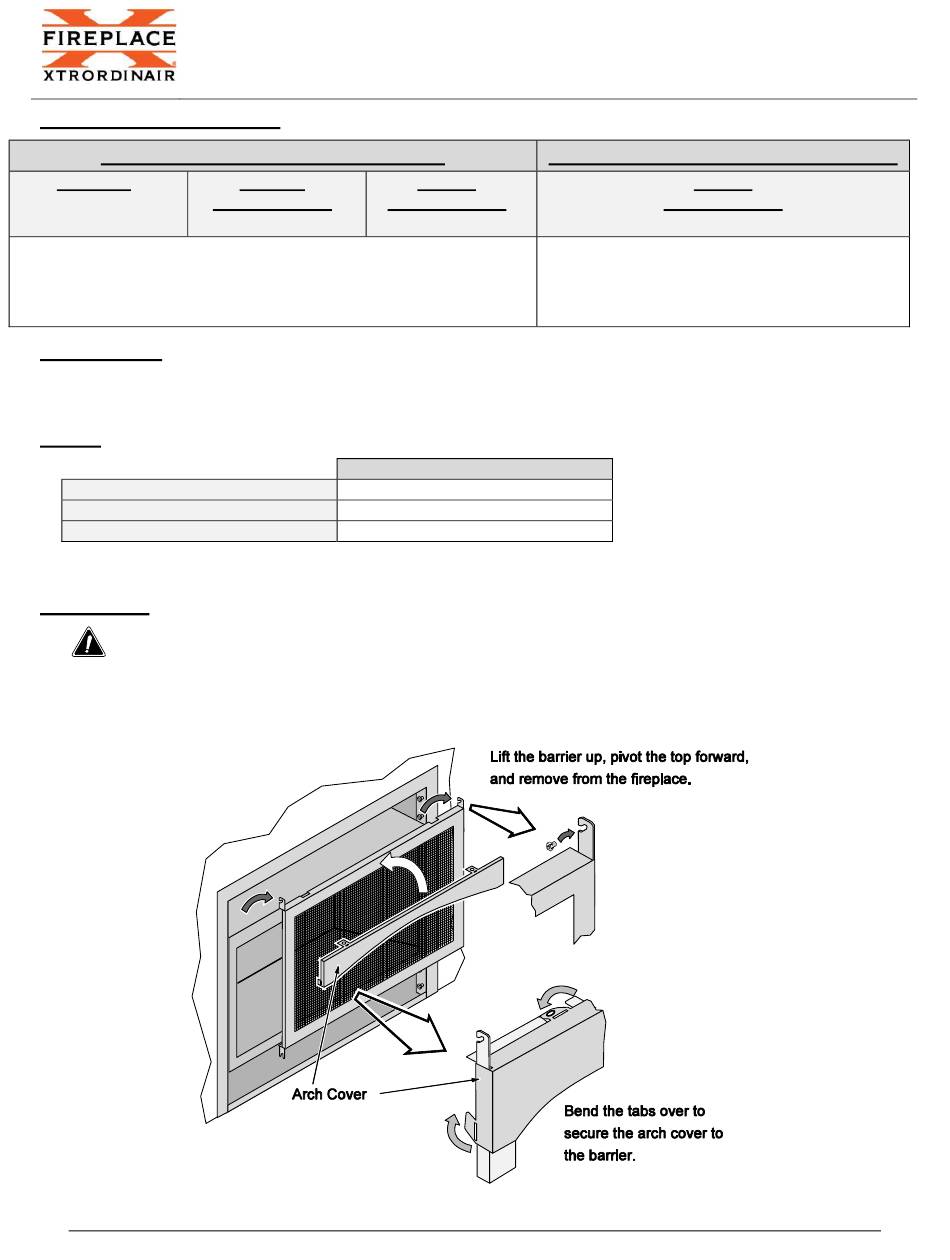

1. Remove the glass barrier screen (see owner's manual for details). Secure the arch cover to the
barrier following the directions below (arch cover is shipped with the fireplace). Replace the glass
barrier.
Page 1 of 4
564 IronWorks Face
Installation Instructions
Burnish Bronze
(discontinued)
sku# 95400436
17601658-NEW.docx — 5/4/21
IronWorks Face – Non-Barrier Screen (old)

564 SS/DF/DLX (no barrier)

564 HO GS (no barrier)

Doors (Left and Right)

(6) #8 x 3/8" Sheet Metal Screws
Faceplate
36-1/8"
29-1/8"
1/2" *
Bronze
(discontinued)
sku# 95400432
