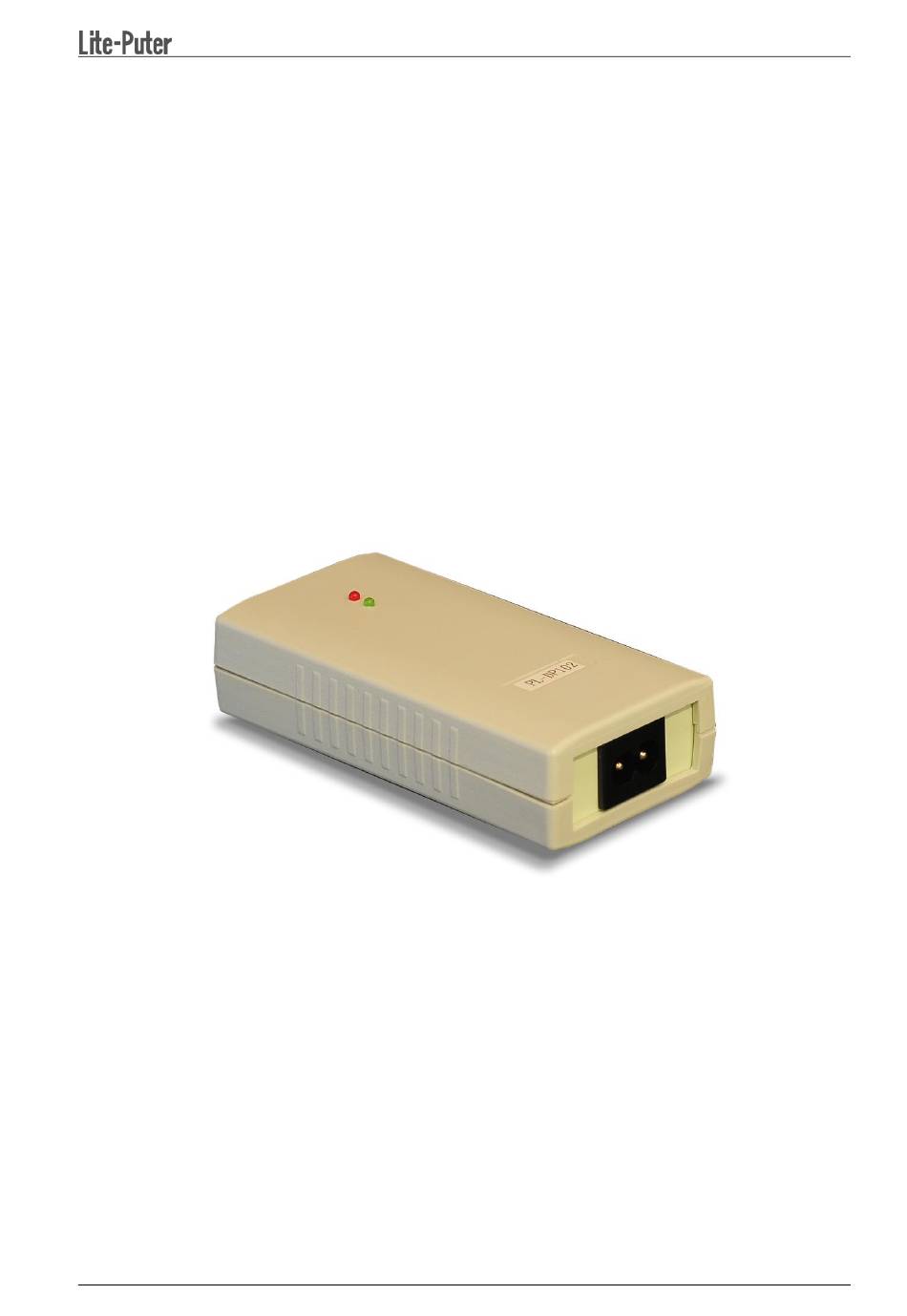

- Page 1 User Manual PL-DP102 DMX to PLC Interface PL-DP102 [EUM-A]...
-
Page 2: Table Of Contents
1-3 Dimension ........................ 2 1-4 Function ........................3 1-5 Diagram ........................4 2 DIP Set ..........................5 2-1 DIP Setting ....................... 5 2-2 DMX Zone Setting Guide ..................6 2-3 Zone Setting Guide ....................6 Limited Warranty ....................... 7 PL-DP102 [EUM-A]... -
Page 3: Introduction
1 Introduction 1-1 Feature 1. Conversion of DMX to PLC and load to AC power line 1-2 Specifications Power supply: AC 100~240V Protocol: DMX-512 Signal connector: telephone socket 6P6C Dimension: 60(W) x 30.4(H) x 120(D) mm Weight: 140g PL-DP102 [EUM-A]... -
Page 4: Dimension
1-3 Dimension PL-DP102 [EUM-A]... -
Page 5: Function
1-4 Function DMX input terminal PLC signal indicator AC power indicator AC power terminal（AC 100~240V） PL-DP102 [EUM-A]... -
Page 6: Diagram
1-5 Diagram PL-DP102 [EUM-A]... -
Page 7: Dip Set
In the system of DMX to PLC, DMX only can control 48 zones of PLC, so over 48 zones should be controlled by DIP setting. DIP (PL-DP102) is composed of 2 parts. The former 6 digits are set as DMX, displayed as binary mode. When DIP.1 is up (ON), PLC 1 can be controlled by DMX 1;... -
Page 8: Dmx Zone Setting Guide
101101 011100 011110 011101 111100 111110 111101 000010 000001 000011 2-3 Zone Setting Guide Zone Dip Switch Zone Dip Switch Zone Dip Switch 1000 0110 1101 0100 1110 0011 1100 0001 1011 0010 1001 0111 1010 0101 1111 PL-DP102 [EUM-A]... -
Page 9: Limited Warranty
1. Lite-Puter is only responsible for the product itself. 2. Lite-Puter warrants to repair any manufacturing defects within one year of distribution date. 3. Lite-Puter does not offer on-site service. Should a defect appear in Lite-Puter’s product, please deliver the product to local distributors or Taiwan Headquarters.
