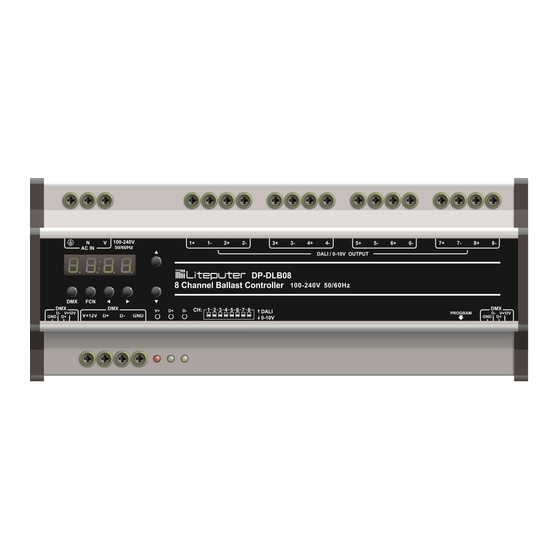

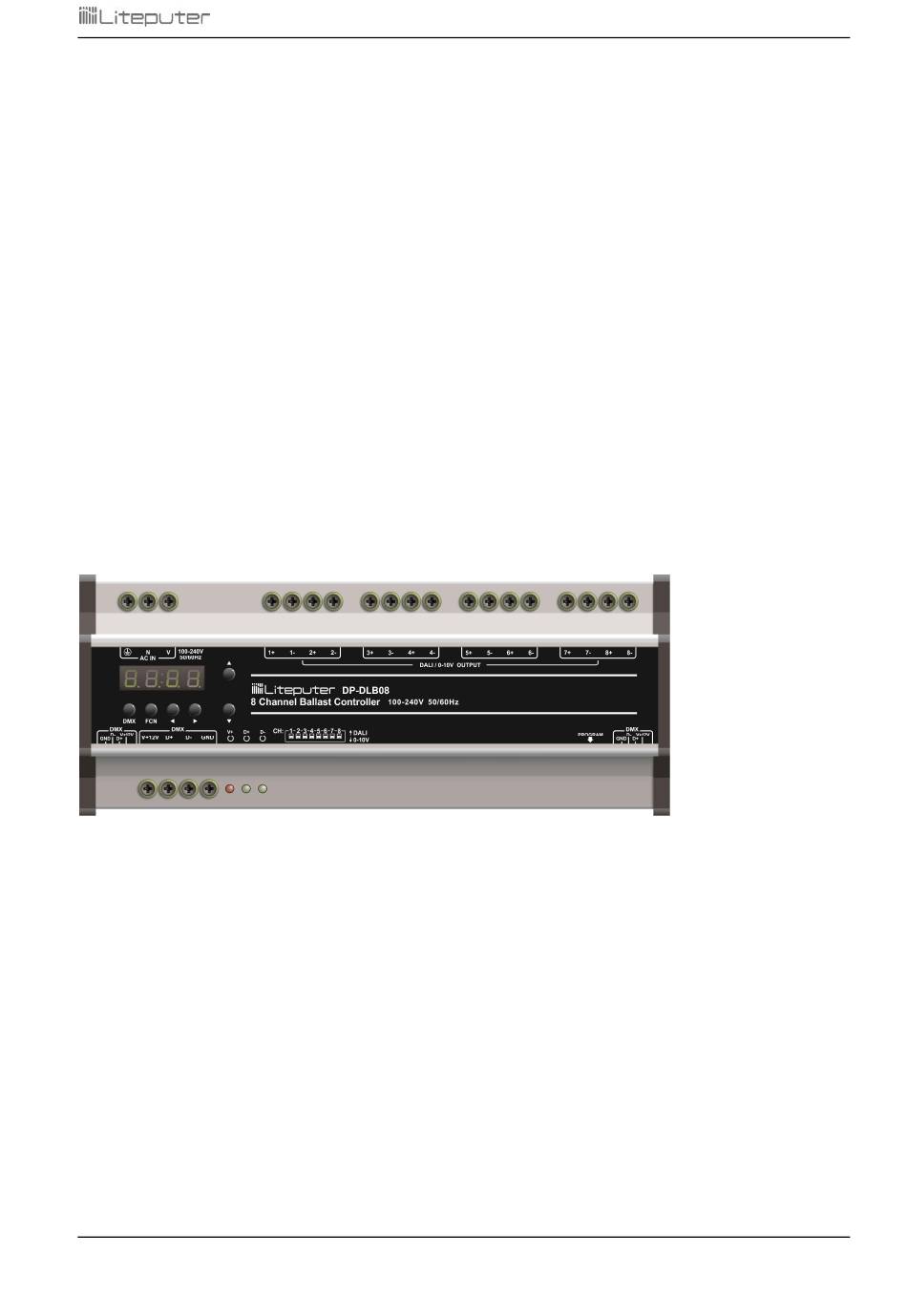

- Page 1 USER MANUAL DP-DLB08 8 Channel Ballast Controller DP-DLB08 [EUM-A]...
-
Page 2: Table Of Contents
2-4 DMX By Pass Setting ....................7 2-4 ZONE Setting ....................... 8 2-5 Analog Fade Time Setting (0-10V mode Valid).............. 9 2-6 DALI Fade Time Setting (DALI mode valid) ..............10 2-9 Software Version ......................11 Limited Warranty ..........................12 DP-DLB08 [EUM-A]... -
Page 3: Before Installation
2. Protocol: EDX (RS-485)/DMX-512 3. Output Channel：8 Channel each can be set as DALI/0-10V mode individually. 4. Dimension： 215 (W) x 90 (H) x 62 (D) mm 5. Weight：500g approximate 6. Digital Signal Connector: 4Pin green terminal 1-3 Dimensions 90mm 215mm DP-DLB08 [EUM-A]... -
Page 4: Functions Introductions
DALI/0-10V mode can be configured by DIP switch (S1).Each channel can be set as DALI/0-10V mode individually. DIP switch turn on means DALI mode, reverse dip switch to 0-10V mode. Examples: setting channel 1 as DALI mode; channel 2-8 as 0-10V mode. DP-DLB08 [EUM-A]... -
Page 5: Operations
After setting, press 【DMX】 to enter Scene Saving function or press 【FCN】to leave In DALI mode, DP-DLB08 sends level value to DALI bus when every time changes level value. Please make sure that DALI ballast does connect to DP-DLB08 when every time changes level value. -
Page 6: Scene Save And Recall Setting
2-4 ID Setting STEP-1 In the main screen, Press【FCN】, the LED shows STEP-2 Press【DMX】, LED shows STEP-3 Press【▲】or【▼】to set the ID number from 001 to 999. After setting, press 【DMX】 to save or press 【FCN】to cancel. DP-DLB08 [EUM-A]... -
Page 7: Dmx Setting
STEP-1 In the main screen, Press【FCN】, the LED shows STEP-2 Press【▼】,LED shows STEP-3 Press【DMX】, LED shows It means that the DMX-512 start address of DP-DLB08 is 01. Press【▲】or 【▼】 can modify the value from 1 to 512. After setting, press 【DMX】 to save or press 【FCN】to cancel. -
Page 8: Zone Setting
Press 【▲】 or 【▼】 can modify ON/OFF. After setting, press 【DMX】 to save or press 【FCN】 to cancel. 2-4 ZONE Setting Each channel can set different ZONE and Start Channel in the DP-DLB08 STEP-1 In the main screen, Press【FCN】, the LED shows STEP-2 Press【▼】several times until LED shows... -
Page 9: Analog Fade Time Setting (0-10V Mode Valid)
Scene ——Press【▲】or 【▼】 can modify the scene value from 1 to 8 and OFF Fade time ——Press【▲】or 【▼】 can modify the fade time value from 0.1sec to 99min and without fade time(0.0) After setting, press 【DMX】 to save or press 【FCN】to cancel. DP-DLB08 [EUM-A]... -
Page 10: Dali Fade Time Setting (Dali Mode Valid)
After setting, press 【DMX】send setting to DALI Bus or press 【FCN】to cancel. DP-DLB08 sends fade time setting to DALI Bus when setting DALI Fade and reboot DP-DLB08. Please make sure that DALI ballast does connect to DP-DLB08 when restarting and setting DALI Fade DP-DLB08 [EUM-A]... -
Page 11: Software Version
2-9 Software Version STEP-1: In the main screen, Press【FCN】, the LED shows STEP-2: Press【▼】several times until LED shows STEP-3:Press【DMX】, LED shows the firmware version DP-DLB08 [EUM-A]... -
Page 12: Limited Warranty
1. Lite-Puter is only responsible for the product itself. 2. Lite-Puter warrants to repair any manufacturing defects within one year of distribution date. 3. Lite-Puter does not offer on-site service. Should a defect appear in Lite-Puter’s product, please deliver the product to local distributors or Taiwan Headquarters.
