Summary of Contents for Lynx LN24BF-1

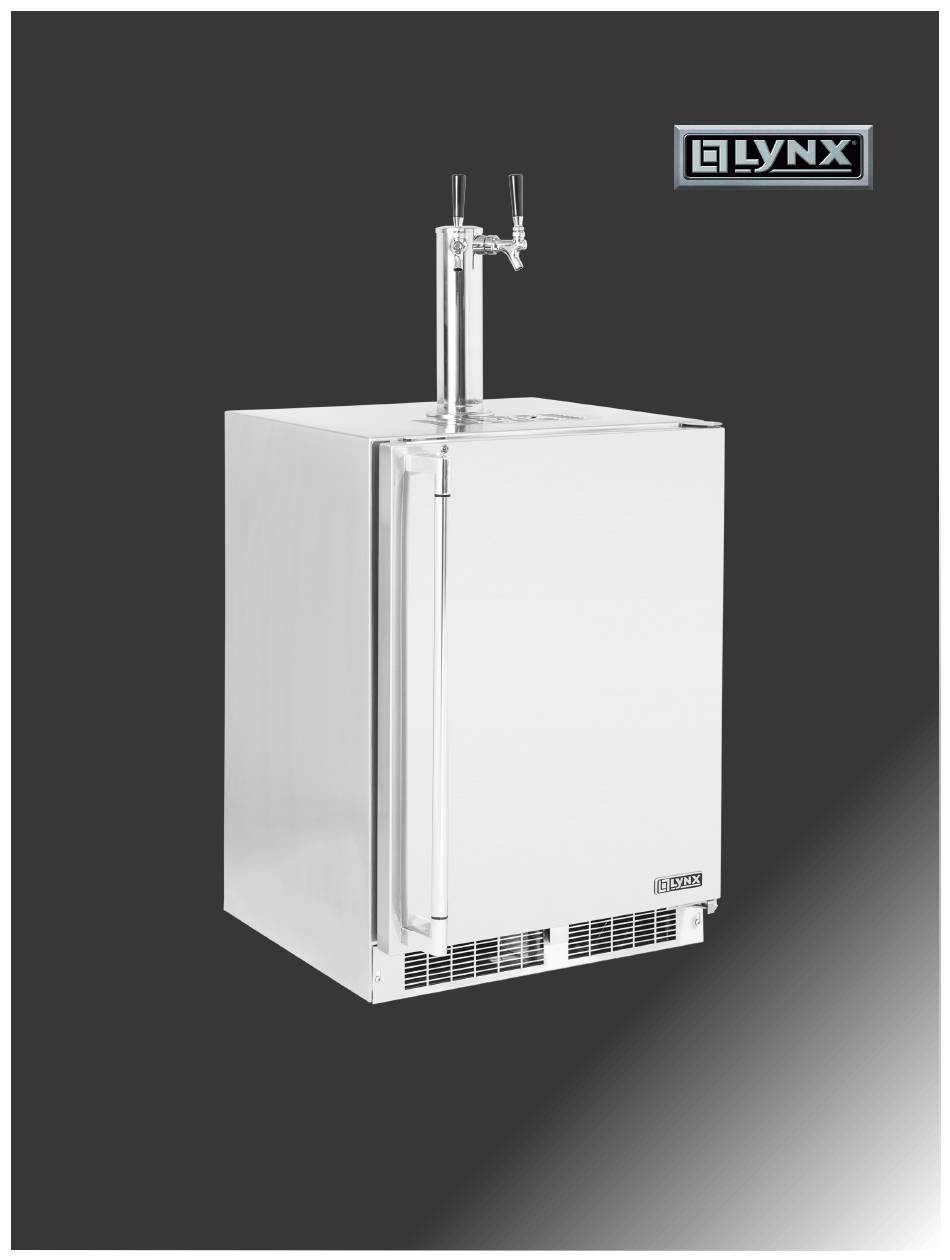

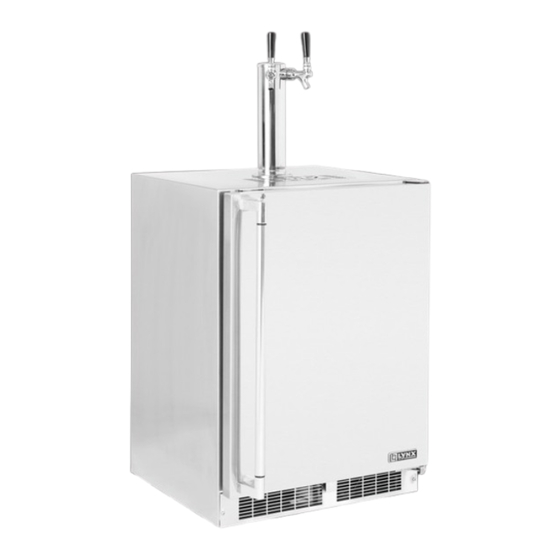

- Page 1 MAKE THE MOST OF YOUR LN24BF OUTDOOR REFRIGERATOR/BEVERAGE DISPENSER CARE & USE/INSTALLATION...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions Contents Warnings and safety instructions appearing in this guide Safety information ...............2 are not meant to cover all possible conditions and situa- Unpacking your appliance ..........3 tions that may occur. Common sense, caution, and care Installing your appliance ............4 must be exercised when installing, maintaining, or operat- Door Reversal ..............6 ing this appliance. -
Page 3: Unpacking Your Appliance
UNPACKING YOUR APPLIANCE Warranty Registration WARNING It is important you send in your warranty registration card immediately after taking delivery of your appliance or you EXCESSIVE WEIGHT HAZARD can register online at Use two or more people to move product. www.lynxgrills.com/support/registration Failure to do so can result in personal injury. -
Page 4: Installing Your Appliance
For this reason it is important this area not be obstructed and the grille openings kept clean. Lynx Grills does not recommend the use of a custom made grille as air flow may be restricted. -
Page 5: Electrical Shock Hazard
INSTALLING YOUR APPLIANCE WARNING Do not remove ground prong Electrical Shock Hazard • Do not use an extension cord with this appliance. They can be hazardous and can degrade product performance. • This appliance should not, under any circumstanc- es, be installed to an un-grounded electrical supply. •... -
Page 6: Product Dimensions
PRODUCT DIMENSIONS Door Reversing Instructions Tools Needed: • 1/8” Hex Key • 5/32” Hex Key • Phillips Screwdriver Open door and remove Hinge Pin from the Upper Hinge using a 1/8” Hex Key tool making sure to steady the Using a Phillips Screwdriver, remove the 6 screws from both the Upper and Lower Hinges and save for later steps Once the Hinges are removed from the unit, using a Phillips Screwdriver, remove the Bushing Screw and Hinge Pin Screw and save for later steps On the Bottom Hinge, reattach the Bushing Screw and Hinge Pin Screw to the opposite side... - Page 7 6. Remove the door switch actuator tab from the door and attach it to the opposite side Door switch actuator tab 7. Reattach the Upper and Lower Hinges, and Hinge Brackets to opposite sides. Then install the door. CARE AND USE/INSTALLATION...
- Page 8 PRODUCT DIMENSIONS ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS MODEL "A" "B" "C" "D" "E" "F" "G" "H" "J" 24" **34" to 35" ⁄ " ⁄ " to 34 ⁄ " ⁄ " ⁄ " ⁄ " ⁄ " LN24BF (61 cm) (86.4 to 88.9 cm) (60.7 cm) (85.7 to 88.3 cm)
- Page 9 PRODUCT DIMENSIONS PRODUCT DATA ELECTRICAL PRODUCT MODEL REQUIREMENTS# WEIGHT 140 lbs LN24BF 115V/60Hz/15A (63.6 kg) "J" "H" "G" "D" "E" Figure 9 ⁄ " (54.6 cm) "F" * Depth dimension of rough-in opening may vary depend- ing on each individual installation. To recess entire door "F" dimension plus 1"...
-
Page 10: Using Your Electronic Control
Time to reach set point varies based upon ambient temperature, temperature of product loaded, door openings, etc. Lynx recommends allowing the unit to reach set points before loading. - Page 11 USING YOUR BEVERAGE DISPENSER If you are using a quarter barrel of beer or wine, you can Shelving add shelf space for keeping your mugs chilled. The quarter barrel must set on the floor, it cannot fit on the shelf, see The unit is shipped with the (2) shelves taped in place in Figure 14.
-
Page 12: Using Your Beverage Dispenser
USING YOUR BEVERAGE DISPENSER Tools required for installation: This beverage dispensing unit will support one half ( ⁄ ) bar- rel or one quarter ( ⁄ ) barrel. The double draft tower units Flat bladed screwdriver can support two sixth ( ⁄... - Page 13 USING YOUR BEVERAGE DISPENSER Single Dispense Tower Kit Double Dispense Tower Kit Connect ,etc..Connect ,etc..Figure 22 Figure 21 Figure 17 Double Single Dispense Hose clamps Dispense Tower use for connections Tower Hose clamps use for connections Figure 16 Coupler Figure 23 Figure 18...
- Page 14 USING YOUR BEVERAGE DISPENSER 4. If you are installing your keg refrigerator under a coun- Rear of counter top ter you will need to drill 5 holes in the counter top to ⁄ " mount the tower. The first hole is a 1 ⁄...
- Page 15 USING YOUR BEVERAGE DISPENSER the faucet handle on the tower. 9. Hooking up the keg coupler to the keg: Verify the cou- pler is in the "OFF" position (see Figure 31a).Align the Connect lugs on the keg with the corresponding openings on the with "S"...
- Page 16 USING YOUR BEVERAGE DISPENSER Gas Regulator (Single Dispense Tower) Gas Regulator (Double Dispense Tower) Your beverage dispenser comes equipped with a 5 pound Your beverage dispenser comes equipped with a 5 pound gas tank and a single gauge regulator. The gauge reads the gas tank and a dual gauge regulator.
-
Page 17: Cleaning The Drain Sump
USING YOUR BEVERAGE DISPENSER AND CARE AND CLEANING Push faucet handle back toward Drain kit (All Models): Removable tower to close the faucet grate for clean- The drain kit is shipped in place and ready to use. To ing sump area empty: Pull drain hose out of bottle cap, remove bottle Unscrew from unit, unscrew cap and discard waste and rinse bottle. -
Page 18: Care And Cleaning
CARE AND CLEANING Faucet Cleaning Cleaning and Maintaining Dispensing System The dispensing system needs to be cleaned between Turn off the gas supply with the shutoff valve(s) under the usage to prevent spoilage and/or foul taste in your beer regulator (see Figure 33 or Figure 34) and open the faucet or wine. - Page 19 CARE AND CLEANING Front Grille Be sure that nothing obstructs the required air flow open- ings in front of the cabinet. At least once or twice a year, brush or vacuum lint and dirt from the front grille area (see page 4).
-
Page 20: Long Term Storage/Winterization
CARE AND CLEANING Long Term Storage/Winterization Time to Winterize, when the daily low ambient temperature is at or below 38° F. CAUTION Operating of the unit at ambient temperatures below the recommended Winterization temperature will void your war- Front grille ranty. - Page 21 CARE AND CLEANING 17. Thoroughly clean the door gasket with anti-bacterial cleaner to be followed with clean rinse water to remove any residual chemicals. 18. Thoroughly clean the exterior with a cleaner approved for stainless steel . Do not use any abrasive cleaners or scouring pads.
-
Page 22: Stainless Steel Maintenance
STAINLESS STEEL MAINTENANCE AND ENERGY SAVING TIPS After the stainless surfaces have been thoroughly cleaned, Background a good quality car wax may be applied to help maintain the finish. Stainless steel does not stain, corrode, or rust as easily as ordinary steel, but it is not stain or corrosion proof. -
Page 23: Obtaining Service
OBTAINING SERVICE If Service is Required: • If the product is within the first year warranty period please contact your dealer or call Lynx Grills Customer Service at 888-289-5969 for directions on how to obtain warranty coverage in your area. •... -
Page 24: Troubleshooting
TROUBLESHOOTING Before You Call for Service CAUTION If the appliance appears to be malfunctioning, read through this manual first. If the problem persists, check the trouble- shooting guide below. Locate the problem in the guide and In the unlikely event you lose cooling in your unit, do not refer to the cause and its remedy before calling for service. -
Page 25: Household Product Warranty
Undercounter refrigerators / Beverage Dispensers and all of their component parts, except as detailed below*†, are warranted to be free from defective materials or workmanship in normal residential use for a period of one (1) year from the date of original retail purchase. Lynx, warrantor, agrees to repair or replace, at its option, any part which fails or is found to be defective during the warranty period. - Page 26 The best outdoor kitchen products come from: Lynx Grills 62201 Highway 82 West Greenwood, MS 38930 Service: (888)-289-5969 www.lynxgrills.com All specifications and product designs subject to change without notice. Such revisions do not entitle 41016164 Rev B the buyer to corresponding changes, improvements, additions, replacements or compensation for 11/12/24 previously purchased products.
