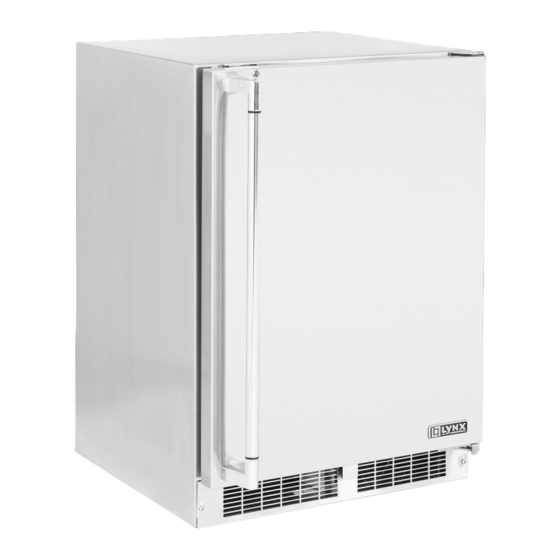

Lynx LN24REF Care & Use/Installation Manual
Outdoor refrigerator
Hide thumbs
Also See for LN24REF:
- Care & use/installation manual (20 pages) ,
- Care & use/installation manual (20 pages)
Related Manuals for Lynx LN24REF
Summary of Contents for Lynx LN24REF
- Page 1 MAKE THE MOST OF YOUR LN15REF / LN24REF / LN24REFG OUTDOOR REFRIGERATOR CARE & USE/INSTALLATION...
-
Page 2: Table Of Contents
CONTENTS AND SAFETY INSTRUCTIONS Important Safety Instructions Contents Safety information ...............2 Warnings and safety instructions appearing in this guide Unpacking your appliance ..........3 are not meant to cover all possible conditions and situa- Warranty registration .............3 tions that may occur. Common sense, caution, and care Installing your appliance ............4 must be exercised when installing, maintaining, or operat- Cabinet clearances ............4... -
Page 3: Unpacking Your Appliance
UNPACKING YOUR APPLIANCE Warranty Registration WARNING It is important you send in your warranty registration card EXCESSIVE WEIGHT HAZARD immediately after taking delivery of your appliance or you can register online at: Use two or more people to move product. www.lynxgrills.com/support/registration Failure to do so can result in personal injury. -
Page 4: Installing Your Appliance
Adjustable legs at the front and rear corners of the appli- ance should be set so the unit is firmly positioned on the floor and level from side to side and front to back. The over- all height of your Lynx appliance may be adjusted between the minimum, 33 ⁄... -
Page 5: Electrical Connection
INSTALLING YOUR APPLIANCE WARNING Electrical Shock Hazard Do not remove • Do not use an extension cord with this appliance. ground prong They can be hazardous and can degrade product performance. • This appliance should not, under any circumstanc- es, be installed to an un-grounded electrical supply. •... -
Page 6: Installing The Anti-Tip Device
INSTALLING THE ANTI- TIP DEVICE Anti-Tip WARNING Bracket Leveling Leg • ALL APPLIANCES CAN TIP RESULTING IN INJURY. • INSTALL THE ANTI-TIP Bottom View of ⁄ " BRACKET PACKED WITH Refrigerator (54.6 cm) THE APPLIANCE. • FOLLOW THE INSTRUC- TIONS BELOW Front of cabinet Figure 7 Anti-Tip Device... - Page 7 INSTALLING THE ANTI -TIP DEVICE NOTE When the floor mounted anti-tip bracket is used the mini- mum adjusted height of the cabinet is increased by ⁄ " (9 mm). "V" notches Rear Leveling leg in bracket Figure 8a Screw ⁄ "...
-
Page 8: Product Dimensions
" ⁄ " LN15REF (38.1 cm) (86.4 to 88.9 cm) (37.8 cm) (85.7 to 88.3 cm) (60.2 cm) (67.9 cm) (95 cm) (45.1 cm) LN24REF 24" **34" to 35" ⁄ " ⁄ " to 34 ⁄ " ⁄ " ⁄... - Page 9 PRODUCT DIMENSIONS PRODUCT DATA ELECTRICAL PRODUCT MODEL REQUIREMENTS # WEIGHT 105 lbs LN15REF 115V/60Hz/15A (47.7 kg) LN24REF 140 lbs 115V/60Hz/15A LN24REFG (63.6 kg) "J" "H" "G" "D" "E" Figure 11 ⁄ " (54.6 cm) "F" * Depth dimension of rough-in opening may vary depend- ing on each individual installation.
-
Page 10: Using Your Electronic Control
Time to reach set point varies based upon ambient temperature, temperature of product loaded, door openings, etc. Lynx Grills recommends allowing the unit to reach set points before loading. CARE AND USE/INSTALLATION... -
Page 11: Shelving Configurations
SHELVING CONFIGURATIONS Loading Tips and Suggestions Your appliance is equipped with a cantilever shelf system which provides maximum adjust ability and customizing of the shelving arrangements listed below. 15" (38.1 cm) Wide Models: a solid door. Figure 14. Figure 15 perforated metal shelf (2) perforated stainless steel... - Page 12 SHELVING CONFIGURATIONS To Add or Remove a Shelf CAUTION Remove stored product from the shelf. Do not try to remove a loaded shelf from the appliance. Grasp the shelf front with Never try to move a loaded shelf, remove everything from both hands, rotate the front upward and lift out.
-
Page 13: Care And Cleaning
CARE AND CLEANING Front Grille WARNING Be sure that nothing obstructs the required air flow open- ings in front of the cabinet. At least once or twice a year, Electrocution Hazard brush or vacuum lint and dirt from the front grille area (see •... -
Page 14: Long Term Storage/Winterization
CARE AND CLEANING Long Term Storage/Winterization 18. Do not place a cover on the unit, as this can trap con- densation. 1. Time to Winterize, when the daily low ambient tempera- After completion of the above, you may choose to store the ture is at or below 38°F (3.3°C). -
Page 15: Stainless Steel Maintenance
STAINLESS STEEL MAINTENANCE After the stainless surfaces have been thoroughly cleaned, Background a good quality car wax may be applied to help maintain the Stainless steel does not stain, corrode, or rust as easily as finish. ordinary steel, but it is not stain or corrosion proof. Stain- less steels can discolor or corrode if not maintained prop- erly. -
Page 16: Energy Saving Tips
Energy Saving Tips • If the product is within the first year warranty period please contact your dealer or call Lynx Grills Customer The following suggestions will minimize the cost of Service at 888.289.5969 for directions on how to obtain operating your refrigeration appliance. -
Page 17: Troubleshooting
TROUBLESHOOTING Before You Call for Service If the appliance appears to be malfunctioning, read through CAUTION this manual first. If the problem persists, check the trouble- shooting guide below. Locate the problem in the guide and In the unlikely event you lose cooling in your unit, do not refer to the cause and its remedy before calling for service. -
Page 18: Warranty
Any sealed refrigeration system component, as listed below, is warranted to be free from defective materials or workmanship in normal household use during the third through the sixth year from the date of original retail purchase. Lynx, warranter, agrees to repair or replace, at its option, any part which fails or is found to be defective during the warranty period. - Page 20 The best outdoor kitchen products come from: Lynx Grills 62201 Highway 82 West Greenwood, MS 38930 Service: (888)-289-5969 www.lynxgrills.com 41016154 Rev A All specifications and product designs subject to change without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, replacements or compensation for 5/19/21 previously purchased products.
