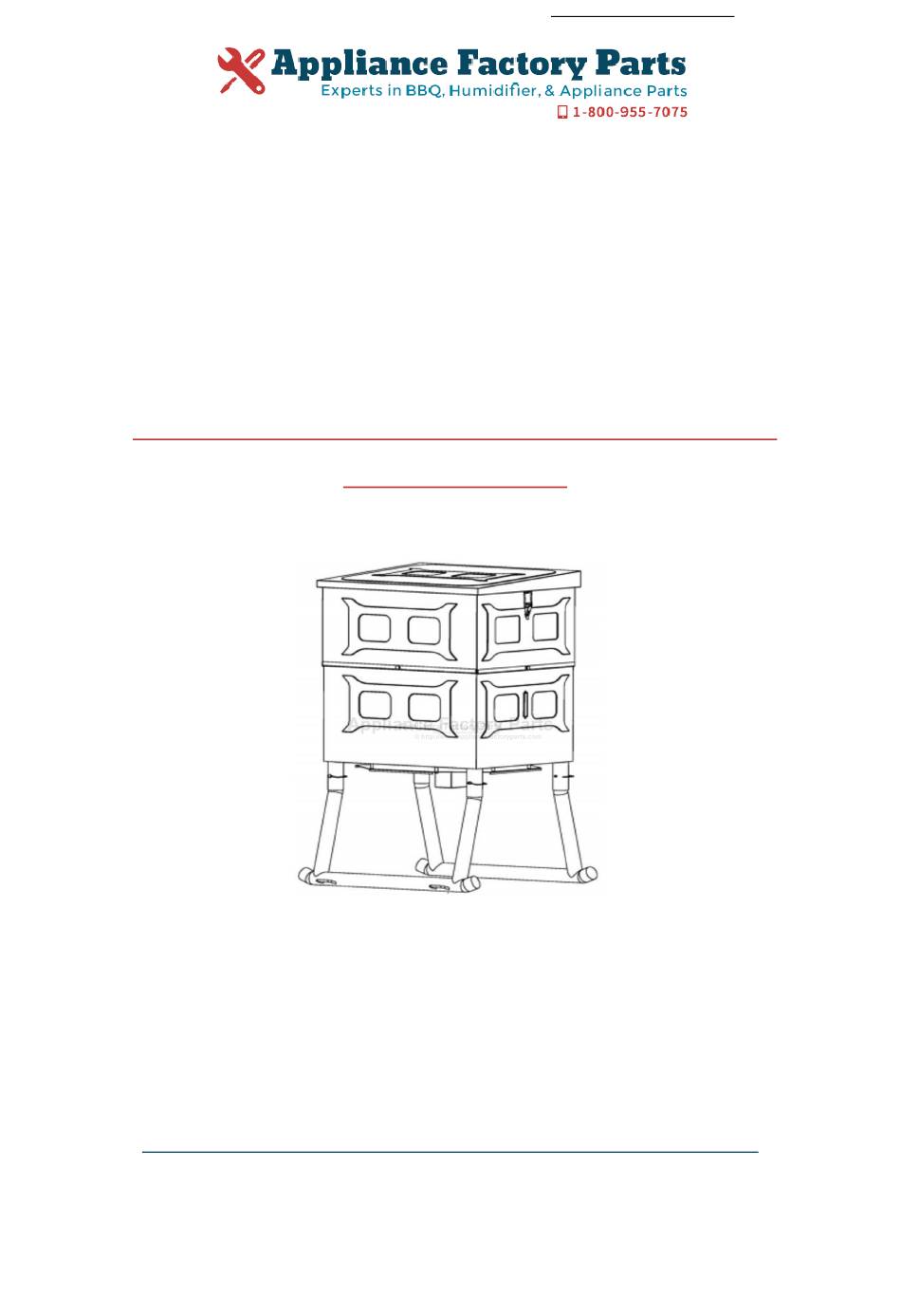

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Rankam HU2327901-GW Owner's Manual Shop genuine replacement parts for Rankam HU2327901-GW Find Your Rankam Grill Parts - Select From 123 Models -------- Manual continues below --------...
- Page 2 BRAND Assembly Instructions 720lb No-Hassle Feeder Model # 161765 (HU2327901-GW) Please keep this instruction manual for future reference Customer Service: 1-888-837-1380, 8:00am to 5:00pm, Pacific Standard Time, Monday thru Friday Email: customerservice@rankam.com -------- OR -------- Customer Service: 1-888-922-2336, 7:00am to 12:00am CST daily Live Chat at: www.academy.com...
-
Page 3: Table Of Contents
Table of Contents Page Warnings -------------------------------------------------------------------------- Parts List -------------------------------------------------------------------------- Hardware List -------------------------------------------------------------------- Product Diagram --------------------------------------------------------------- Assembly Instructions ------------------------------------------------------- 9-11 Operating Instructions ------------------------------------------------------- Connecting Battery ----------------------------------------------------------- Using Solar Panel ------------------------------------------------------------- How To Load Your Feeder--------------------------------------------------- Care and Maintenance ------------------------------------------------------- Replacement Parts------------------------------------------------------------- 14-15 Warranty -------------------------------------------------------------------------- 16-17... -
Page 4: Warnings
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. YOUR GAME WINNER 720LB NO HASSLE FEEDER IS DESIGNED, ENGINEERED AND CONSTRUCTED IN A MANNER THAT MAKES IT A RUGGED PIECE OF HUNTING EQUIPMENT THAT WILL GIVE YOU YEARS OF SERVICE. THIS RUGGED CONSTRUCTION MAKES YOUR FEEDER PHYSICALLY HEAVY. - Page 5 Warnings DO NOT USE THIS UNIT AROUND POWER GENERATING EQUIPMENT (TRANSFORMERS, GENERATORS, SUBSTATIONS, ETC) AND/OR TRANSMISSION EQUIPMENT (POWER LINES). FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR DEATH! DO NOT LOAD FEEDER WITHOUT ANOTHER ADULT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR DEATH! DO NOT LOAD FEEDER UNDER AND/OR DURING BAD WEATHER SUCH AS STORMS, SNOW, LIGHTNING, OR THUNDERSTORMS.
- Page 6 Warnings TO TEST YOUR FEEDER, FOLLOW THE INSTRUCTIONS IN THE TIMER MANUAL. DO NOT TEST FEEDER WHEN IT CONTAINS FEED. TEST FEEDER WHEN EMPTY ONLY! TESTING THE FEEDER WHILE IT CONTAINS FEED WILL CAUSE FEED TO BE DISCHARGED AT A HIGH VELOCITY AND COULD RESULT IN BODY INJURY.
- Page 7 Warnings ! IMPORTANT ! THE MANUFACTURER OF THE 720LB NO HASSLE FEEDER IS NOT RESPONSIBLE FOR ANY INACCURATE INFORMATION YOU HAVE RECEIVED REGARDING STATE FEEDING REGULATIONS. PLEASE ALWAYS KEEP YOUR INFORMATION UP-TO-DATE AND RELIABLE. MANY STATE LAWS CHANGE AND ARE AMENDED WITHOUT NOTICE. ALWAYS DOUBLE CHECK YOUR STATE AND SPECIFIC COUNTY FEEDING LAWS REGARDING THE USE OF FEEDERS.
-
Page 8: Parts List
Parts List 1 pc 1a - catcher - 2 pcs (pre-attached on lid) 1a catcher Top Hopper 1 pc 2a - latch - 2 pcs (pre-attached on hopper) 2a latch Connecting Bar 4 pcs 3a -long - 2 pcs 3b -short - 2 pcs Bottom Hopper 1 pc 2 pcs... -
Page 9: Product Diagram
Product Diagram HU2327901-GW Pg.8 20200220-V1.0... -
Page 10: Assembly Instructions
Assembly Instructions Step 1: Put Bottom Hopper (#4) upside down and insert legs (#5). Align holes on legs and attach Lock Pin (B) Hardware : #B - 4 pcs long side of hopper Using 2 adults, stand feeder upright on the pipe legs WARNING: Feeder is heavy! HU2327901-GW... - Page 11 Assembly Instructions Step 2: Attach Connecting Bars (#3), then secure Top Hopper and Connecting Bars to Bottom Hopper using bolts (A) Hardware : #A - 4 pcs HU2327901-GW Pg.10 20200220-V1.0...
- Page 12 Assembly Instructions Step 3: Secure Lid (#1) with latches to hopper latch Your feeder assembly is completed. Step 4: Secure feeder to ground with Stakes (not included) through loops on legs loop HU2327901-GW Pg.11 20200220-V1.0...
-
Page 13: Operating Instructions
Operating Instructions Connecting Battery Install a 12V rechargeable battery (not included) by attaching Red alligator clip to the POSITIVE (+) terminal and Black alligator clip to the NETGATIVE (-) terminal. HOW TO OPERATE THE TIMER READ THE OPERATION MANUAL INCLUDED IN THE PACKAGE. -
Page 14: How To Load Your Feeder
HOW TO LOAD YOUR FEEDER OPEN THE LID AND POUR FEED INTO THE HOPPER. AFTER FILLING, CLOSE THE LID. TIPS & POINTERS: (Q) What kind of feed should I use? (A) Whole kernel corn is recommended. Whole kernel corn mixed with soybeans or pellets is also effective for attracting deer. -
Page 15: Replacement Parts
Replacement Parts MET-CF0001 (Component 1) MET-CF0002 (Component 1a) MET-CF0011 MET-CF0004 (Component 2) (Component 2a) MET-CF0012 MET-CF0013 (Component 3a) (Component 3b) HAR-CF0002 (Component A) MET-CF0014 PLA-CF0001 (Component 4) (Component 4a) MET-CF0005 (Component 4b) ELE-CF0001 (Component 4c) HAR-CF0002 (Component A) MET-CF0006 (Component 4d) ELE-CF0004 (Component 6) ELE-CF0002... - Page 16 Replacement Parts Part Number Component Part Name MET-CF0001 MET-CF0002 Catcher MET-CF0011 Top Hopper MET-CF0004 Latch MET-CF0012 Long Connecting Bar MET-CF0013 Short Connecting Bar MET-CF0014 Bottom Hopper PLA-CF0001 Feed Window and Brackets MET-CF0005 Door ELE-CF0001 Wire Extender MET-CF0006 Spinner MET-CF0007 Varmint Plate MET-CF0008 Short Tubes ELE-CF0002...
-
Page 17: Warranty Information
Warranty Information Manufacturer warrants this product to be free from defects in workmanship and materials for a period of 90 days from the date of purchase, PROVIDED claims are submitted, in writing, with proof of purchase. If any part of this item fails because of a manufacturing defect within the Limited Warranty Period, manufacturer offers to replace such part(s) provided that such parts have not been improperly repaired, altered, or tampered with or subject to misuse, abuse, or exposed to corrosive conditions. - Page 18 Warranty Information IF CUSTOMER SERVICE IS NECESSARY: The original purchaser is responsible for shipping and handling charges of the returned item(s) and replacement parts, if any. All parts to be replaced will need to be shipped before replacement items will be sent. Follow the customer service representative’s instructions exactly.
