Diesel engine setting/locking kit

Advertisement

Quick Links

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly maintained, give you years of trouble free performance.
IMPORTANT: PleAse ReAd tHese instRUctions cAReFUllY. note tHe sAFe oPeRAtionAl ReQUiReMents, WARnings And cAUtions. Use tHe PRodUct
coRRectlY And WitH cARe FoR tHe PURPose FoR WHicH it is intended. FAilURe to do so MAY cAUse dAMAge And/oR PeRsonAl inJURY And Will
invAlidAte tHe WARRAntY. PleAse keeP instRUctions sAFe FoR FUtURe Use.
1. sAFetY instRUctions
 WARning! Ensure Health and Safety, local authority and general
workshop practice regulations are adhered to when using tools.
 do not use tools if damaged.
 Maintain tools in good and clean condition for best and safest
performance.
 Ensure that a vehicle which has been jacked up is adequately
supported with axle stands.
 Wear approved eye protection. A full range of personal safety
equipment is available from your Sealey dealer.
 Wear suitable clothing to avoid snagging. Do not wear jewellery and
tie back long hair.
 Account for all tools, locking bolts, pins and parts being used and do
not leave them in or near the engine.
 WARning! Incorrect or out of phase camshaft timing can result in
contact between valve head and piston crown causing damage to the
engine.
IMPORTANT: These instructions are provided as a guide only. Always
refer to the vehicle manufacturer's service instructions, or a proprietary
manual, to establish the current procedure and data.
WARNING: The warnings, cautions and instructions discussed in
this manual cannot cover all possible conditions and situations
that may occur. It must be understood that common sense and
caution are factors which cannot be built into this product, but
must be applied by the operator.
Instructions for:
diesel engine setting/locking kit
tdv6
vs4965
Model No:
2. intRodUction / APPlicAtions
Covers all variants of the TDV6 Quad-Cam common rail diesel engine
found in Land Rover, Jaguar and PSA (Citroen/Peugeot) vehicles.
These engines drive the exhaust camshaft from the crankshaft which in
turn are linked by chains to the inlet camshaft. The 'only' kit currently to
handle all versions including automatic transmission variants. Includes
warning tag.
lAnd RoveR, JAgUAR & PsA (citroen/Peugeot) 2.7 v6 (tdv6)
Quad cam diesel engines in:
lAnd RoveR
Range Rover Sport
JAgUAR
S -Type
PsA – citroen/Peugeot
citRoen
C6
PeUgeot
407 / Coupe
engine codes:
276dt / dt17ted4 (UHZ) (tdv6) engines.

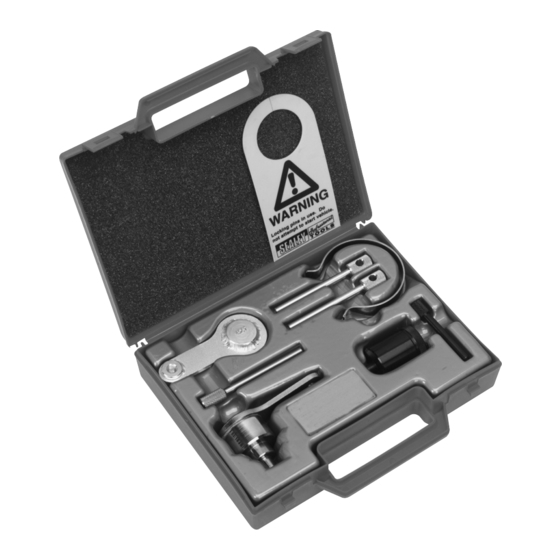

3. contents
1
VS4965L1
Camshaft Locking Pins (Pair)
2
VS4965L2
Camshaft Timing Checking Pin
3
VS4965C9
Coolant Pump Locking Pin (PSA)
4
VS4966
Flywheel Locking Tool (Auto Transmission)
5
VS4967
Flywheel Locking Tool (Manual Transmission
6
VS4968
Flywheel Locking Tool (PSA)
7
VS1210/04
Timing Belt Retaining Clip
-
VS4965/84
Case + Insert
Page 1 of 3
Discovery 3
XJ Series
607
VS4965
Issue No:1 - 22/07/08
