Summary of Contents for Air Science EDU-M-60

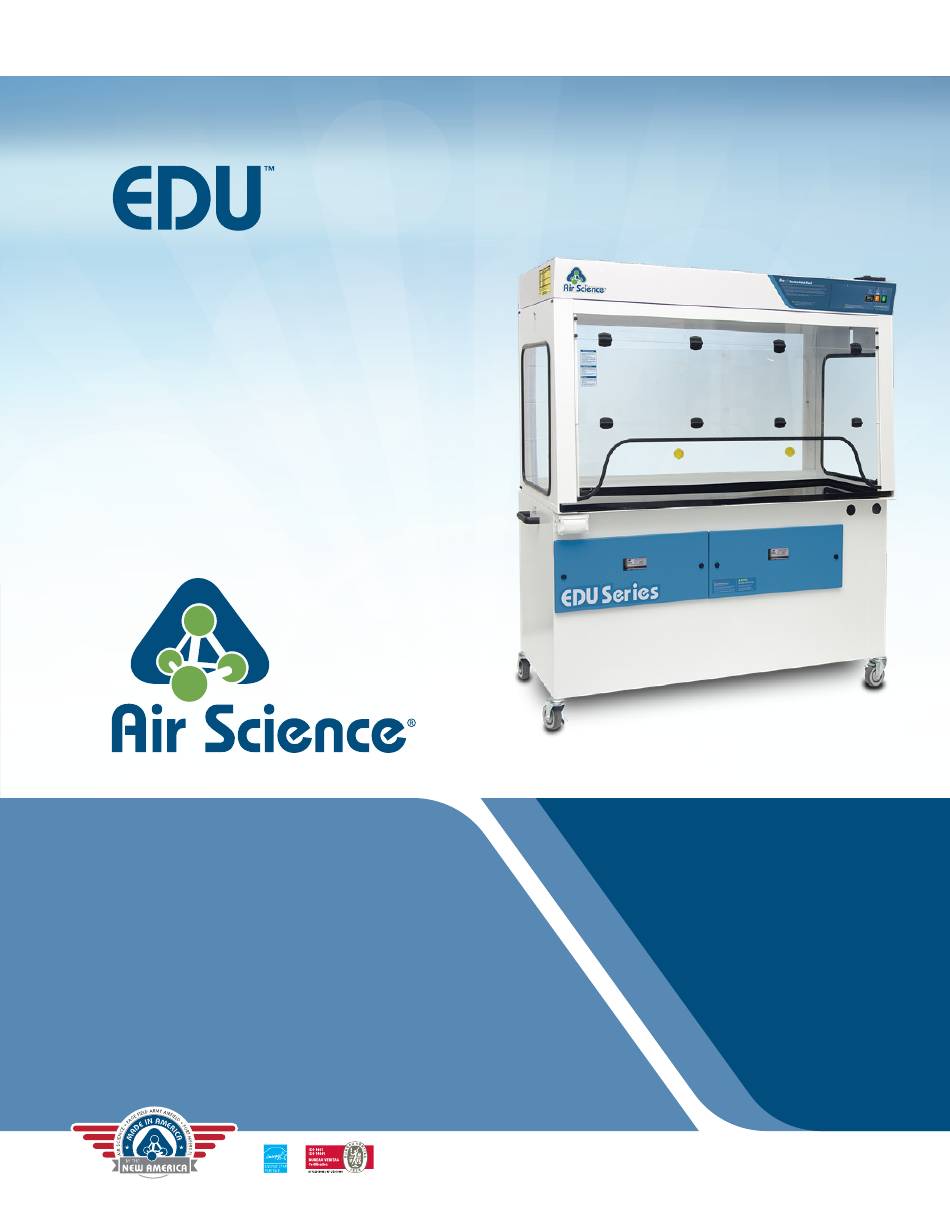

- Page 1 -MOBILE Air Science EDU-MOBILE Ductless Demonstration Fume Hoods USER OPERATION MANUAL pictured: Model EDU-M-60 Air Science Manual Revision No.: EDU-MOBILE.V3.2021 Specifications are subject to change without notice or obligation on the part of Air Science. For questions, contact Air Science.
-
Page 2: Table Of Contents
VIII. Product Specifications ............28 Air Science... -
Page 3: Safety Warnings / Symbols
The disposal and/or emission of substances used in connection with this cabinet may be governed by var- ious local regulations. Familiarization and compliance with any such regulations are the sole responsibility of the users of the cabinet. The liability of Air Science is limited with respect to user compliance with such ®... -
Page 4: Warranty
Register your new Air Science product online by visiting: www.airscience.com/warranty-registration. Customer Satisfaction Survey Air Science values your business, so your satisfaction is important to us. To help serve you better, please take a few minutes to complete our Customer Satisfaction Survey. -
Page 5: Product Information
Mounted on a wheeled cart, these demonstration fume hoods maintain a low center of gravity to facilitate movement between locations. At the heart of the EDU-MOBILE fume hood product line is the innovative Air Science Multiplex Filtration ™... -
Page 6: Packaging Contents
Test Report In case this manual and/or test report is lost or misplaced, Air Science retains a copy in our files. A replace- ment copy can be obtained by contacting Air Science and providing the cabinet model, serial number and a brief description of the information desired. -
Page 7: Installing Your Cabinet
» Always ensure unit is connected to a reliable and properly grounded receptacle. » Appliance inlet on this device is the disconnect device; appliance should not be positioned so that it is difficult to operate it. Air Science 120 6th Street Fort Myers, FL 33907... -
Page 8: Power Cord
• Observe the necessary precautions when relocating the cabinet, as it is heavy. • Warning - Tipping Hazard. Pushing high up on the unit may cause system to tip over. Be careful when moving. Move with assistance only. Air Science 120 6th Street Fort Myers, FL 33907... -
Page 9: Set Up
» Replace the front blue cover to the filter compart- ment and turn locking key until dots align, indicat- ing lock is engaged. NOTE: KEEP KEY IN A SAFE PLACE. Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024... - Page 10 ± 5% of full scale from 0-100 fpm and ± 10% from 100 fpm to 400 fpm. The permanent mounting bracket provided in the box is not used. Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024...
- Page 11 22), use a small Phillips screwdriver to adjust the screw inside the calibration port. NOTE: Adjustment screw is made of nylon, so please use care not to damage the screw. Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024...
-
Page 12: Performance Validation / Certification
3.7 Disclaimer The performance of the cabinet, while rigorously evaluated at the factory, cannot be guaranteed after transit and installation. Therefore on-site testing is always recommended. Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024 Toll Free 800-306-0656 F 800-306-0677 www.airscience.com... -
Page 13: Operating Your Cabinet
Check airflow and/or replace filters as needed. Alarm may be reset and tested. Air Science 120 6th Street Fort Myers, FL 33907... - Page 14 PIN 1 RED PL1 POWER PIN 2 BLUE PL3 VOLTFREE CONTACT PIN 3 YELLOW PL3 PINS 1 & 2 N/O CLOSED ON ALARM Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024 Toll Free 800-306-0656 F 800-306-0677 www.airscience.com...
- Page 15 The optional Autocal controller displays the airflow. Audio and visual alarms alert users if the airflow reaches preset thresholds. An Hour Counter with preset alarm intervals for pre-filter and main filter change out is also included. Air Science 120 6th Street Fort Myers, FL 33907...
- Page 16 » An elapsed time display and alarm is incorporated in the MENU section; the user select alarm point is in hours. » The menu access is code protected. To access, press and hold the MENU OPTIONS button for 4 seconds or a coded button sequence. Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024...
- Page 17 ALARM SET XXX.X HOURS 500 HOURS ELAPSED TIME XXX.X HOURS 1000 HOURS FILTER ID XXXXXX 15000 HOURS PRESS MENU TO STORE & EXIT Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024 Toll Free 800-306-0656 F 800-306-0677 www.airscience.com ®...
- Page 18 » The airflow unit can be changed from m/sec to FPM via the airflow units in the menu section. » When in normal running mode, the airflow can be altered; one press of qp will decrease or increase the set point by 0.05 m/sec. Air Science 120 6th Street Fort Myers, FL 33907...
-
Page 19: Cabinet Operating Procedure
The system should not be used in a flammable room atmosphere. Special modified cabinets can be provided for use in these areas. Contact Air Science for further information on these applications. • Operators should avoid sudden movements within the fume cabinet, such as rapid opening or closing of the sash window, as this may cause temporary reversal of the airflow. -
Page 20: Monitoring
27). The results are to be recorded on a service sheet or system log sheet. If a significant amount of chemical is noted at the exhaust of the system, the main filters should be changed. Air Science 120 6th Street... -
Page 21: Maintenance
Check condition and replace if required. 6.4 Lights Ensure that the light diffuser is clean before switching the system on. Check that the light is in working condition. Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024 Toll Free 800-306-0656 F 800-306-0677 www.airscience.com... -
Page 22: Airflow
The pressure switch is calibrated and tested prior to leaving our factory and under normal circumstances will not require any adjustment. » With the cabinet running and the pre-filter blocked as described above, locate the grey pressure switch Air Science 120 6th Street Fort Myers, FL 33907... -
Page 23: Changing Out Filters
Calibration - page This procedure can be found in 6.9 Airflow Adjustment The speed controller on the cabinet can be accessed behind the main control panel. Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024 Toll Free 800-306-0656 F 800-306-0677 www.airscience.com... -
Page 24: Maintenance Schedule
24 \ USER OPERATION MANUAL: EDU-MOBILE 6.10 Maintenance Schedule Please follow the suggested maintenance schedule in order to maintain your Air Science cabinet at its optimum performance. Monthly Annually 1. Using a damp cloth, clean the exterior surfaces 1. Replace all main carbon filters. -
Page 25: Fault Finding
• Replace fan 6.13 Component Changing SHOULD ONLY BE CARRIED OUT BY TRAINED PERSONNEL WARNING! Ensure main power supply has been removed prior to any work being carried out. Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024... -
Page 26: Replacement Parts List
26 \ USER OPERATION MANUAL: EDU-MOBILE 6.14 Replacement Parts List Replacement Parts List 120 Volt Units with EC Fan EDU-M-40, EDU-M-48, EDU-M-60 - 120V 60HZ Part Description Part Number Power Switch WRG32F2FBGLN Indicator Light C0480AABA2 Pressure Switch 6753-AEJA-U000 Hour Counter (GI) -
Page 27: Filter Information
Filter Types Air Science offers over 12 types of activated carbon and particulate filter media. These formulas can be cus- tomized or layered into nearly limitless combinations to best suit your specific application. HEPA filters are available for applications involving particulates and can be combined together with any of our activated carbon filters. -
Page 28: Product Specifications
T. 239-489-0024 \ Toll Free. 800-306-0656 \ F. 800-306-0677 right to make periodic minor design changes without obligation to notify any www.airscience.com person or entity of such change. ©2021 Air Science OW 12510 07/21 Air Science, Purair, Multiplex and EFT are all registered trademarks of Air Science Corporation...
