Air Science SafeSTORE
& Drugkeeper
Storage Cabinets
USER OPERATION MANUAL
Air Science Manual Revision No.:
SAFESTORE-SERIES.V4.2024
C E R T I F I E D
I S O 9 00 1: 2 01 5
I S O 1 40 01 : 20 15

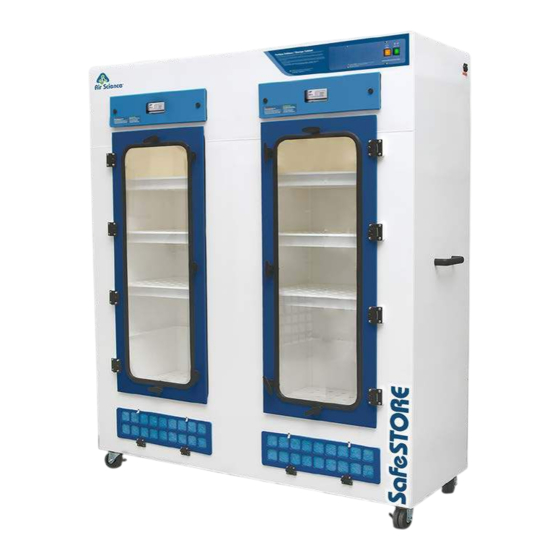

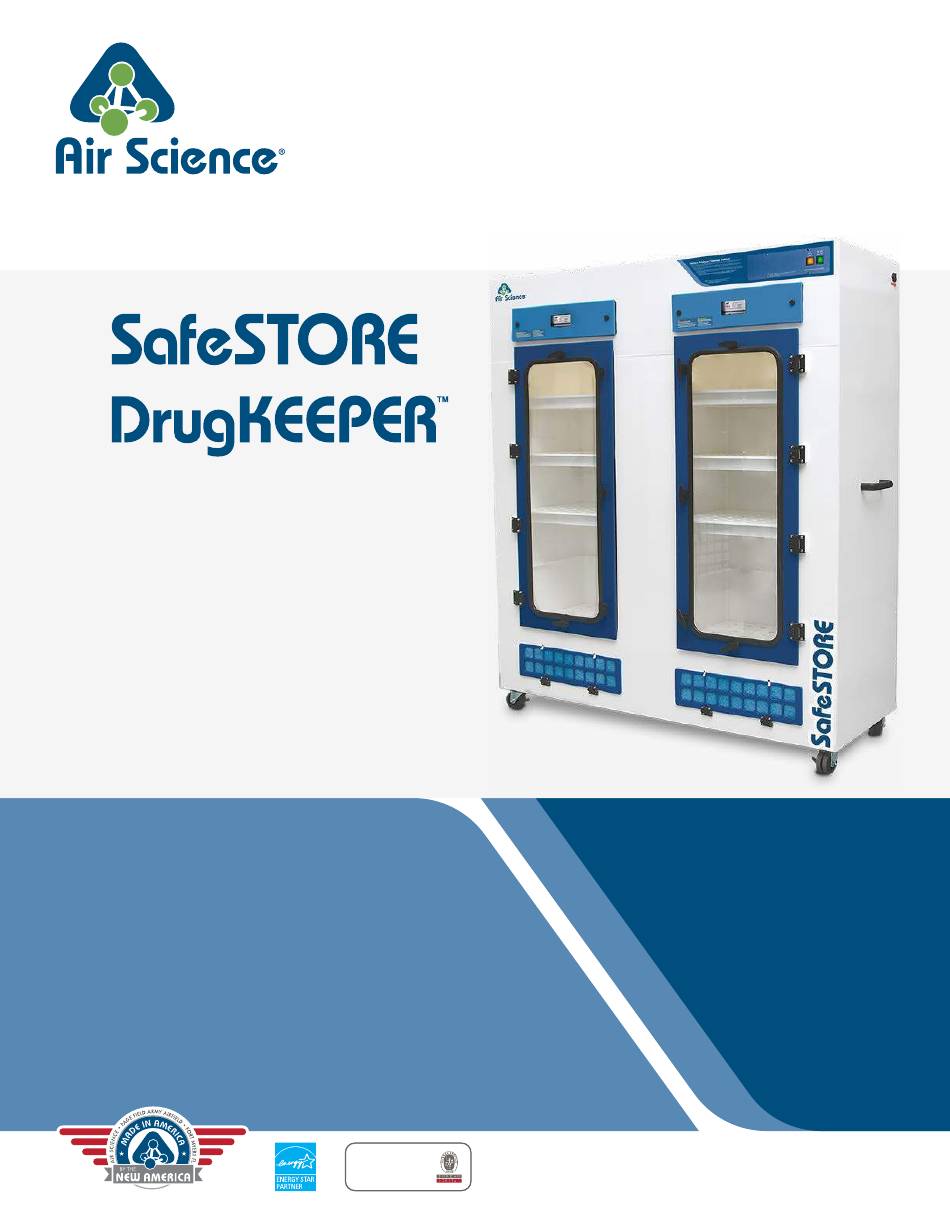

pictured: SafeSTORE Model 64T
Specifications are subject to change without notice or obligation
on the part of Air Science. For questions contact Air Science.
Advertisement
Table of Contents
Related Manuals for Air Science SafeSTORE
Summary of Contents for Air Science SafeSTORE
- Page 1 Specifications are subject to change without notice or obligation C E R T I F I E D on the part of Air Science. For questions contact Air Science. I S O 9 00 1: 2 01 5 I S O 1 40 01 : 20 15...
-
Page 2: Table Of Contents
2 \ USER OPERATION MANUAL: : SafeSTORE / Drugkeeper Table of Contents Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Limitation of Liability . -
Page 3: Safety Warnings
3 \ USER OPERATION MANUAL: SafeSTORE / Drugkeeper Safety Warnings • This cabinet does not offer product and/or sample protection. • Read all instructions before proceeding and observe the installation procedure and environmental/electrical requirements. • Anyone working with, on or around this equipment should read this manual. Failure to read, understand and follow the instructions given in this documentation may result in damage to the unit, injury to operating personnel and/or poor equipment performance. -
Page 4: Warranty
Register your new Air Science product online by visiting: www.airscience.com/warranty-registration. Customer Satisfaction Survey Air Science values your business, so your satisfaction is important to us. To help serve you better, please take a few minutes to complete our Customer Satisfaction Survey. -
Page 5: Product Information
5 \ USER OPERATION MANUAL: SafeSTORE / Drugkeeper I. Product Information SafeSTORE ™ and Drugkeeper ™ storage cabinets are useful for storage of noxious and odorous hazardous chemicals, designed to minimize health and environmental risks from chemical vapors and residues, VOCs and other hazardous materials. -
Page 6: Packaging Contents
» The work surface should be smooth, non-porous and resistant to the disinfectants and chemicals used in conjunction with the cabinet. 2.2 Packaging Contents A copy of your factory test report and certificate of conformance can be obtained by contacting Air Science and providing the product model and serial numbers. Air Science ®... -
Page 7: Installing Your Cabinet
7 \ USER OPERATION MANUAL: SafeSTORE / Drugkeeper III. Installing Your Cabinet 3.1 Choosing a Suitable Location Location impacts the nature and extent of external airflow disturbances, which may affect performance of the cabinet when it is exposed to these disturbances. -
Page 8: Power Cord
8 \ USER OPERATION MANUAL: SafeSTORE / Drugkeeper Power Cord: » 1) For units intended to be operated at 120 volts (North America): Use a UL-listed and CSA-certified cord set consisting of a minimum 18 AWG, Type SVT or SJT, three-conductor cord, a maximum of 15 feet in length and a parallel blade, grounding-type attachment plug rated 15 amperes, 125 volts. -
Page 9: Installing Filters And Shelves
9 \ USER OPERATION MANUAL: SafeSTORE / Drugkeeper 3.4 Installing Filters and Shelves 1. Main Filter Installation a. Using the key supplied, unlock the locks of the blue cover door to access the filter compartment. b. Unscrew the black knobs on the underside of the... -
Page 10: Pre-Filter Installation
10 \ USER OPERATION MANUAL: SafeSTORE / Drugkeeper h. Note filter details on the Filter Maintenance sticker for easy reference and place sticker in a conven- ient location on outside of unit. You may also write the install date on the filter itself. (Actual filter not shown.) -
Page 11: Performance Validation / Certification
11 \ USER OPERATION MANUAL: SafeSTORE / Drugkeeper 3.5 Performance Validation / Certification After installation and prior to use, cabinet performance must be validated and certified to factory standards. The following tests should be performed: Airflow Velocity The testing methods and equipment required are specified on the test report. It is recommended that these tests be performed only by a qualified technician who is familiar with the methods and procedures for certify- ing these types of cabinets. -
Page 12: Operating Your Cabinet
12 \ USER OPERATION MANUAL: SafeSTORE / Drugkeeper IV. Operating Your Cabinet 4.1 Flow Control System Basic Control Panel (Standard) The basic control panel is standard and includes an On/Off switch and Filter Blockage alarm. If the indicator lamp starts to flash intermittently or stays illuminated, the filters are beginning to become blocked and airflow may be reduced to unsafe levels. - Page 13 13 \ USER OPERATION MANUAL: SafeSTORE / Drugkeeper FSA / Autocal Control Panel (Optional) The optional FSA/Autocal controller displays the airflow and offers limited detection of low concentrations of hydrocarbon, some gases and organic acids. Audio and visual alarms alert users to filter saturation and if the airflow reaches preset thresholds.
- Page 14 14 \ USER OPERATION MANUAL: SafeSTORE / Drugkeeper FSA Control Panel (Optional) The optional FSA controller offers limited detection of low concentrations of hydrocarbon, some gases and organic acids. Audio and visual alarms alert users if filter saturation reaches preset thresholds. An Hour Counter with preset alarm intervals for pre-filter and main filter change out and Low Airflow alarm are also included.
-
Page 15: Cabinet Operating Procedure
15 \ USER OPERATION MANUAL: SafeSTORE / Drugkeeper 4.2 Cabinet Operating Procedure • To start the unit, switch the power switch on. The fan will automatically operate at full speed, ready for normal operation of the cabinet. • The doors should remain in the closed position whenever practical and only opened for loading and unloading of chemicals. -
Page 16: Maintaining Your Cabinet
16 \ USER OPERATION MANUAL: SafeSTORE / Drugkeeper V. Maintaining Your Cabinet 5.1 General The purpose of the monitoring program is to ensure consistent reliability from the system. This is achieved by checking the following: » If the pre-filters become blocked, the velocity of the cabinet will begin to fall and will eventually cause the filter blockage alarm to illuminate. -
Page 17: Filter Condition Monitor (Fitted As An Option)
17 \ USER OPERATION MANUAL: SafeSTORE / Drugkeeper 5.3 Filter Condition Monitor (Fitted as an Option) Under normal operating conditions (if option fitted) the display will show a green filter to indicate it is safe. If the filter display is red, the filter should be checked as follows: »... -
Page 18: Maintenance Schedule
18 \ USER OPERATION MANUAL: SafeSTORE / Drugkeeper 5.5 Maintenance Schedule Please follow the suggested maintenance schedule in order to maintain your Air Science cabinet at its optimum performance. Monthly Semiannually 1. Replace HEPA/ULPA filters. 1. Using a damp cloth, clean the exterior surfaces of the cabinet, particularly the front and top of 2. -
Page 19: Fault Finding
19 \ USER OPERATION MANUAL: SafeSTORE / Drugkeeper 5.7 Fault Finding WARNING! Before attempting any inspection or replacement of electrical components, always isolate the cabinet from the main power supply and remove the power supply cable. Fault Check • Check airflow at aperture Filter Blockage Alarm •... -
Page 20: Replacement Parts List
20 \ USER OPERATION MANUAL: SafeSTORE / Drugkeeper 5.8 Replacement Parts List Replacement Parts List Part Description Part Number Main Power Fuse, 5A 0218005.HXP Main On/Off Switch WRG32F2FBGLN Power Inlet 719W-00/04 Power Cord (specify plug type) PCORD230 Pressure Switch for Low Airflow Indication... -
Page 21: Filter Information
Filter Types Air Science offers over 12 types of activated carbon and particulate filter media. These formulas can be customized or layered into nearly limitless combinations to best suit your specific application. HEPA filters are available for applications involving particulates and can be combined together with any of our activated carbon filters. -
Page 22: Product Specifications
©2024 Air Science OW 12477.2 01/24 C E R T I F I E D Air Science, Purair, Multiplex and EFT are all registered trademarks of Air Science Corporation I S O 9 00 1 : 2 0 1 5...
