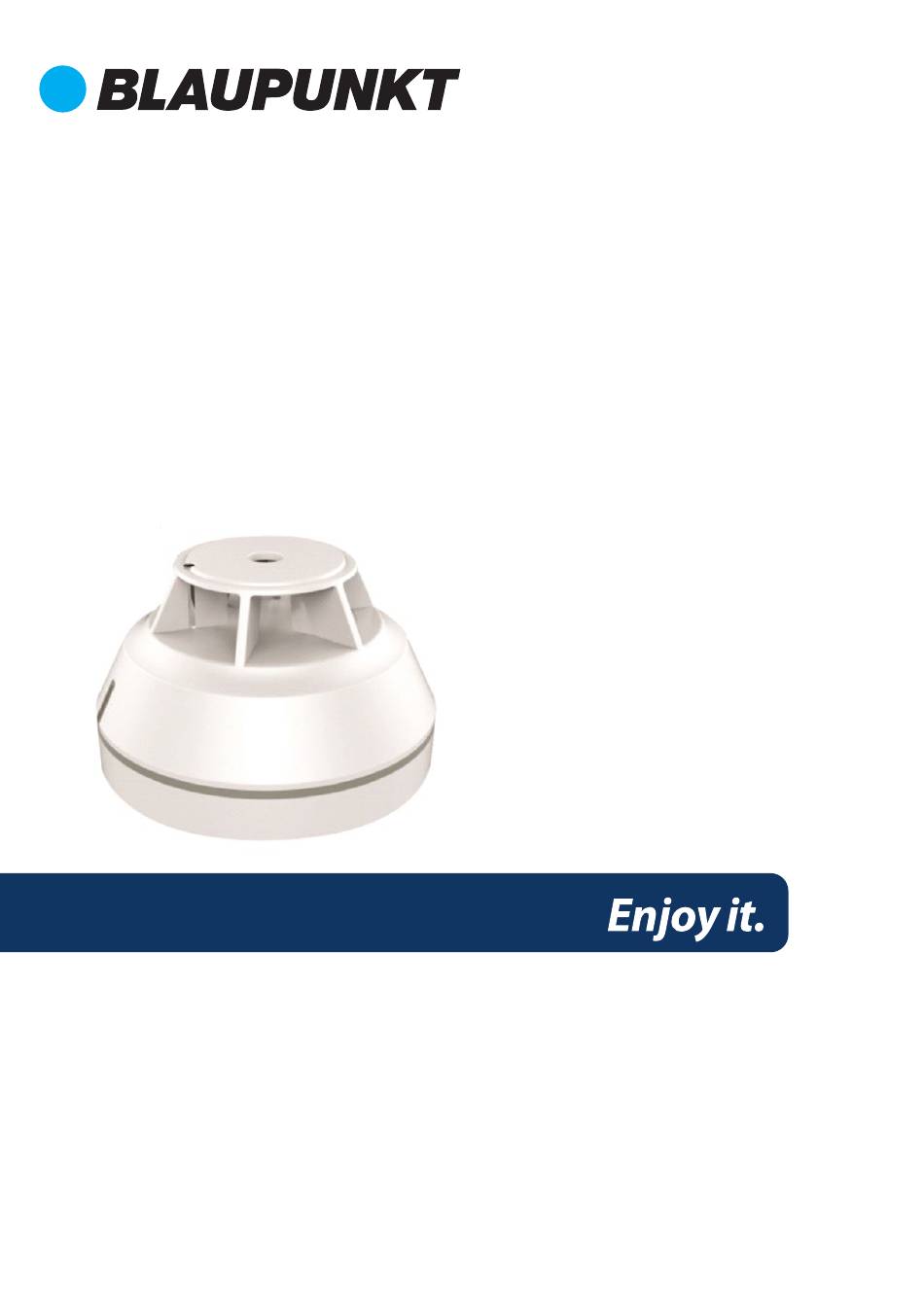

- Page 1 User Manual ADDRESSABLE HEAT DETECTOR BP-FD-AHD302...
-
Page 2: Product Overview
Instruction Manual of BP-FD-AHD302 Addressable Heat Detector ------ Please read this Manual carefully before installing and using the product. ----- I. Product overview BP-FD-AHD302 Addressable Heat Detector (Detector hereunder) is a mated product of the BP-FD-AHD302 fire alarm control panel.It uses a two-bus work mode. - Page 3 Fig.1(unit:mm) V. Use and engineering application Fig.2 is the schematic diagram of the matched mounting base. Definitions of terminals(non-polarity two-wire system): 1 --Signal terminal (L1) 2 – Negative of remote indicator 3 --Signal terminal (L2) 4 – Positive of remote indicator Fig.2 Wiring method: The detector is accessed through a compatible fire alarm control panel via a two-wire bus.
-
Page 4: Installation And Debugging
function, select the correct address number and press the RUN key to complete the address code setup. (Note: See the User’s Manual of the coder for the detailed operation.) Fig.5 VI. Installation and debugging Determine the location, mounting distance and numbers for mounting the detectors in the protection area according to relevant provisions and regulations of the local codes. -
Page 5: Maintenance
when automatic login is success, the red indicator of the detector will blink once about every 12 seconds, which suggests that the detector has begun to operate normally. Finally conduct an alarm test for the detector through some special tools or direct hot air gun blowing. - Page 6 Tell: +381 11 318 68 68 o ce@securityshop.rs Imported/Distributed by Security Shop doo BLAUPUNKT and the BLAUPUNKT logo are trademarks of TALISMAN BRANDS (Luxembourg) S.A.R.L. and are used under license from Talisman Brands, Inc. BLAUPUNKT licensees are solely responsible for the BLAUPUNKT branded products manufactured, distributed and sold under license.
