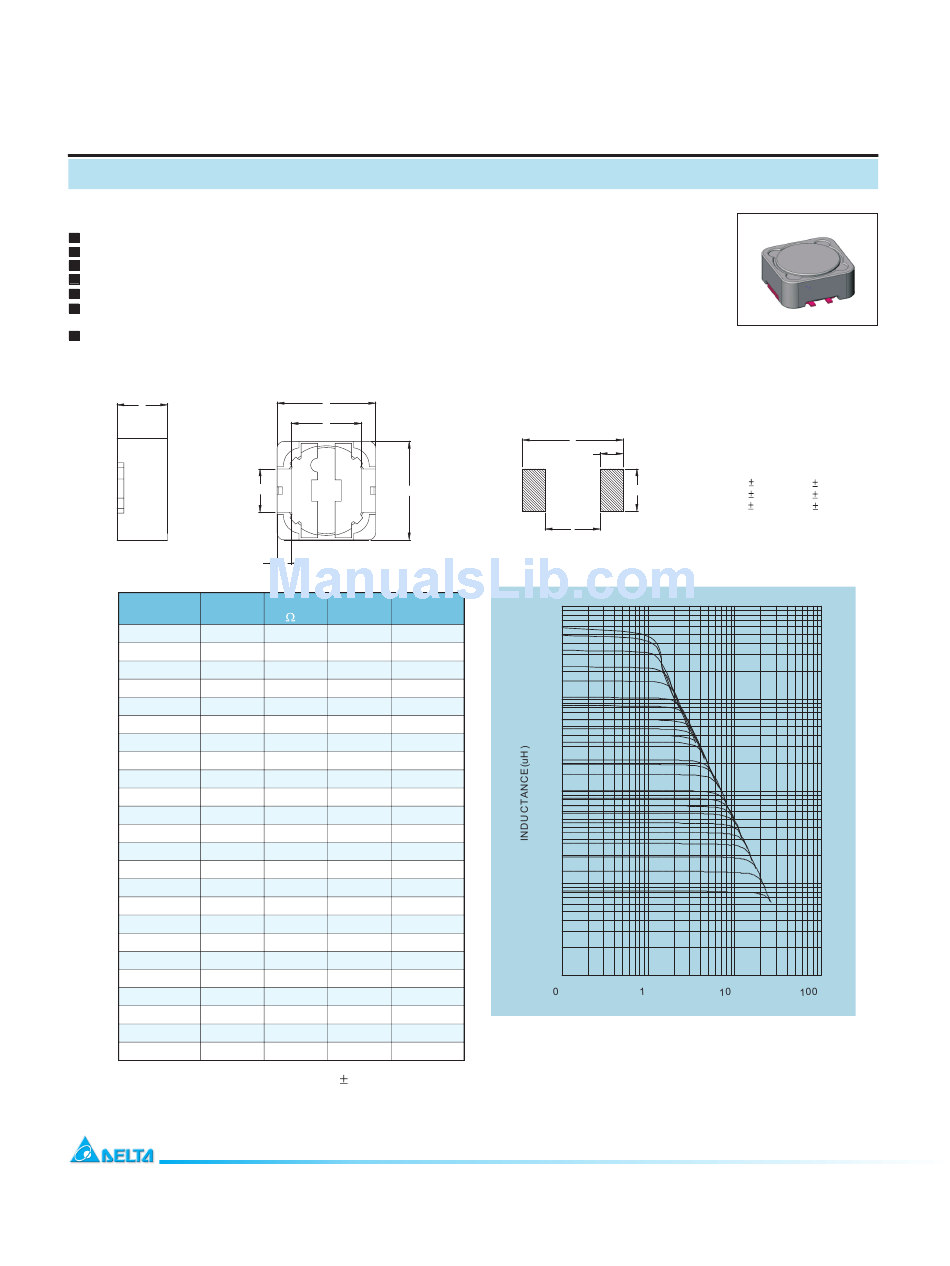

Delta Electronics SIQ126R Specification Sheet

SMT Power Inductor
SIQ126R Type
Features
RoHS compliant.
Low profile (7.0mm max. height ), high current(22A, 0.8uH) SMD type.
Magnetically shielded, suitable for high density mounting.
High energy storage and low DCR.
Provided with embossed carrier tape packing.
Ideal for power source circuits, DC-DC converter, DC-AC inverters
inductor applications.
In addition to the standard versions shown here,
customized inductors are available to meet your exact requirements.

Mechanical Dimension:

B

Electrical Characteristics:

1
L
PART NO.
(uH)
SIQ126R - 0R8 0.8
SIQ126R - 1R3 1.3
SIQ126R - 2R0 2.0
SIQ126R - 2R7 2.7
SIQ126R - 3R5 3.5
SIQ126R - 4R5 4.5
SIQ126R - 5R7 5.7
SIQ126R - 6R8 6.8
SIQ126R - 8R2 8.2
SIQ126R - 100 10.0
SIQ126R - 150 15.0
SIQ126R - 180 18.0
SIQ126R - 220 22.0
SIQ126R - 330 33.0
SIQ126R - 390 39.0
SIQ126R - 470 47.0
SIQ126R - 560 56.0
SIQ126R - 820 82.0
SIQ126R - 101 100.0
SIQ126R - 151 150.0
SIQ126R - 221 220.0
SIQ126R - 331 330.0
SIQ126R - 471 470.0
SIQ126R - 561 560.0
1. Tolerance of inductance : 0.8~560uH 20 %.
2. Irated is the DC current which cause the inductance drop less than 30% of its nominal inductance without current
and the surface temperature of the part increase less than 45 C.
3. Operating temperature: -20 C to 105 C (including self-temperature rise).
DELTA ELECTRONICS, INC.
(TAOYUAN PLANT CPBG)
C
D
E
A
F
o
25 C, 100KHz, 0.1V
2
DCR Isat Irms
(Adc)
(m ) Max. (Adc) Max.
5.0 22.00 22.00
6.0 18.00 18.00
7.0 15.00 15.00
8.0 13.00 13.00
9.0 11.00 11.00
11.0 10.00 10.00
13.0 9.00 9.00
16.0 8.00 8.00
17.0 7.50 7.50
21.0 6.50 6.50
30.0 5.60 5.60
36.0 5.00 5.00
41.0 4.50 4.50
54.0 3.60 3.60
66.0 3.30 3.30
80.0 3.20 3.20
100.0 2.80 2.80
140.0 2.40 2.40
180.0 2.00 2.00
250.0 1.60 1.60
340.0 1.40 1.40
500.0 1.15 1.15
750.0 0.95 0.95
880.0 0.88 0.88
o o
252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.
TEL: 886-3-3591968; FAX: 886-3-3591991
http://www.deltaww.com
RECOMMENDED PAD PA TTERNS
J
H
I
3
1000
561
471
331
221
151
101
100
820
560
470
390
330
220
180
150
100
10
8R2
6R8
5R7
4R5
3R5
2R7
2R0
1R3
1
0R8
0
o
34
UNIT : mm/inch
A = 12.5 / 0.492 MAX.
B = 7.0 / 0.276 MAX.
C = 12.5 / 0.492 MAX.
D = 7.6 0.3 / 0.299 0.012
G
E = 5.0 0.2 / 0.197 0.008
F = 2.2 0.2 / 0.087 0.008
G = 5.4 / 0.213
H = 2.9 / 0.114
I = 7.0 / 0.276
J = 12.8 / 0.504
DC BAIS(A)
