Claridge calyx ACENO Quick Start Manual

Track wall system
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
WARNING
RISK OF INJURY to installers and Users
Read the entire assembly direction before
beginning installation.
Do not use Wall Rail to support objects outside
the ACENO Track Wall System.
Wall Rail is only intended for use with ACENO
Collection
Building construction varies greatly. The
Building's Engineer of Record is responsible for
the design of building walls which the rails are
attached to and must verify the adequacy of the
mounting hardware.
800.434.4610 | Calyxbyclaridge.com

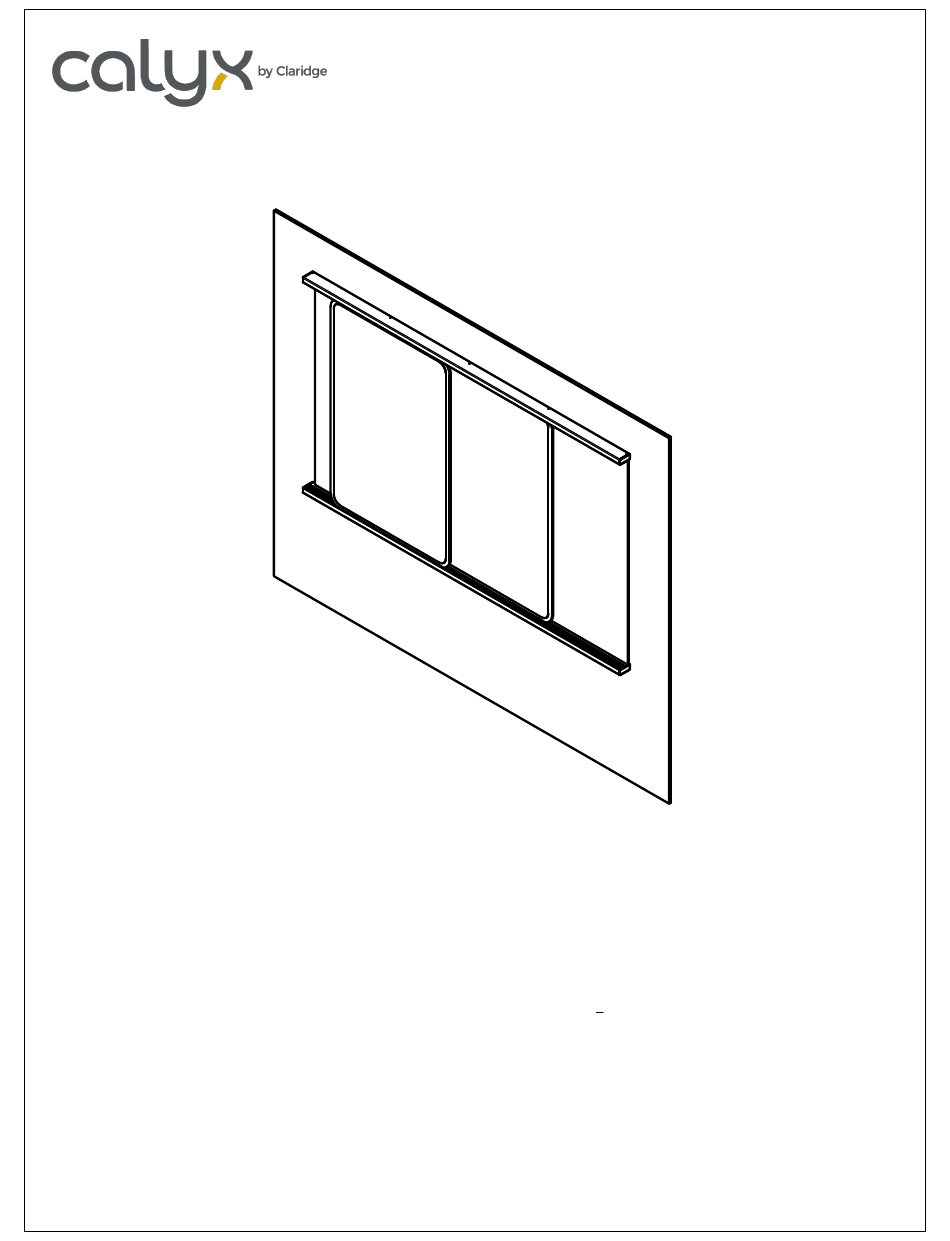

ACENO
Track Wall System
PACKAGE CONTENTS
1. Wall rail support (x2)
2. Lower rail (x1)
3. Upper rail (x1)
4. Endcaps (x4)
1
5. #8 x
screws (x10) Required for 8'
2
length
TM
Page 1 of 6

Advertisement

loading
Need help?

Need help?

Do you have a question about the calyx ACENO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Claridge calyx ACENO

Summary of Contents for Claridge calyx ACENO

  • Page 1 ACENO Track Wall System PACKAGE CONTENTS WARNING RISK OF INJURY to installers and Users 1. Wall rail support (x2) Read the entire assembly direction before 2. Lower rail (x1) beginning installation. 3. Upper rail (x1) Do not use Wall Rail to support objects outside 4.

  • Page 2: Tools Required

    ACENO Track Wall System Wall Construction and Hardware Selection NOTE: Mounting hardware is not provided. Choose hardware adequate for your specific wall construction (see warning on pg. 1) TOOLS REQUIRED: Level or Laser Level Hand Drill Appropriate Drill Bit for Wall Anchors & Hardware Phillips Driver 16"...
  • Page 3 ACENO Track Wall System Rail Spacing Overview 55 1 4 DIM X 84 5 8 SECTION B-B SCALE 1:30 1. Draw a level line 1 3/8" down from the desired finished height of the top rail. 2. Mark the centers of the stud locations. 3.
  • Page 4 ACENO Track Wall System Upper Rail Assembly Push and rotate down to snap onto wall rail Position Upper rail as shown. Snap! Lower Rail Assembly Push and rotate down to snap onto wall rail Postion Lower rail as shown Snap! 800.434.4610 | Calyxbyclaridge.com Page 4 of 6...
  • Page 5 ACENO Track Wall System Insert Endcaps into end of rails. DETAIL D SCALE 1:2 Secure Upper & Lower rail to wall support rails. Drill 9/64" hole thru the top & bottom rail, into the support rails. Secure rails with #8 - screws provided.
  • Page 6 ACENO Track Wall System Aceno panels can now be placed within the front or back groove. To insert, first go up into the upper rail then swing the bottom of the board towards the wall and place in appropriate lower groove. 800.434.4610 | Calyxbyclaridge.com Page 6 of 6...
