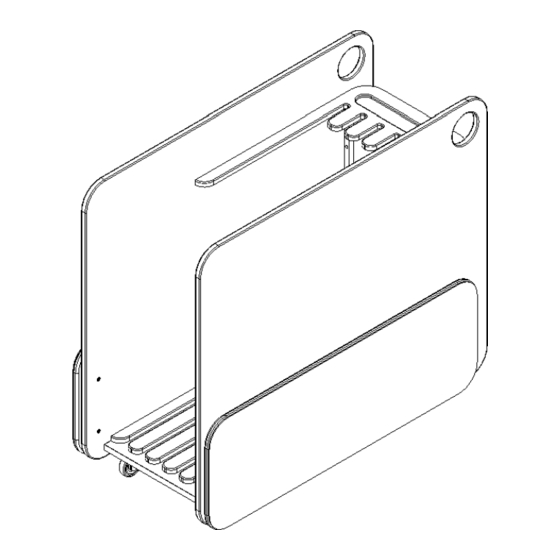

Aceno Cart
ASSEMBLY INSTRUCTIONS
WARNING
Risk of injury to installers and users
Read the entire assembly directions before
beginning assembly.
Hardware & Tools Required
Tools:
5/32" Allen Key (Not included)
Hardware:
¼"-20 x 5/8" Button Head Hex Screw – 16
¼" lock washer – 16
Swivel Caster – 2
Ridged Caster – 2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Claridge calyx Aceno Cart
Summary of Contents for Claridge calyx Aceno Cart
- Page 1 Aceno Cart ASSEMBLY INSTRUCTIONS Hardware & Tools Required Tools: 5/32” Allen Key (Not included) Hardware: ¼”-20 x 5/8” Button Head Hex Screw – 16 ¼” lock washer – 16 Swivel Caster – 2 Ridged Caster – 2 WARNING Risk of injury to installers and users Read the entire assembly directions before beginning assembly.
- Page 2 ACENO Cart Swivel Casters Ridged Casters Assembly Gently place ACENO Cart on onside as shown above. (2 people required) Use a 5/32” Allen Key to attach the ¼-20 x 5/8” Screw with locker washer (4 each per caster) Attach Ridged casters to the open front section of the cart.
