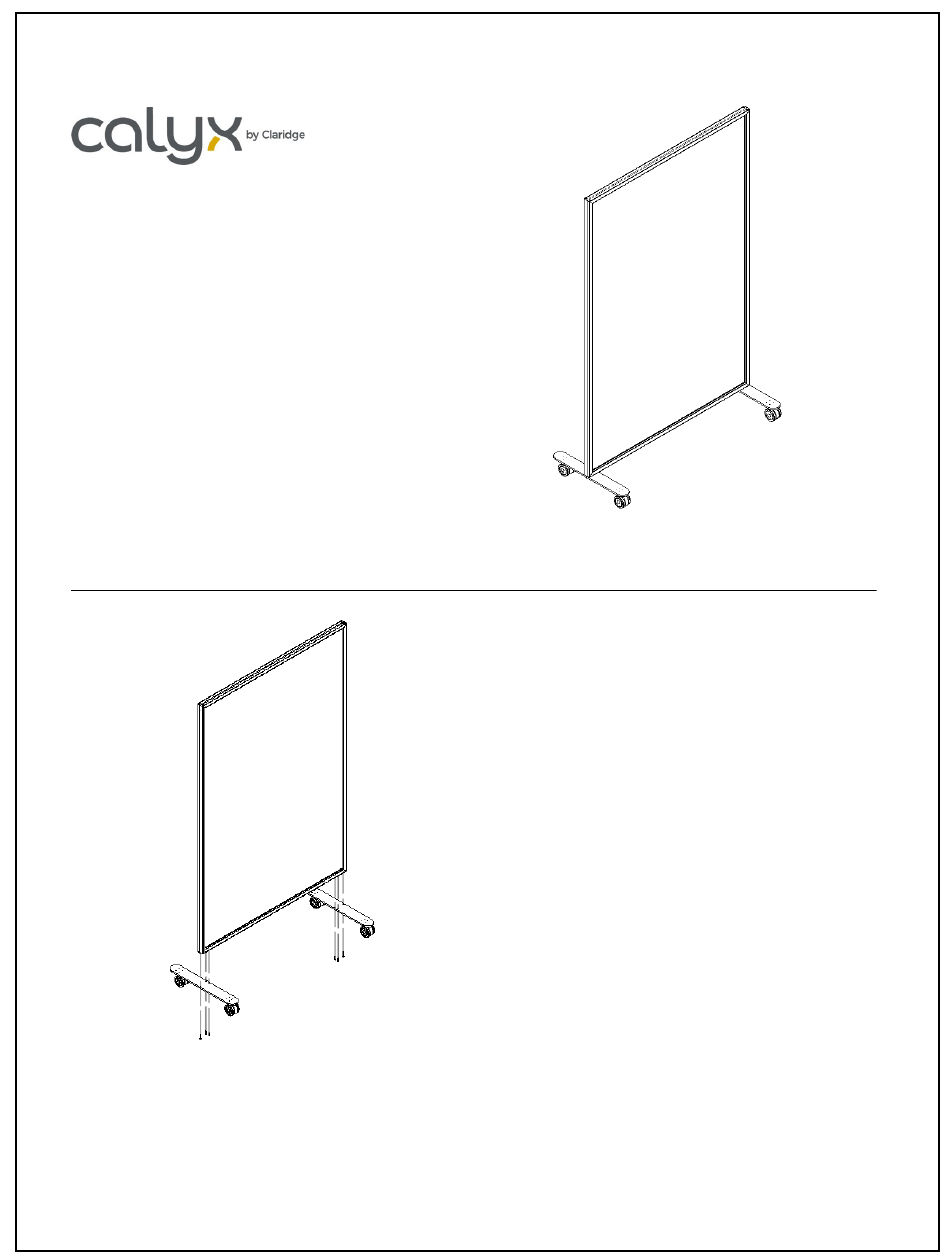

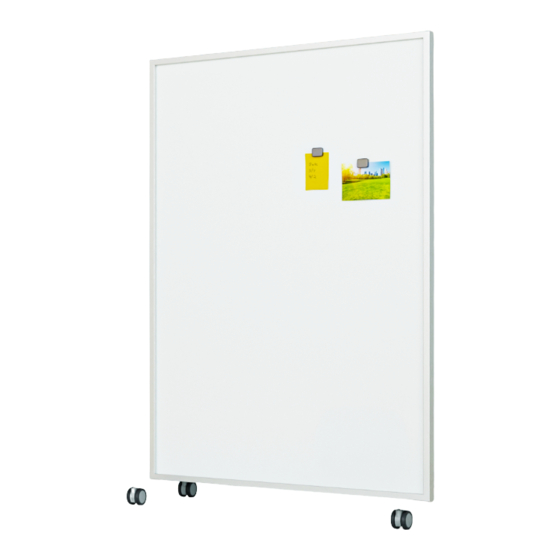

Contio
Mobile Board
ASSEMBLY INSTRUCTIONS
WARNING
Risk of injury to installers and users
Read the entire assembly directions before
beginning assembly.
PACKAGE CONTENTS
1 - Contio Framed Board
2 - Base with Casters (x2)
3 - #8 x 1" Screws (x4)
4 - 5/16-18 x 1 ¼" BH Screws (x2)
Advertisement
Table of Contents
Related Manuals for Claridge Calyx Contio
Summary of Contents for Claridge Calyx Contio
- Page 1 Contio Mobile Board ASSEMBLY INSTRUCTIONS PACKAGE CONTENTS 1 - Contio Framed Board 2 - Base with Casters (x2) 3 - #8 x 1” Screws (x4) 4 - 5/16-18 x 1 ¼” BH Screws (x2) WARNING Risk of injury to installers and users Read the entire assembly directions before beginning assembly.
- Page 2 Contio Mobile Board ASSEMBLY of Casters to base 1. Lay base feet out with the stems up and hole positioned as shown. 2. Snap Casters onto stems making sure the locking and non-locking casters are on the same side. Non-Locking Caster Locking Caster side side ASSEMBLY of Bases to framed board...
