(Birch - sku# 94500982) (Oak - sku# 94500983).
Compatibility
•
4327 EG Fireplaces
•
4035 - Fire Garden Outdoor Traditional Fireplace
Packing List
•
9 Piece Log Set
Installation Warnings
NOTE: Consult the installation manual for order of installation. If using propane (LP), convert the appliance
before installing the log set. If using firebacks, install them prior to installing the log set.
•
The logs are fragile, especially after being exposed to heat.
•
Make sure the gas control valve is OFF and the heater is cool prior to conducting service.
•
Failure to position the parts in accordance with these diagrams or failure to use only parts specifically
approved with this appliance may result in property damage or personal injury.
•
The burner must be correctly positioned before installing the log set. Make sure the burner is fully seated and
the pilot is properly aligned. See owner's manual for details on burner removal.
Installation – Oak vs. Birch
Both log sets are nearly identical in shape. The only difference is the paint scheme and some textural details.
Below you will find pictures of both the birch and the oak log sets. The installation pictures show the oak log
set.

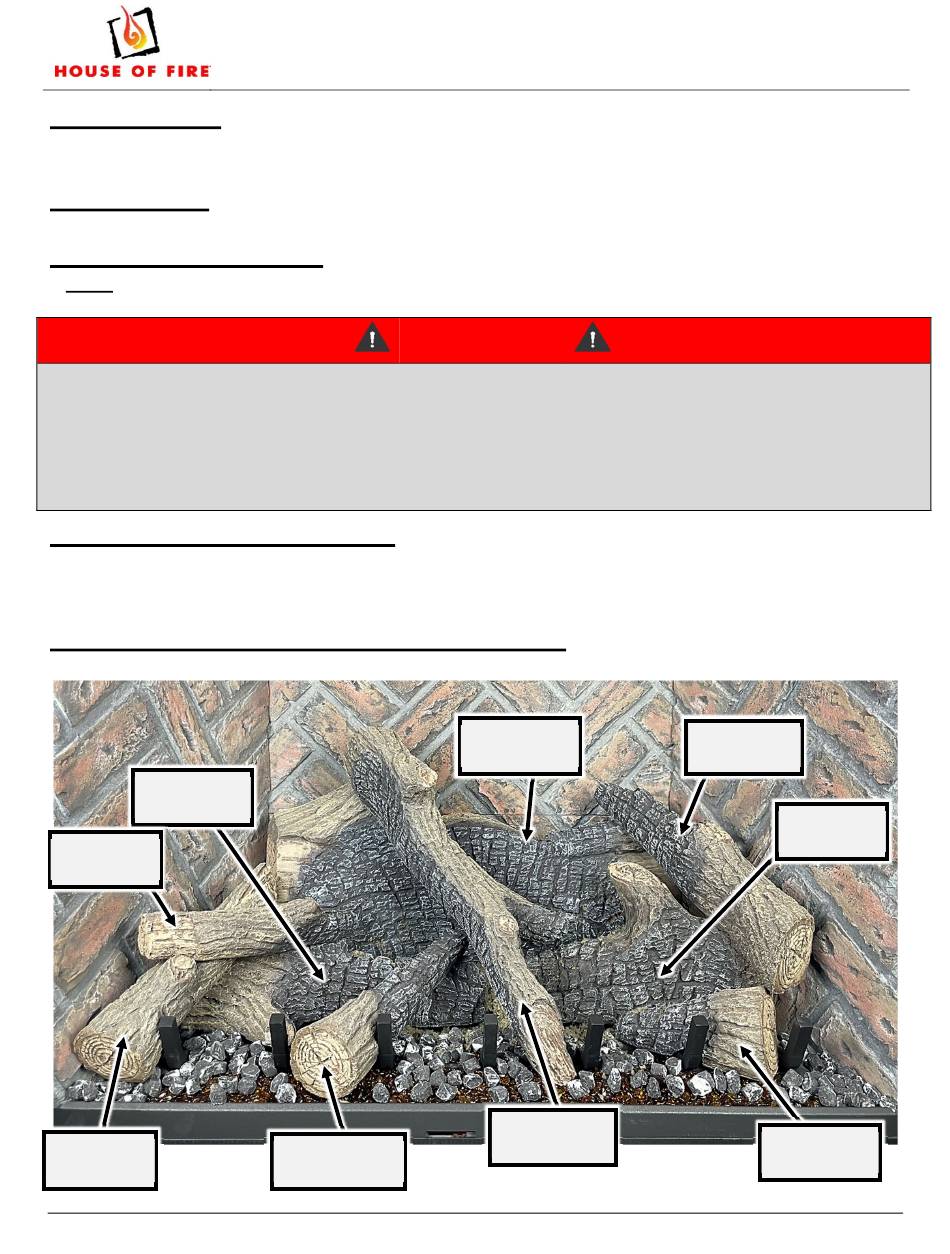

Log Set Overview - Oak (sku# 94500983)
When installed, the nine (9) logs should appear as shown below.
Log #2
250-05841
Log #6
250-05845
Log #5
250-05844
Page 1 of 10
4237 EG/4035 - Oak & Birch Log Set
WARNING
Log #8
250-05847
17602208 —3/14/2024
Log #1
250-05840
Log #9
250-05848
Log #7
250-05846
Log #3
250-05842
Log #4
250-05843
© Travis Industries, Inc.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Travis Industries 4237 EG/4035
Summary of Contents for Travis Industries 4237 EG/4035
- Page 1 4237 EG/4035 - Oak & Birch Log Set (Birch - sku# 94500982) (Oak - sku# 94500983). Compatibility • 4327 EG Fireplaces • 4035 - Fire Garden Outdoor Traditional Fireplace Packing List • 9 Piece Log Set Installation Warnings NOTE: Consult the installation manual for order of installation. If using propane (LP), convert the appliance before installing the log set.
- Page 2 4237 EG/4035 - Oak & Birch Log Set (Birch - sku# 94500982) (Oak - sku# 94500983). Log Set Overview - Birch (sku# 94500982) When installed, the nine (9) logs should appear as shown below. Log #1 Log #7 250-05824 250-05830...
-
Page 3: Log Set Installation
4237 EG/4035 - Oak & Birch Log Set (Birch - sku# 94500982) (Oak - sku# 94500983). Log Set Installation The logs are fragile, especially after exposure to heat. NOTE: The fireplace should be in place, with the gas line and vent attached and the firebacks installed (see owner’s manual for further details). - Page 4 4237 EG/4035 - Oak & Birch Log Set (Birch - sku# 94500982) (Oak - sku# 94500983). • Once the ember glass installation is complete, place a generous amount of ember material on the firebox floor on either side of the firebox (make sure to cover the gap between the fireback and the media tray). Completely cover any visible metal of the media tray (not the burner).
- Page 5 4237 EG/4035 - Oak & Birch Log Set (Birch - sku# 94500982) (Oak - sku# 94500983). • Place log #2 on the front burner. The notch on the bottom left of the log rests on the grate. The hole on the right end of the log rests on the locating pin just left of the center of the burner. Push the log backward until it is in contact with the rear burner.
- Page 6 4237 EG/4035 - Oak & Birch Log Set (Birch - sku# 94500982) (Oak - sku# 94500983). 4035 Outdoor Traditional ONLY Detail the burner with ember chunks (included with the fireplace). The included ember chunks are placed on top of the burner to provide a realistic ember glow on the burner.
- Page 7 4237 EG/4035 - Oak & Birch Log Set (Birch - sku# 94500982) (Oak - sku# 94500983). • Place log #5 as shown below. There is a notch on the lower right of the log that rests against the leftmost fireplace grate finger. The upper portion of the log rests on a flat spot on the top of log •...
- Page 8 4237 EG/4035 - Oak & Birch Log Set (Birch - sku# 94500982) (Oak - sku# 94500983). • Place ember chunks (included with the fireplace) along the front of the front burner. Do not obstruct any burner holes. 4237 EG ONLY •...
- Page 9 4237 EG/4035 - Oak & Birch Log Set (Birch - sku# 94500982) (Oak - sku# 94500983). • Place log #7 as shown below. There is a hole on the charred end of the log that rests on a locating pin on the right end of log #1(see below).
- Page 10 4237 EG/4035 - Oak & Birch Log Set (Birch - sku# 94500982) (Oak - sku# 94500983). • Place log #9 as shown below. There is a hole on the thicker end of log #9 that rests on the left locating pin on log #1 (see below).
