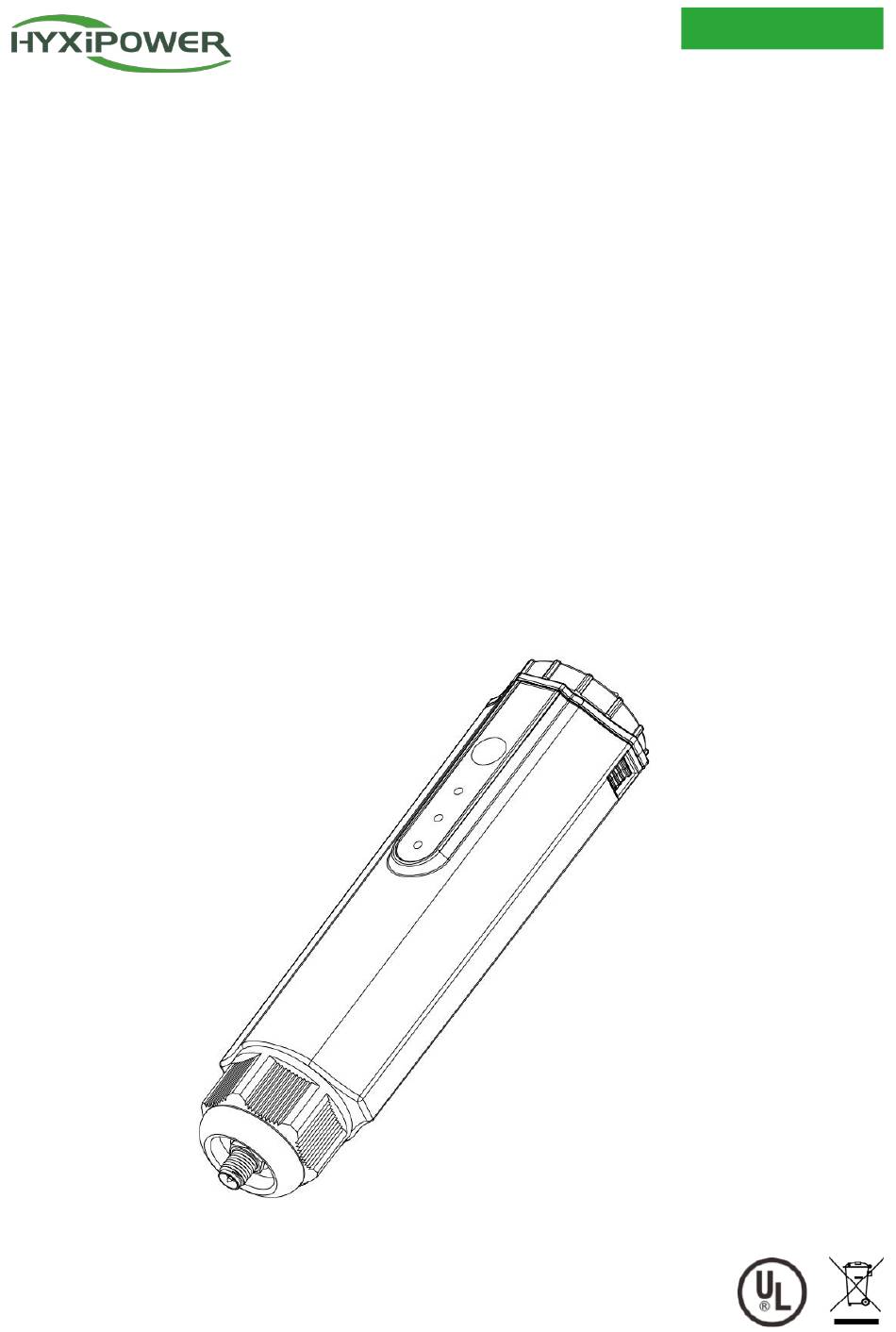

- Page 1 User Manual HYX-DCS-WL/4G-A DATA COMMUNICATION STICK Carefully read this inverter user instructions before using. Read and save these instructions.
- Page 2 ZHEJIANG HYXI TECHNOLOGY CO., LTD (hereinafter referred to as "HYXIPOWER"). TRADEMARKS and other HYXIPOWER trademarks are the trademarks or registered trademarks of HYXIPOWER All other trademarks mentioned herein are the properties of their respective owners.
-
Page 3: Table Of Contents
User Manual Contents HYX-DCS-WL/4G-A CONTENTS 1. Safety Instructions ........................1 2. Product Introduction ....................2 2.1 Product Description ............................ 2 2.1.1 Product Highlights ............................ 2 2.2 Appearance Introduction .......................... 2 2.2.1 Introduction of Indicator Lights and Key Functions ................. 3 2.3 Network Application .......................... -
Page 4: Safety Instructions
User Manual HYX-DCS-WL/4G 1. Safety Instructions 1. Safety Instructions In order to ensure the safety of the user's person and property when using the product and to use the product more efficiently and optimally, the manual provides relevant, the following symbols are used to highlight the information. -
Page 5: Product Introduction
2. Product Introduction 2.1 Product Description • HYXIPOWER Data communication stick（DCS）is equipped with HYXIPOWER inverter for use, and the inverter's power generation data is transmitted to HYXIPOWER monitoring platform through WiFi, Ethernet, and 4G.HYXIPOWER DCS comes in two versions: WLAN and 4G. -
Page 6: Introduction Of Indicator Lights And Key Functions
User Manual HYX-DCS-WL/4G 2. Product Introduction 补一张天线的图 2.2.1 Introduction of Indicator Lights and Key Functions Indicator Status Description Power ON POWER Power OFF Solid Green Connected to the server Flashing Connecting to the server Disconnected from the server Solid Green Normal communication with inverter COM. -
Page 7: Installation
User Manual 3. Installation HYX-DCS-WL/4G-A 3. Installation 3.1 Install the smart communication stick (WIFI module) • Step 1: Insert DCS into the DONGLE terminal and tighten it to ensure it is secure • Step 2: Connecting the tail end of the DCS to the head of the antenna. Install the smart communication stick (4G module) •... -
Page 8: Human-Computer Interaction
Scan the following QR code to download and install the App according to the prompt information: 4.2 APP User manual For more information on using the HYXiPower APP, please refer to the user manual "HYXiPower APP". 4.3 System debugging For system configuration and debugging, please refer to the user manual "HYXipower Local... -
Page 9: Troubleshooting
User Manual HYX-DCS-WL/4G 5. Troubleshooting 5. Troubleshooting Code Description Solution 1. Check and confirm that the inverter is powered on and running, the WiFi module is firmly installed, and the power light is on. Unable to search for 2、Try to move your smartphone close to the inverter to WiFi signal confirm whether the signal can be successfully searched, signal can be successfully searched. -
Page 10: Appendix
User 6. Appendix HYX-DCS-WL/4G-A Manual 6. Appendix 6.1 Technical Parameter HYX-DCS-WL-A HYX-DCS-4G-A Product Model General Data Data Acquisition Interval 5 mins Connection interface Installation 10M / 100M Ethernet Enthernet Interface Plug-and-play Plug-and-play Indicator Dimensions (W*H*D) 153.5*41*33.6 Weight 72.5g Enclosure Rating... -
Page 11: Contact Information
User 6. Appendix HYX-DCS-WL/4G-A Manual 6.2 Contact Information If you have any questions about this product, please contact us. In order to provide you with faster and better after-sales service, we need your assistance in providing the following information. • Equipment model： •... - Page 12 Version: UM_HYX-DCS-4G(WL)-A_V1.0-202411_EN The manual is subject to change without notice while the product is being improved. Zhejiang Hyxi Technology Co., Ltd. Room 216, Block A, Building 1, No. 57 Jiang'er Road, Changhe Street, Binjiang District, Hangzhou, Zhejiang Province, China www.hyxipower.com support@hyxipower.com...
